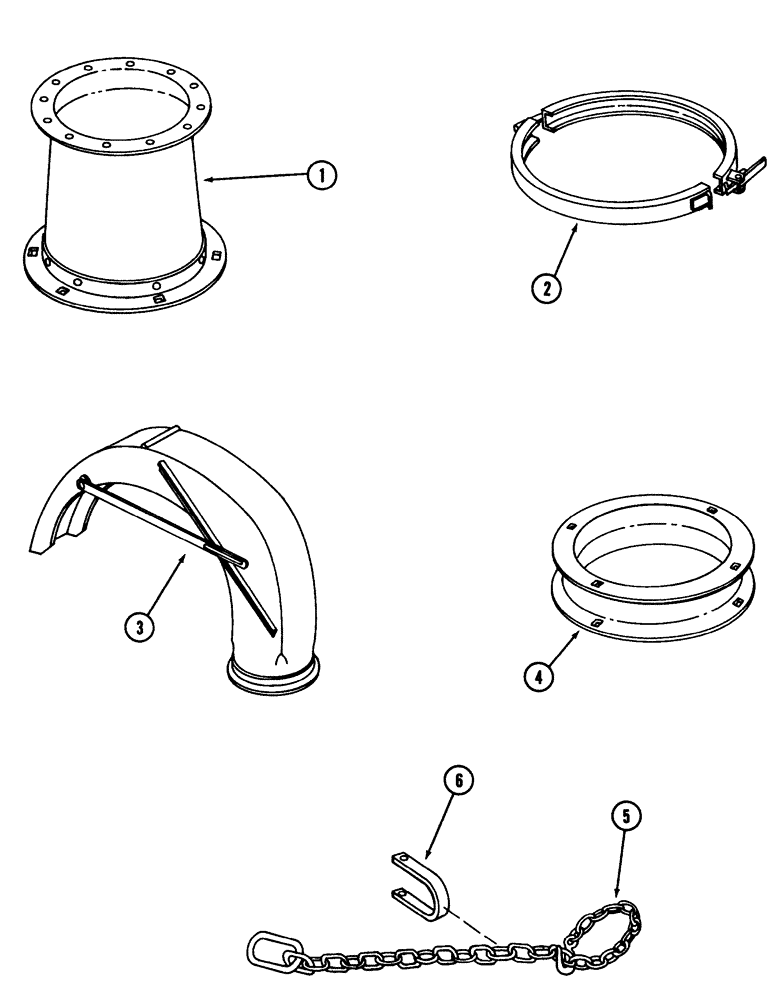

Запчасти Case IH 600 (9-54[02]) - ATTACHMENTS, 56 BLOWER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

PIPE - reducer, blower section, order from the Machinery Price List

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

2

NSS

NOT SOLD SEPARAT

CLAMP - blower pipe, order from the Machinery Price List

1шт.

ref 2 ....IF YOU CAN NOT GET AS MACHINE ATTACHMENT, DEALER CAN ORDER FROM LANCASTER LEVEL FLO, PH NUMBER 608 876 6146.

1шт.

3

NSS

NOT SOLD SEPARAT

ELBOW - silage, order from the Machinery Price List

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - flange pipe, order from the Machine Price List

1шт.

5

100682C3

CHAIN (AG)

CHAIN - hitch, 5/16 link x 59-1/4 inch, retaining, order from the Machinery Price List

1шт.

61913C92

PACKAGE

KIT - clevis, chain hardware, not shown

1шт.

6

148558C1

CLEVIS

- chain

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

231-14010

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 11/64 inch

1шт.

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

WE DO NOT SERVICE THESE THROUGH SERVICE PARTS.

1шт.
