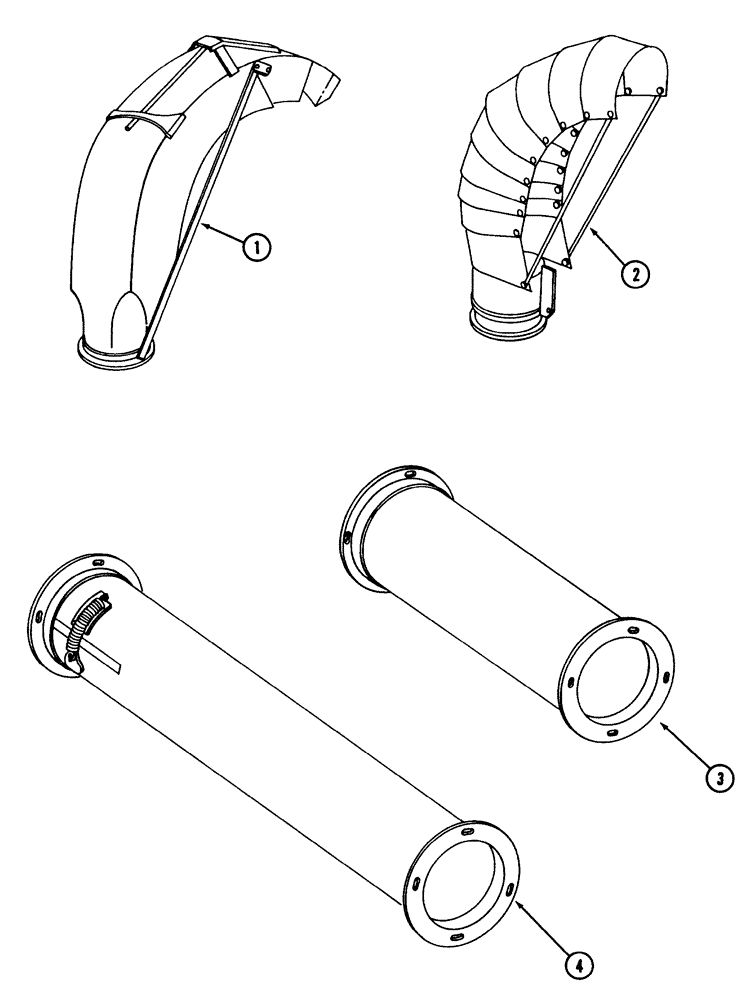

Запчасти Case IH 600 (9-54[01]) - ATTACHMENTS, 56 BLOWER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

DIVIDER - silage, order from the Machinery Price List

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

2

NSS

NOT SOLD SEPARAT

DEFLECTOR - swivel hay, order from the Machinery Price List

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

3

NSS

NOT SOLD SEPARAT

PIPE ASSEMBLY - blower, 2, 4, or 7 foot, order from the Machinery Price List

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

4

NSS

NOT SOLD SEPARAT

PIPE ASSEMBLY - telescoping blower, 2, 4, or 7 foot, order from the Machinery Price List

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
