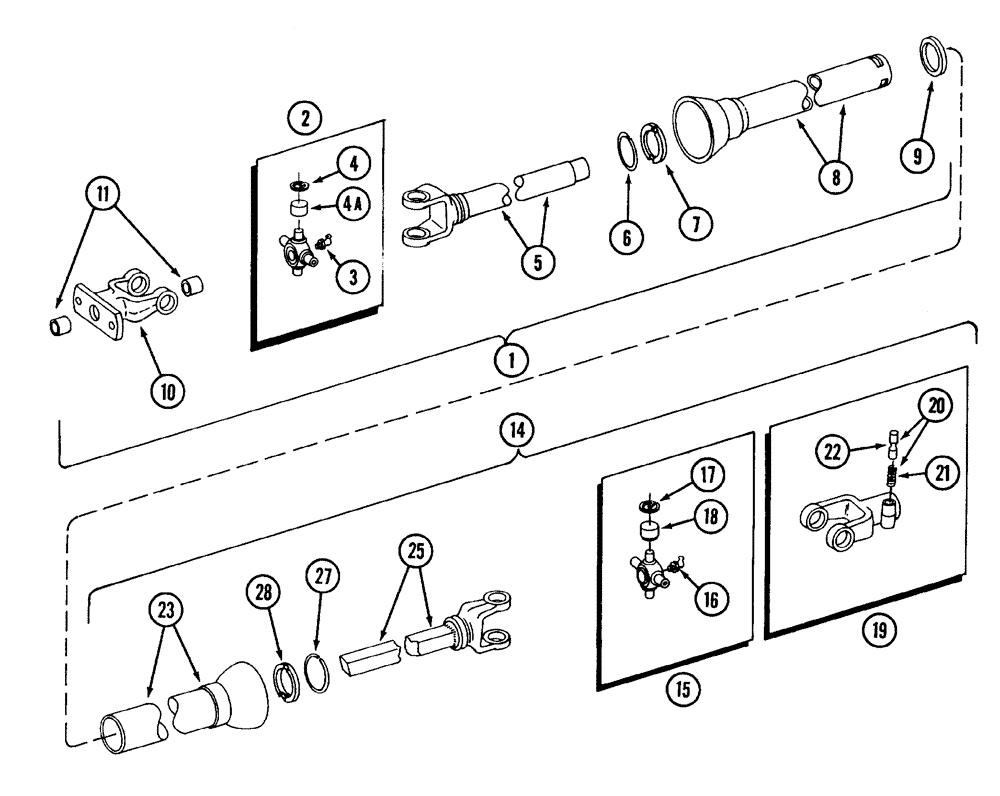

Запчасти Case IH 600 (9-46[02]) - IMPLEMENT INPUT DRIVE, HEAVY DUTY WEASLER, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

1253352C91

JOINT

ASSEMBLY - implement end, replaces 1253352C91 joint, prior to P.I.N. CCD0007749

1шт.

1

104923A1

JOINT

ASSEMBLY - implement end, P.I.N. CCD0007749 and after

1шт.

2

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT - center cross

2шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

1шт.

4

470081R1

RING

- snap

4шт.

4a

NSS

NOT SOLD SEPARAT

CUP - cross no longer available, order 470077R91 kit

4шт.

5

105808A1

YOKE

- with tube, replaces 76826C1 yoke

1шт.

6

597559R1

RETAINER

RING - retaining

1шт.

7

700712761

SHIELD

KIT - bearing, shield

1шт.

8

76825C1

SHIELD

- yoke, main drive

1шт.

9

597568R1

SUPPORT

- shield

1шт.

10

146256C91

YOKE

- flanged

1шт.

11

146257C1

BUSHING

- flanged yoke

2шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, not shown

1шт.

13

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, not shown

1шт.

14

76820C93

JOINT

ASSEMBLY - tractor end, prior to P.I.N. CCD0007749

1шт.

14

104922A1

JOINT

ASSEMBLY - tractor end, replaces 76820C92 joint and 76820C93 joint, P.I.N. CCD0007749 and after

1шт.

15

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT - center cross

2шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

1шт.

17

470081R1

RING

- snap

4шт.

18

NSS

NOT SOLD SEPARAT

CUP - cross no longer available, order 470077R91 kit

4шт.

19

105805A1

YOKE

ASSEMBLY - quick detachable, replaces 470090R11 yoke

1шт.

20

105806A1

KIT

- yoke repair

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - locking pin

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - yoke

1шт.

23

76822C2

SHIELD

- includes decal

1шт.

24

80672C1

DECAL

- Danger, rotating driveline, contact can cause death, not shown, see figure 9-60.02 for decal

1шт.

25

76824C2

YOKE

- with shaft, replaces 76824C1 yoke, prior to P.I.N. CCD0007749

1шт.

25

105807A1

YOKE

- with shaft, P.I.N. CCD0007749 and after

1шт.

26

105855A1

RING

KIT - yoke repair, not shown

1шт.

27

597559R1

RETAINER

RING - retaining

1шт.

28

700712761

SHIELD

KIT - bearing, shield

1шт.
