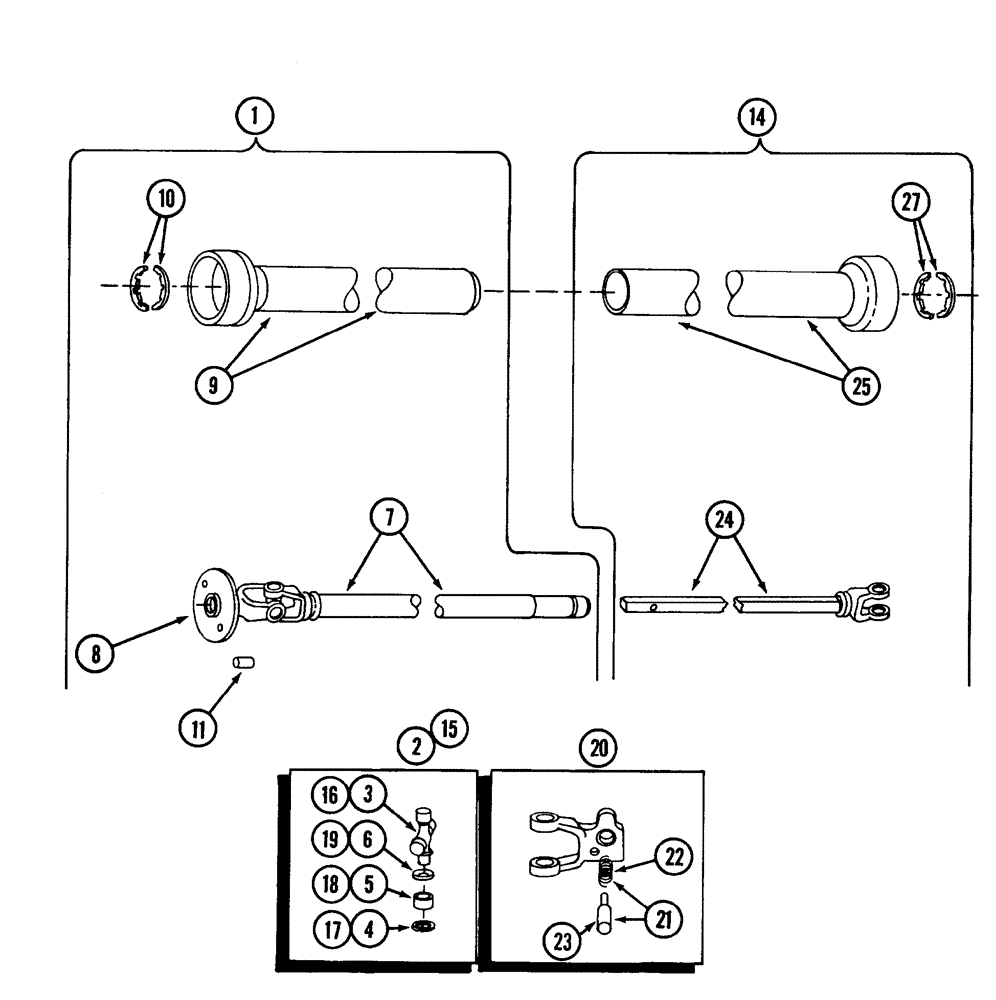

Запчасти Case IH 600 (9-46[01]) - IMPLEMENT INPUT DRIVE, HEAVY DUTY ROCKWELL, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

1253351C91

JOINT

ASSEMBLY - no longer available, see figure 9-46.02 and order item 1, 104923A1 joint, implement end, and item 14, 104922A1 joint, tractor end

1шт.

2

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT - center cross

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

1шт.

4

470081R1

RING

- snap

4шт.

5

NSS

NOT SOLD SEPARAT

CUP - cross no longer available, order 470077R91 kit

4шт.

6

470080R1

OIL SEAL

WASHER - no longer available, order 470077R91 kit

4шт.

7

483608R1

YOKE

- with tube

1шт.

8

146256C91

YOKE

- flanged

1шт.

9

60287C91

SHIELD

- inner

1шт.

10

493848R1

BEARING HALF

- nylon, shield

2шт.

11

146257C1

BUSHING

- flanged yoke

2шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, not shown

1шт.

13

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, not shown

1шт.

14

483419R92

JOINT

ASSEMBLY - implement input drive

1шт.

15

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT - center cross

1шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

1шт.

17

470081R1

RING

- snap, no longer available, order 470077R91 kit

4шт.

18

NSS

NOT SOLD SEPARAT

CUP - cross no longer available, order 470077R91 kit

4шт.

19

470080R1

OIL SEAL

WASHER - kit - center cross

4шт.

20

105805A1

YOKE

ASSEMBLY - quick detachable, replaces 470090R91 yoke

1шт.

21

105806A1

KIT

- yoke repair

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - locking pin yoke

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - yoke

1шт.

24

408606R91

YOKE - with shaft, no longer available, see figure 9-46.02 and order item 1, 104923A1 joint, implement end, and item 14, 104922A1 joint, tractor end

1шт.

25

60288C92

SHIELD

- outer, includes decal

1шт.

26

80672C1

DECAL

- Danger, rotating driveline, contact can cause death, not shown, see figure 9-60.02 for decal

1шт.

27

493848R1

BEARING HALF

- nylon

2шт.
