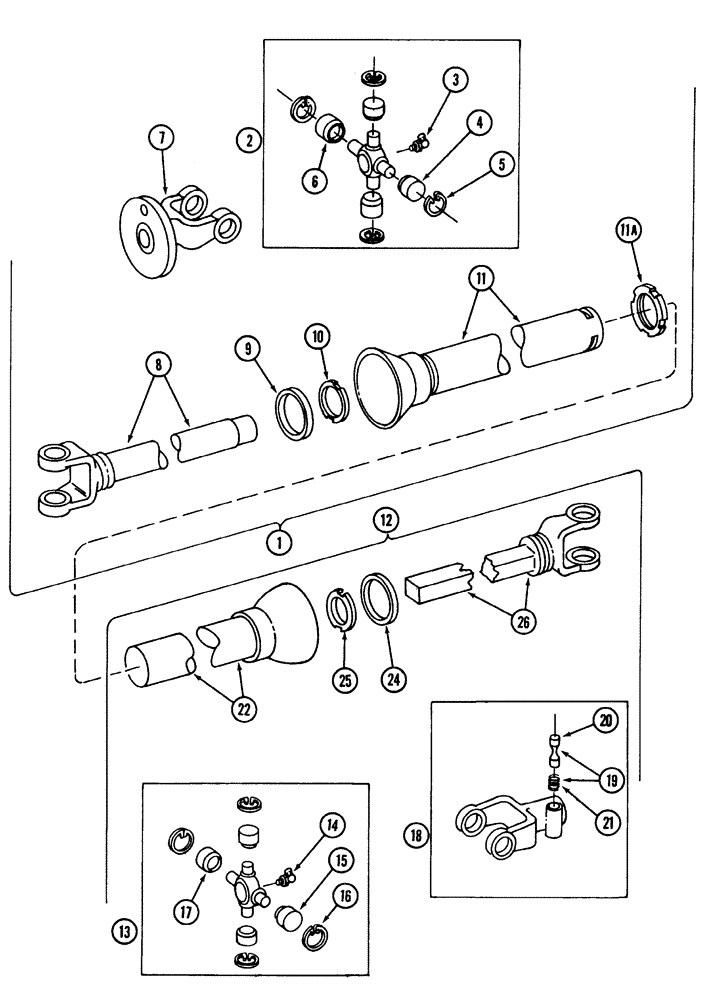

Запчасти Case IH 600 (9-42[03]) - IMPLEMENT INPUT DRIVE, HEAVY DUTY WEASLER, 56 BLOWER (09) - CHASSIS/ATTACHMENTS

1

76821C91

JOINT

ASSEMBLY - implement end

1шт.

2

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT - center cross

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

1шт.

4

470080R1

OIL SEAL

WASHER - cup

4шт.

5

NSS

NOT SOLD SEPARAT

CUP - cross no longer available, order 470077R91 kit

4шт.

6

470081R1

RING

- snap

4шт.

7

483610R91

YOKE

- flanged

1шт.

8

105808A1

YOKE

- with tube, replaces 76826C1 yoke

1шт.

9

597559R1

RETAINER

RING - retaining

1шт.

10

700712761

SHIELD

KIT - bearing, shield

1шт.

11

76825C1

SHIELD

- yoke

1шт.

11a

597568R1

SUPPORT

- shield

1шт.

12

76820C93

JOINT

ASSEMBLY - tractor end, replaces 76820C92 joint

1шт.

13

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT - center cross

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

2шт.

15

NSS

NOT SOLD SEPARAT

CUP - cross no longer available, order 470077R91 kit

8шт.

16

470081R1

RING

- snap

8шт.

17

470080R1

OIL SEAL

WASHER - cup

4шт.

18

105805A1

YOKE

ASSEMBLY - quick detachable, replaces 470090R11 yoke

1шт.

19

105806A1

KIT

- yoke repair

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - yoke

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - locking pin

1шт.

22

76822C2

SHIELD

- includes decal

1шт.

23

80672C1

DECAL

- Danger, rotating driveline, contact can cause death, not shown, see page 9-61 for decal

1шт.

24

597559R1

RETAINER

RING - retaining

1шт.

25

76823C1

RING

- bearing, nylon

1шт.

26

76824C2

YOKE

- with shaft, replaces 76824C1 yoke

1шт.
