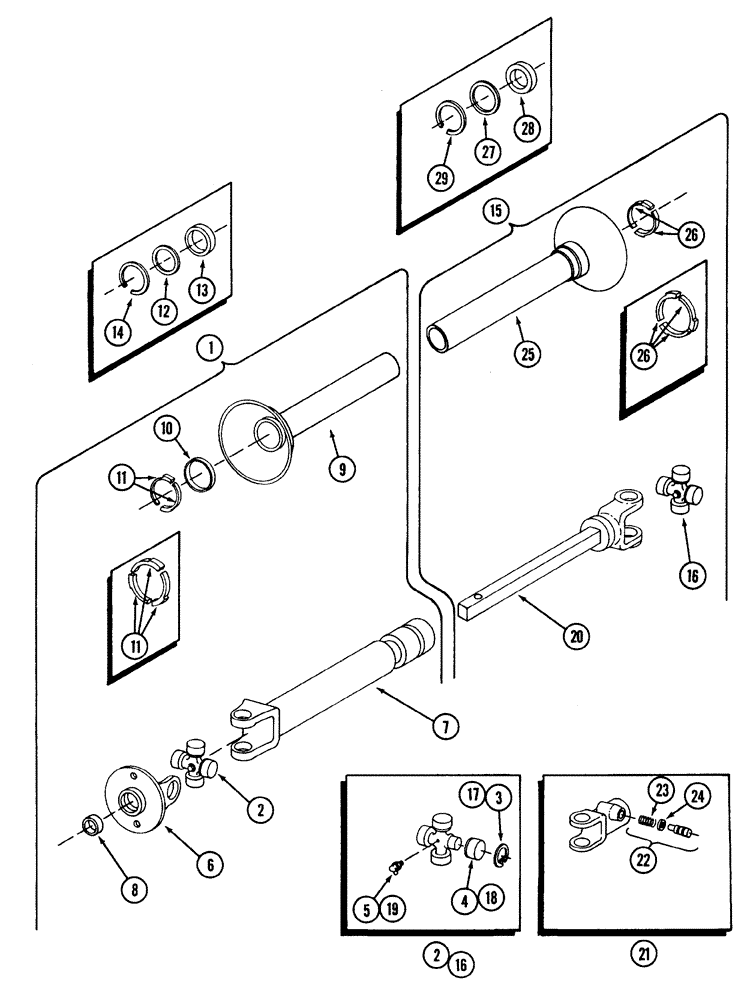

Запчасти Case IH 600 (9-42[01]) - IMPLEMENT INPUT DRIVE, STANDARD DUTY ROCKWELL, 56 BLOWER (09) - CHASSIS/ATTACHMENTS

1

483344R92

JOINT

- implement end, single universal shielded, rear half

1шт.

2

845198

KIT

- cross, replaces 347960R91 yoke and 660116R91 cross, replaces 174980C91 kit

1шт.

3

495962R1

RING

- snap

4шт.

4

NSS

NOT SOLD SEPARAT

CUP - cross order item 2, 845198 kit

4шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

6

60802C91

YOKE

- flanged, S/N 12305 and after

1шт.

6

469605R11

YOKE

- flanged, prior to S/N 12305

1шт.

7

483348R92

YOKE

- with tube

1шт.

8

469610R1

BUSHING

- flanged yoke

1шт.

9

483347R2

SHIELD

- inner

1шт.

10

58697C1

SHIELD

BUSHING - shield support, nylon, used with plastic shields

1шт.

10

754317

NYLON BEARING

SPACER - nylon, used with steel shields

1шт.

11

549626R1

BEARING

- shield, nylon, S/N 12305 and after, if used

2шт.

11

542956R1

NYLON BEARING,0.312"

- segment, nylon, S/N 12305 and after, if used

3шт.

12

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust, prior to S/N 12305

2шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon, prior to S/N 12305

2шт.

14

613436R1

CLAMP

RING - retaining, prior to S/N 12305

2шт.

15

483343R92

JOINT

- tractor end, single universal shielded, front half

1шт.

16

845198

KIT

- cross, replaces 347960R91 yoke and 660116R91 cross, replaces 174980C91 kit

1шт.

17

495962R1

RING

- snap

4шт.

18

NSS

NOT SOLD SEPARAT

CUP - cross order item 16, 845198 kit

4шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

20

60803C1

YOKE

- with shaft, S/N 12305 and after

1шт.

20

483346R91

YOKE

- with shaft, prior to S/N 12305

1шт.

21

8803645

FORK

YOKE - quick detachable, replaces 660484R21 yoke

1шт.

22

455346R21

PIN

ASSEMBLY - yoke

1шт.

23

455347R1

VALVE SPRING

SPRING - locking pin

1шт.

24

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- locking

1шт.

25

483345R2

SHIELD

- outer

1шт.

26

549626R1

BEARING

- shield, S/N 12305 and after, if used

2шт.

26

542956R1

NYLON BEARING,0.312"

- segment, nylon, S/N 12305 and after, if used

3шт.

27

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust, prior to S/N 12305

2шт.

28

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon, prior to S/N 12305

2шт.

29

613436R1

CLAMP

RING - retaining, prior to S/N 12305

2шт.
