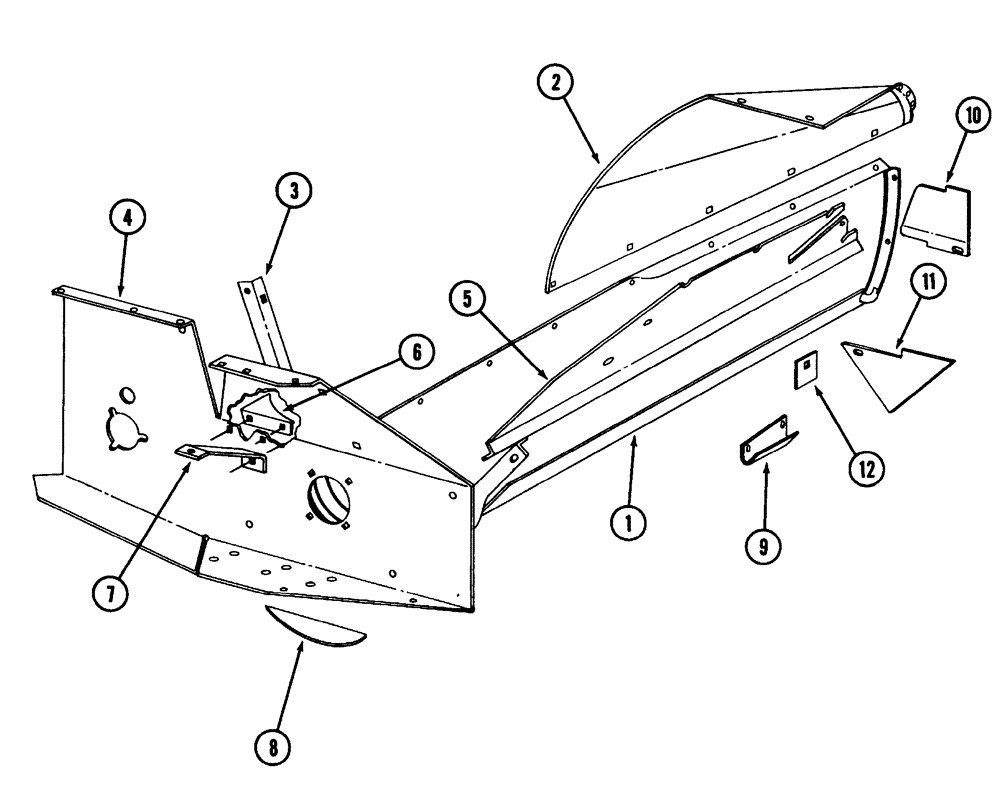

Запчасти Case IH 600 (9-36) - AUGER TROUGH AND SUPPORTS, 600 BLOWERS AUGER TROUGH & SUPPORT (09) - CHASSIS/ATTACHMENTS

1

135231C1

SUPPORT

- lower, inlet

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

3шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

231-5146

FLANGE NUT,3/8"-16

3шт.

2

146117C1

SUPPORT

- upper, inlet

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

231-5146

FLANGE NUT,3/8"-16

3шт.

3

135230C1

SUPPORT

- outer

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

231-5146

FLANGE NUT,3/8"-16

5шт.

4

146143C1

SUPPORT

- hopper end

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

5шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

5

1253621C1

SUPPORT

- stripper

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

424-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

- hex, 5/16 NC x 1/2 inch, grade 2

7шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

6

1253625C1

SUPPORT

- filler

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

7

148255C1

SUPPORT

- bumper

1шт.

8

1265728C1

SUPPORT

SHEET - trough filler

1шт.

9

1265729C1

SUPPORT

- hopper

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

10

1254080C1

PLATE

- filler, upper

1шт.

11

1281074C1

PLATE

- filler, lower

1шт.

12

142914A1

STRIP

PLATE - filler

1шт.
