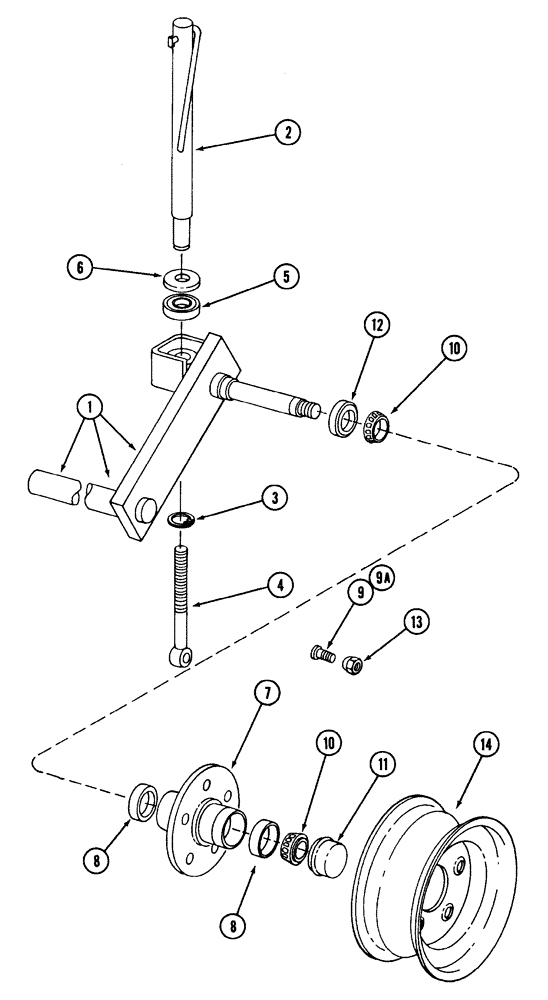

Запчасти Case IH 600 (9-34) - WHEELS, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

1256668C91

AXLE

- wheel

2шт.

495-81217

WASHER,1.41" ID x 2.25" OD x 0.14" Thk

- flat, 1-13/32 x 2-1/4 x 5/32 inch

5шт.

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

- flat, 1-13/32 x 2-1/4 x 3/64 inch

4шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

95-81024

WASHER,0.78" ID x 1.5" OD x 0.12" Thk

- flat, 25/32 x 1-1/2 x 1/8 inch

2шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

2шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2", Wheel

2шт.

2

1253369C1

CRANK

- wheel

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

3

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

4

146094C1

EYE

BOLT - right-hand threads

2шт.

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - carriage, 5/8 NC x 2 inch

2шт.

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

5

146095C91

THRUST BEARING

BEARING - thrust

2шт.

6

1253353C1

CUP WASHER

- cupped

2шт.

7

109086A1

HUB

- wheel, replaces 1256672C1 hub

2шт.

8

572564R1

BEARING CUP

CUP - tapered roller bearing

4шт.

9

74770C1

BOLT,1/2" - 20 x 1 1/4", Grade 5

- wheel hub, 1/2-20 UNF-2A, prior to P.I.N. CCD0007973

10шт.

9a

109087A1

WHEEL BOLT

BOLT - wheel hub, P.I.N. CCD0007973 and after

10шт.

10

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - tapered roller bearing, replaces 463911R91 cone

4шт.

11

74771C1

CAP

- hub

2шт.

12

811011C1

SEAL

- wheel

2шт.

13

26294

NUT

- wheel mounting, 1/2-20 NF 60 degree

10шт.

14

1256673C1

WHEEL

- axle

2шт.

1256693C1

VALVE

- rim

2шт.
