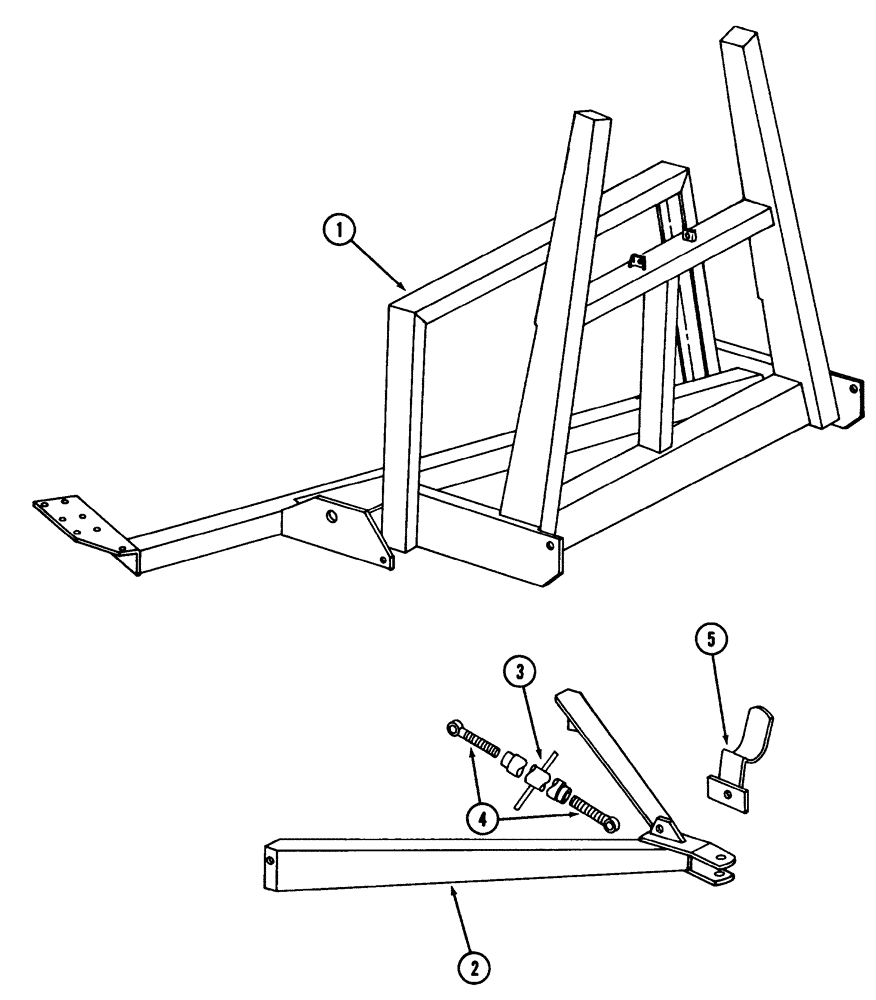

Запчасти Case IH 600 (9-32) - MAIN FRAME AND HITCH ASSEMBLY, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

1

135266C1

FRAME

- main

1шт.

635309R2

BOLT,Spcl Hex, 3/8" - 16 x 1 3/4"

- hex, 3/8 NC x 1-3/4 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

2

146097C1

TRAILER HITCH

HITCH - main frame

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

3

146088C1

CRANK

- leveling

1шт.

4

146093C1

EYE

BOLT - left-hand threads

1шт.

4

146094C1

EYE

BOLT - right-hand threads

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

5

114312A1

BRACKET

- shaft support

1шт.

6

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, not shown

1шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch, not shown

1шт.
