Запчасти Case IH 600 (9-30) - MAIN FRAME, HITCH AND TRANSPORT WHEELS, 56 BLOWERS MAIN FRAME, HITCH & TRANSPORT WHEELS (09) - CHASSIS/ATTACHMENTS

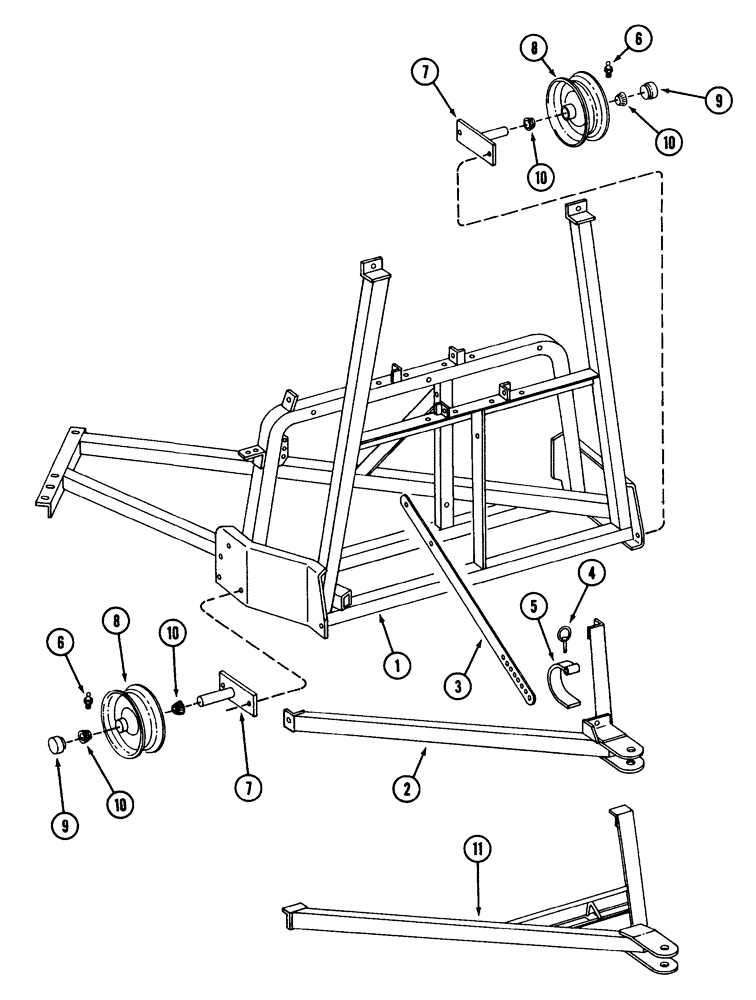

Схема запчастей Case IH 600 - (9-30) - MAIN FRAME, HITCH AND TRANSPORT WHEELS, 56 BLOWERS MAIN FRAME, HITCH & TRANSPORT WHEELS (09) - CHASSIS/ATTACHMENTS
9
9
11
7
6
10
2
7
3
1
4
10
10
10
8
8
5
6

Артикул

Название

Примечание

Количество

1

483380R92

FRAME

- main

1шт.

635309R2

BOLT,Spcl Hex, 3/8" - 16 x 1 3/4"

- hex, 3/8 NC x 1-3/4 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

2

60672C1

TOW BAR

TONGUE - hitch, S/N 12305 and after, no longer available

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

3

60470C1

BAR

- leveling strap, S/N 12305 and after

1шт.

3

483412R1

BAR

- leveling strap, prior to S/N 12305, no longer available

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

1шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock, klik

1шт.

5

483411R11

SPRING

- hitch

1шт.

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 3/8 inch

2шт.

7

483413R91

AXLE

- main frame

2шт.

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

4шт.

472323R1

WASHER

- flat, 1-5/32 x 1-5/8 x 1/16 inch

1шт.

95-81126

WASHER - flat, 1-1/4 x 1-3/4 x 7/64 inch

2шт.

462800R1

WASHER

- flat, 1 x 1-5/8 x 1/4 inch

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

Pin, 1/4" x 1 1/2", Slotted

2шт.

8

481891R91

WHEEL

- with bushing, 4.00 x 8 inch

2шт.

9

481189R1

CAP

- wheel hub

2шт.

10

481892R1

BUSHING

BEARING - wheel

4шт.

11

483404R91

TOW BAR

TONGUE - hitch, prior to S/N 12305, no longer available

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

Выбрано товаров: 32
