Запчасти Case IH 600 (9-24) - AUGER AND DRIVE, 600 BLOWER (09) - CHASSIS/ATTACHMENTS

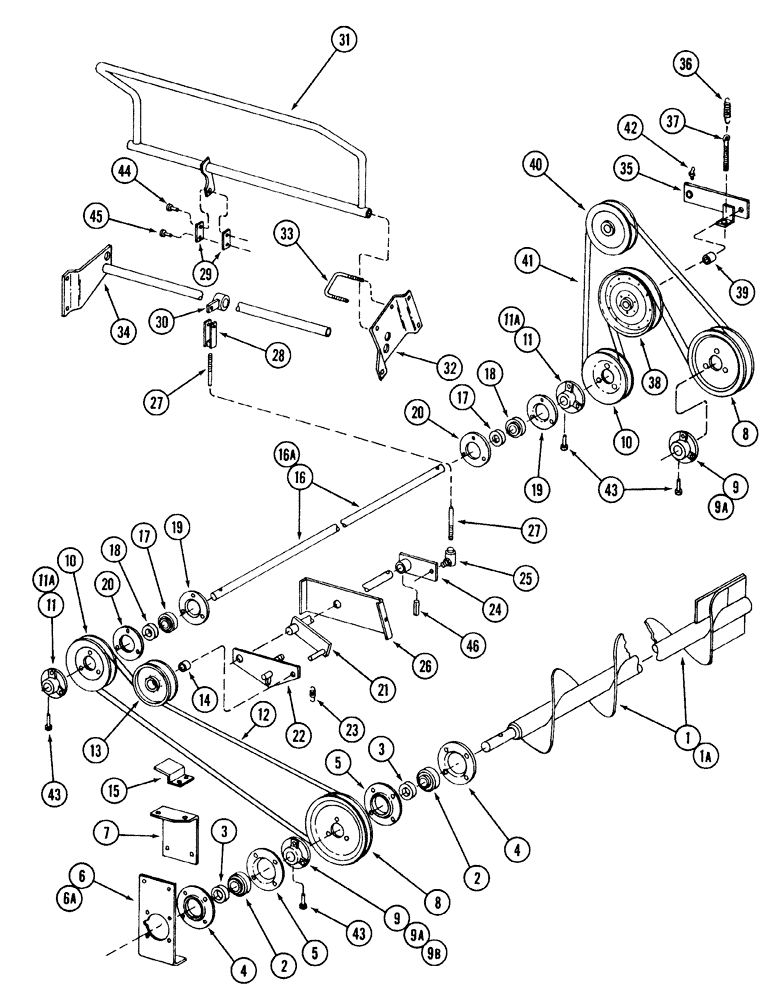

Схема запчастей Case IH 600 - (9-24) - AUGER AND DRIVE, 600 BLOWER (09) - CHASSIS/ATTACHMENTS
26
16
11
24
18
3
23
9b
16a
21
12
20
37
1
40
5
28
13
22
11a
38
9
17
5
20
29
2
43
33
6
19
25
31
15
34
45
43
8
32
4
18
35
30
43
19
7
46
14
6a
8
41
9a
44
27
1
11
27
9
39
1a
10
2
9a
3
42
11a
10
17
36

Артикул

Название

Примечание

Количество

1

1281299C1

AUGER

- drive, prior to P.I.N CCD0005457, no longer available, order item 1A, 1976586C1 auger, item 9B, 1978736C1 hub, and item 9C, key

1шт.

1a

1976586C1

AUGER

- drive, P.I.N. CCD0005457 and after

1шт.

2

478038R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

- drive

2шт.

3

455112R11

COLLAR

- locking, bearing, with set screw

2шт.

4

488454R1

FLANGED BEARING

- with lube fitting

2шт.

5

488455R1

FLANGE

- 0.149 inch, non re-lube

2шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

6

146099C1

SUPPORT

- auger, prior to P.I.N. CCD0005457

1шт.

6a

1980911C1

SUPPORT

- auger, P.I.N. CCD0005457 and after

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

1265726C1

SUPPORT

- upper bearing

1шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

148183C2

PULLEY

- driven, replaces 148183C1 pulley

2шт.

9

148181C1

HUB

- pulley, prior to P.I.N. CCD0005457

2шт.

9a

1976582C1

HUB

- keyed, 1-1/2 inch shaft, P.I.N. CCD0005457 and after

1шт.

9b

1978736C1

HUB

- pulley, P.I.N. CCD0005457 and after

1шт.

9c

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

5/16" x 2 1/8", HT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

10

148184C2

PULLEY

- auger

2шт.

11

148182C1

HUB

- pulley, prior to P.I.N. CCD0005457

2шт.

11a

1976583C1

HUB

- keyed, 1-1/8 inch shaft, P.I.N. CCD0005457 and after

2шт.

22775R1

PIN

- headed, 3/8 x 2-1/2 inch

3шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

231-5146

FLANGE NUT,3/8"-16

3шт.

12

486543R3

BELT,0.89" W

Auger drive, Replaces 486543R2 belt 0.89" W

1шт.

13

474052R91

PULLEY

IDLER - flat, 5-1/2 inch diameter

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

14

1265706C1

SPACER

- drive

1шт.

15

1256694C1

SUPPORT

- belt

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

16

148178C1

ROD

- auger drive, prior to P.I.N. CCD0005457

1шт.

16a

1976584C1

SHAFT

ROD - auger drive, P.I.N. CCD0005457 and after

1шт.

17

T33150

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

BEARING - ball, replaces T39475R92 bearing

2шт.

18

557115R11

COLLAR

COLLAR - locking, with set screw

2шт.

19

939460R91

FLANGE

- bearing, with lube fitting

2шт.

20

939461R1

FLANGE

- bearing, without lube fitting

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

21

148270C1

CONTROL

- idler

1шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

446283

WASHER

- flat, 1-3/16 x 2-1/2 x 1/8 inch

2шт.

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

22

1265701C91

ARM

- idler

1шт.

23

860060R1

SPRING

- auger

1шт.

24

148275C1

ARM

- control

1шт.

25

D149295

BALL JOINT,3/8"

JOINT - ball, 3/8 inch

1шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

26

1253321C1

SUPPORT

BRACKET - idler control

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

27

148267C1

ROD

- compression

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

28

1265708C1

YOKE

- auger

1шт.

29

1265711C1

BAR

- auger

2шт.

30

1265712C1

NUT

ARM - control

1шт.

31

148268C1

HANDLE

- auger control

1шт.

23474R1

HEADED PIN,7/8" x 3 3/4"

PIN - cotter, 7/8 x 2-3/4 inch

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

32

148260C1

SUPPORT

- inner handle

1шт.

231-5146

FLANGE NUT,3/8"-16

3шт.

33

1253415C1

U-BOLT,3/8" - 16 x 100mm W x 68mm L

- auger

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

34

1265715C1

TUBE,188, 44 mm Length

- pivot

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

35

148197C1

ARM

- idler

1шт.

495-11081

WASHER,3/4", SAE

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

36

533355R1

VALVE SPRING

SPRING - auger

1шт.

37

1265705C1

BOLT

EYEBOLT - auger

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

38

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- belt idler, 8-3/4 inch OD, flat

1шт.

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

39

320993R1

SPACER,7/8" Tube x 1/2"

- 7/8 x 1/2 inch

1шт.

40

824960C91

PULLEY

- V-belt idler

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

41

1253324C2

V-BELT,2290.00 mm L

Jackshaft Drive 2290.00 mm L

1шт.

42

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

1шт.

43

427-6250

CLEVIS PIN,3/8" x 2 1/2"

PIN - clevis, 3/8 x 2-1/2 inch, hardened

4шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

44

439-1816

HEADED PIN,1/2" x 1"

PIN - headed, 1/2 x 1 inch, grade 2

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

45

439-1824

HEADED PIN,1/2" x 1 1/2", G2

PIN - headed, 1/2 x 1-1/2 inch, grade 2

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

46

38-31232

PIN,4.75mm OD x 50.8mm L

1шт.

Выбрано товаров: 107
