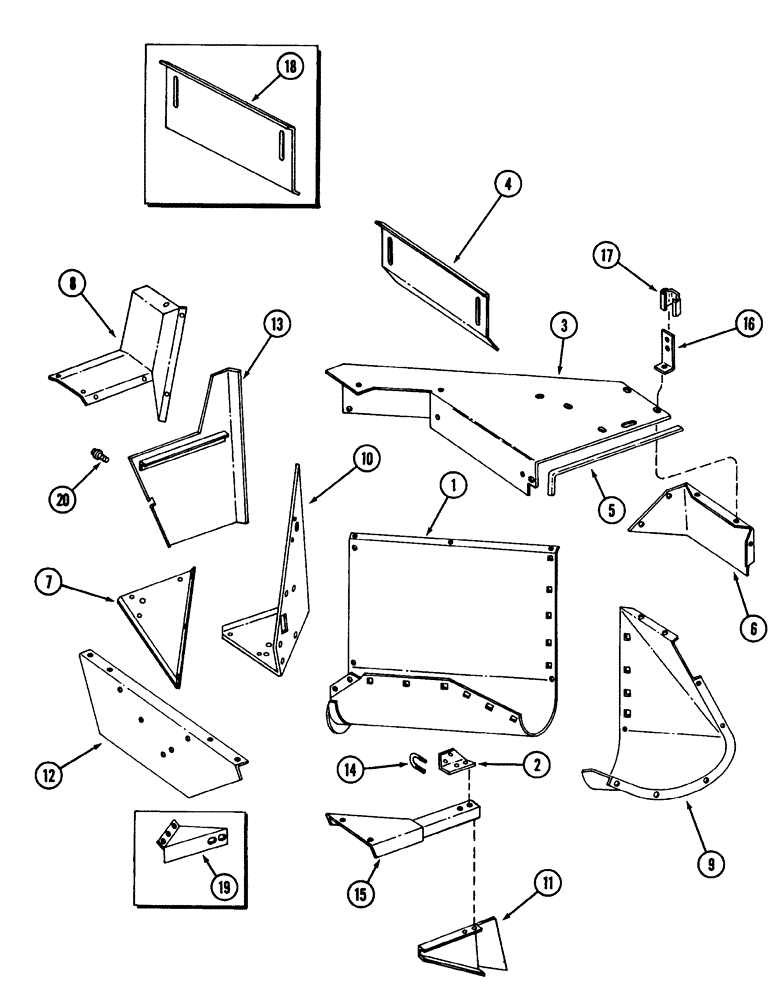

Запчасти Case IH 56 (9-12) - HOPPER AND CONNECTIONS, 56 BLOWER (09) - CHASSIS/ATTACHMENTS

1

60497C1

SHEET

PANEL - auger hopper

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

7шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11шт.

2

483508R1

ANGLE

BRACKET - hose

1шт.

3

483428R2

SHIELD

- hopper

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

BOLT - hex washer head, 5/16 NC x 5/8 inch

12шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

4

101417C1

SHEET

PANEL - auger hopper, restricting, S/N 12305 and after

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

5

483510R1

SEAL

- filter housing, edge

1шт.

6

483429R1

SHIELD

- knuckle drive

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

BOLT - hex washer head, 5/16 NC x 5/8 inch

1шт.

7

483430R1

SUPPORT

- rear filler

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

3шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

8

56511C2

SHEET

PANEL - drive cover, includes decal, replaces 483431R11 sheet

1шт.

1256658C2

PRODUCT GRAPHIC

DECAL - Danger, to prevent personal injury, not shown, see page 9-61 for decal

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

BOLT - hex washer head, 5/16 NC x 5/8 inch

2шт.

9

60677C1

SHROUD

SECTION - corner, S/N 12305 and after

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

5шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

231-5146

FLANGE NUT,3/8"-16

5шт.

10

483434R2

SHEET

PANEL - hopper end

1шт.

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2

2шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

11

101418C1

SHEET

PANEL - right-hand vertical front, S/N 12305 and after

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

3шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

12

483437R2

SHEET

PANEL - right-hand edge

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

9шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

13

488355R1

SHIELD

- drive, prior to S/N 17475

1шт.

13

117084C1

SHIELD

- drive, S/N 17475 and after

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

BOLT - hex washer head, 5/16 NC x 5/8 inch, replaces 488412R1 wing bolt

2шт.

424-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 1/4 NC x 1/2 inch, grade 2

4шт.

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

14

620629R1

BOLT,U, 5/16" x 1 7/16"

U-BOLT - 5/16 inch NC, hose bracket

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

483427R2

SHEET

- front, right-hand corner

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

16

626207R1

BRACKET

- prior to S/N 17475, no longer available

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

396222R1

CAGE

SCREW - 5/16 NC x 5/8 inch

2шт.

17

A59457

BRACKET

- mounting, SMV, prior to S/N 17475

1шт.

18

483509R1

SUPPORT

SHEET - restricting, prior to S/N 12305, used with item 3, 483428R2 shield, no longer available

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

19

483426R2

SHEET

- front right-hand vertical, prior to S/N 12305, no longer available

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

3шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

20

188029C1

LATCH

- door, S/N 17475 and after

1шт.
