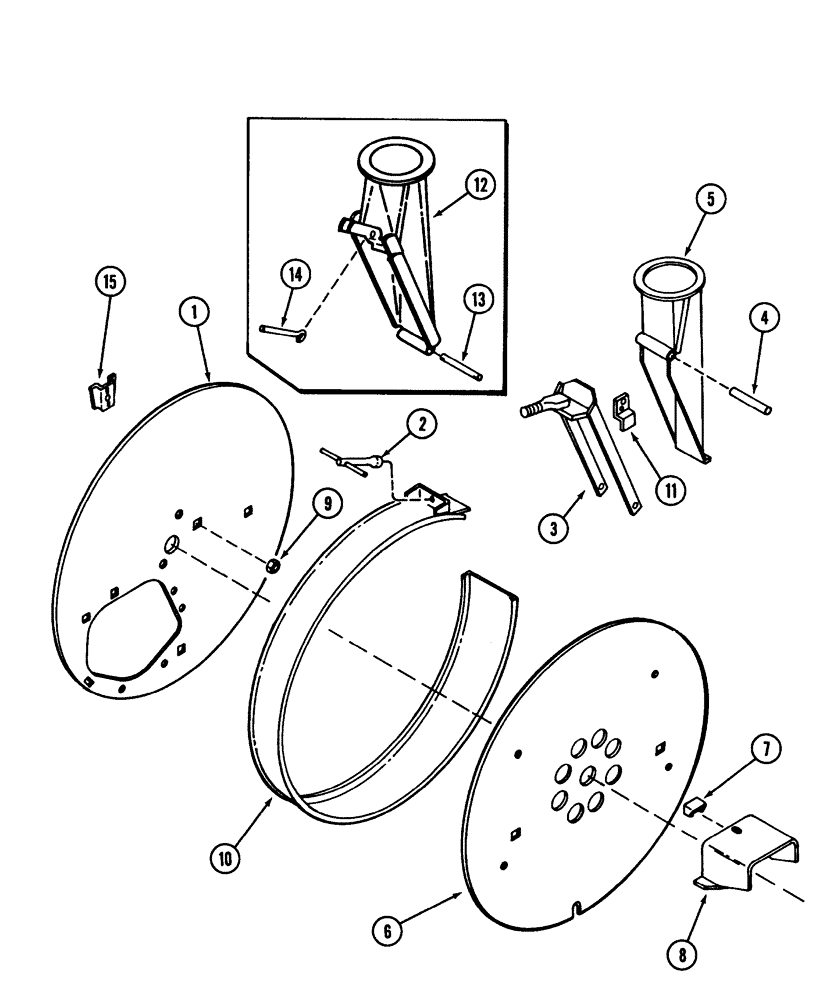

Запчасти Case IH 56 (9-02) - ROTOR HOUSING, 56 BLOWER (09) - CHASSIS/ATTACHMENTS

1

483359R1

PLATE

- rotor, rear

1шт.

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2

3шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

379017R1

WASHER - square hole, special

4шт.

351107R1

WASHER

- flat, 17/32 x 2 x 1/4 inch

4шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

2

483377R92

NUT

- scroll adjusting

1шт.

3

60665C1

BASE

- transition, S/N 12305 and after

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

4

60486C1

PIN

- hinge, S/N 12305 and after

1шт.

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

5

60481C1

SPOUT, DISCHARGE

SPOUT - transition, S/N 12305 and after

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

231-5146

FLANGE NUT,3/8"-16

2шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

6

62259C92

SHEET

PLATE - rotor front, includes decal, replaces 483356R1 sheet

1шт.

202707C2

PRODUCT GRAPHIC

DECAL - Caution, no riders, not shown, see page 9-61 for decal

1шт.

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2

3шт.

379017R1

WASHER - square hole, special

3шт.

351107R1

WASHER

- flat, 17/32 x 2 x 1/4 inch

3шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

7

117019C1

SPACER

ANGLE - shield clip

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

8

117029C92

SHIELD

- includes decals

1шт.

64553C2

PRODUCT GRAPHIC

DECAL - Warning, power drive system safety shields, not shown, see page 9-61 for decal

1шт.

1253631C1

PRODUCT GRAPHIC

DECAL - Warning, to avoid personal injury, not shown, see page 9-61 for decal

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

9

1502286C2

NUT,Floating Cage, 5/16"-18

- speed, 5/16 inch NC

1шт.

10

483371R11

PLATE ASSY.

BAND - rotor housing, prior to S/N 12305

1шт.

10

60668C1

BAND

- rotor housing, S/N 12305 and after

1шт.

11

60484C1

CLIP

- retaining, front, used with item 5 only

1шт.

11

60485C1

CLIP

- retaining, rear, used with item 5 only

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

12

483361R92

CYLINDER END CAP

SECTION - transition, prior to S/N 12305

1шт.

439-1828

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch, grade 2

1шт.

432-1216

COTTER PIN,3/16" x 1"

1шт.

13

483375R1

PIN

- hinge, prior to S/N 12305

1шт.

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

14

483376R1

BOLT,5/8" - 11 x 7.80"

- eye, prior to S/N 12305

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

15

A59457

BRACKET

- mounting, S/N 17475 and after

1шт.

412-58

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
