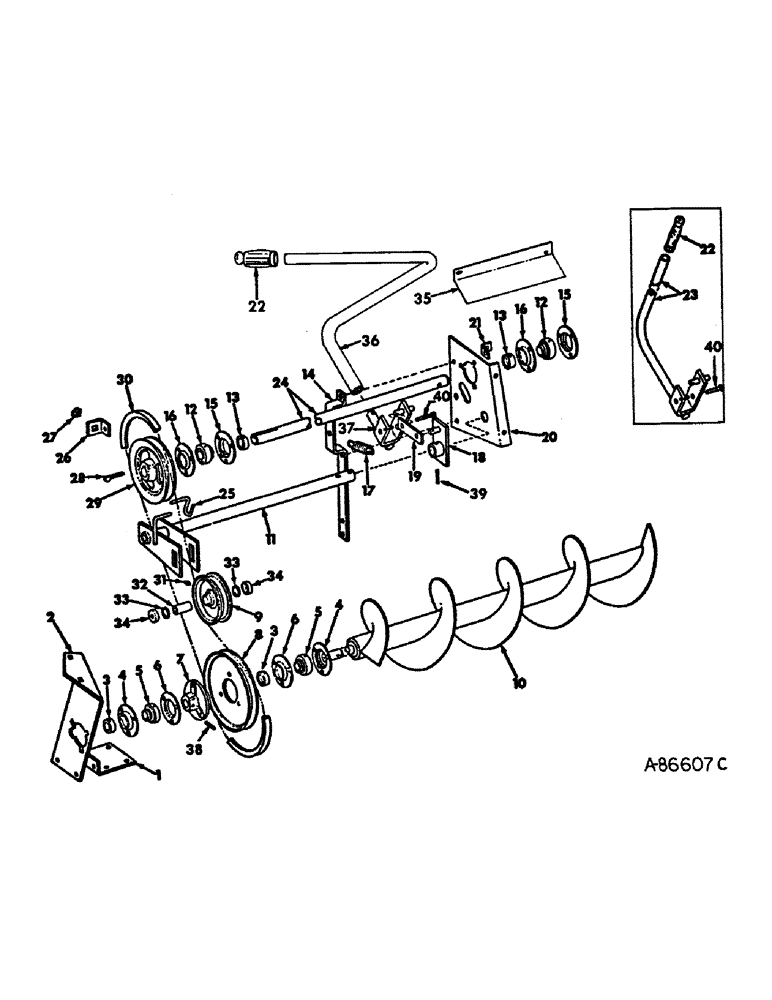

Запчасти Case IH 48 (B-09) - AUGER, AUGER DRIVE AND RELATED PARTS

1

483435R1

SUPPORT

BRACKET, drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

4шт.

2

483436R1

SUPPORT

auger strap

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

3

557115R11

COLLAR

COLLAR W/SET SCREW, locking

2шт.

4

670375R11

FLANGE

TTE, w/lub fitting

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

6шт.

5

939475R92

BEARING ASSY

LESS COLLAR, auger

2шт.

6

939461R1

FLANGE

TTE, w/o lub fitting

2шт.

7

581554R1

HUB CAP

HUB, driven sheave

1шт.

8

101400C1

PULLEY

auger drive, 56 blowers with serial no. 12305 and above and 48 blowers

1шт.

8

587622R11

PULLEY

auger drive, 56 blowers with serial no. 12304 and below

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

3шт.

9

469611R91

PULLEY

ASSY, idler brg, includes ref nos 31 through 34

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 znd hex-hd cap

1шт.

120396

WASHER

17/32 x 1-1/16 x .074 znd

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

1шт.

10

483503R91

AUGER

ASSY

1шт.

23041R1

WASHER

1-5/32 x 1-1/2 x 16 znd

2шт.

11

483495R91

ARM

ASSY, idler

1шт.

22769R1

WASHER

1.094 x 1.500 x .054 znd

4шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

12

483516R92

BEARING ASSY,52 mm OD x 1.21875"

LESS COLLAR, auger drive

2шт.

13

658006R11

COLLAR

W/SET SCREW, locking

2шт.

14

483440R2

SUPPORT

lever

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

15

937518R91

FLANGE

TTE W/LUB FITTING

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

6шт.

16

937517R1

FLANGE

TTE LESS LUB FITTING

2шт.

17

138474C1

VALVE SPRING

SPRING

1шт.

18

483492R91

ARM

ASSY, front lever

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga znd

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

19

483491R1

BAR

connecting strap

1шт.

20

483439R1

SUPPORT

bearing, machines w/serial no. 17474 & below

1шт.

20

117011C1

SUPPORT

bearing, machines w/serial no. 17475 & above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

4шт.

21

483487R1

ANGLE

shield clip

1шт.

22

386283R1

GRIP

control handle, replaces 481566R1

1шт.

23

483488R11

LEVER

ASSY, machines w/serial no. 16270 & below

1шт.

23

117012C1

LEVER

ASSY, machines w/serial no., Serial Range: 16271-17474

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

24

483511R1

SHAFT

belt drive

1шт.

25

483499R1

ROD

CLIP, belt

1шт.

26

483512R2

ANGLE

shield clip

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

27

56343C1

NUT

5/16-18 speed grip retainer Tinnerman

1шт.

28

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 x 1-1/2 gib hd

1шт.

29

2231K

PULLEY

drive

1шт.

30

23898K

BELT,61.79" L

V-BELT , Auger drive, 56 blowers with S/N 12305 and above and 48 blowers 61.79" L

1шт.

30

668929R1

V-BELT,65.80" L

Auger drive, Replaces 483502R1, 56 blowers with serial no. 12304 and below 65.80" L

1шт.

31

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tapping str lub

1шт.

32

464898R1

BUSHING

BEARING, idler pulley

1шт.

33

464900R1

THRUST WASHER

idler pulley thrust

2шт.

34

464899R1

CUP WASHER

cupped

2шт.

35

117010C1

SHIELD

hopper drive, support

1шт.

36

136344C1

TUBE

lever, machines w/serial no. 17475 & above

1шт.

37

136345C1

BRACKET

ASSY, lever tube, machines w/serial no. 17475 & above

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

2шт.

128366C1

LOCK NUT

3/8-16 hex jam

2шт.

178373R1

WASHER

.531 x 1.000 x .056

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

38

22970R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

39

22099R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

40

22895R1

PIN,1/2" x 2 7/8"

1/2 x 2.875 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.
