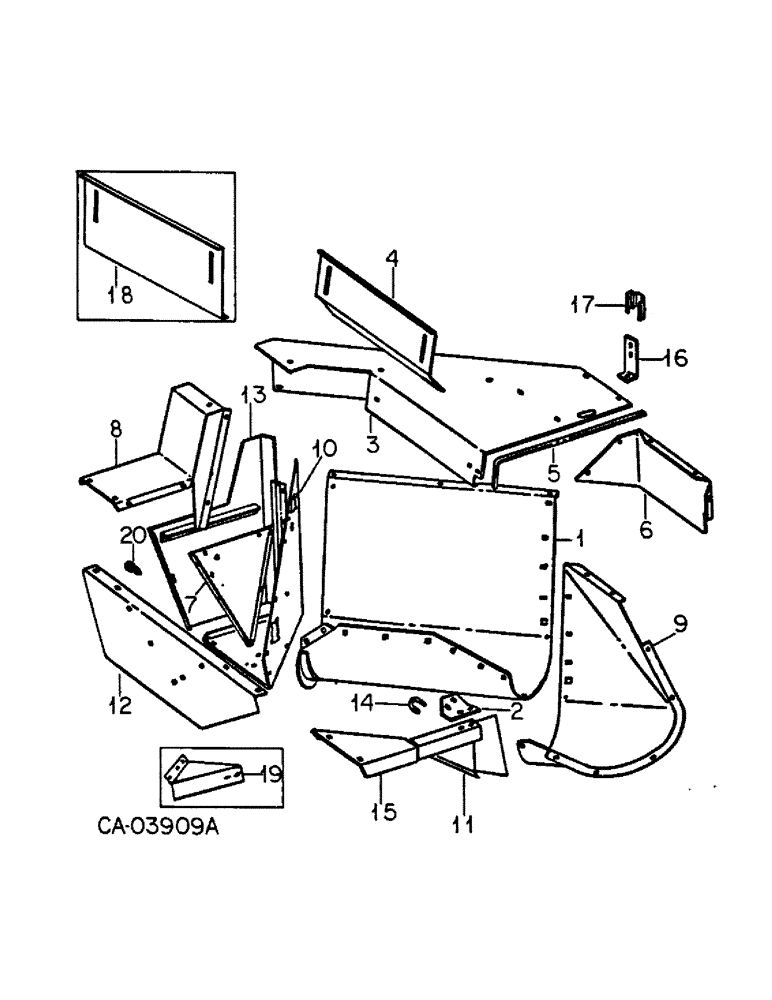

Запчасти Case IH 48 (B-07) - HOPPER AND CONNECTIONS

1

60497C1

SHEET

ASSY, auger hopper

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

7шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

3шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock

11шт.

2

483508R1

ANGLE

BRACKET, hose

1шт.

3

483428R2

SHIELD

hopper

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z washer hd cap

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

12шт.

4

101417C1

SHEET

restricting, 56 blowers with serial no. 12305 and above and 48 blowers

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flanged lock

2шт.

5

483510R1

SEAL

edge

1шт.

6

483429R1

SHIELD

knuckle drive, 56 blowers

1шт.

6

60498C1

SHIELD, knuckle drive, 48 blowers

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z washer, hd cap

1шт.

7

483430R1

SUPPORT

SHEET, rear filler

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 5/8 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

3шт.

7

56511C2

SHEET

W/PRODUCT GRAPHIC, drive cover, replaces 483431R11

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

4шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z washer hd cap

2шт.

1256658C2

PRODUCT GRAPHIC

danger

1шт.

9

60677C1

SHROUD

SECTION ASSY, corner, 56 blowers w/serial no. 12305 and above

1шт.

REF#9 FOR BELOW SERIAL NUMBER ORDER ITEMS 1,9,15 AND 19 11/8/96

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

5шт.

619856R1

WASHER

13/32 x 1 x 16 ga znd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

5шт.

9

60494C1

SECTION ASSY, corner, 48 blowers

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd crg

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga znd

1шт.

22475R1

BOLT, 3/8 x 5/8 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

5шт.

10

483434R2

SHEET

hopper end

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

2шт.

11

101418C1

SHEET

right front vertical, 56 blowers with serial no. 12305 and above and 48 blowers

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

12

483437R2

SHEET

right hand edge

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

9шт.

13

488355R1

SHIELD

ASSY, drive, 48 blower, 56 blower w/serial no. 17474 & below

1шт.

13

117084C1

SHIELD

ASSY, drive, 56 blower w/serial no. 17475 & above

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z washer hd cap, replaces wing bolt, 488412R1

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

4шт.

480891R1

NUT

1/4-20 hex flange lock

4шт.

14

620629R1

BOLT,U, 5/16" x 1 7/16"

U-BOLT HOSE BRACKET

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock

2шт.

15

483427R2

SHEET

front right corner

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock

4шт.

16

626207R1

BRACKET

48 blower, 56 blower w/serial no. 17474 & below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

396222R1

CAGE

SCREW, 5/16-18 x 5/8 cad washer-hd cap

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap, for 48 blower

1шт.

17

398976R1

BRACKET

SOCKET, SMV, 48 blower, 56 blower w/serial no. 17474 & below

1шт.

18

483509R1

SUPPORT

SHEET, restricting, used w/hopper shield 483428R1, 56 blowers w/serial no. 12304 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

33/8-16 C-Z flanged lock

2шт.

19

483426R2

SHEET

right front vertical, 56 blower w/serial no. 12304 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

20

188029C1

LATCH

56 blower w/serial no. 17475 & above

1шт.
