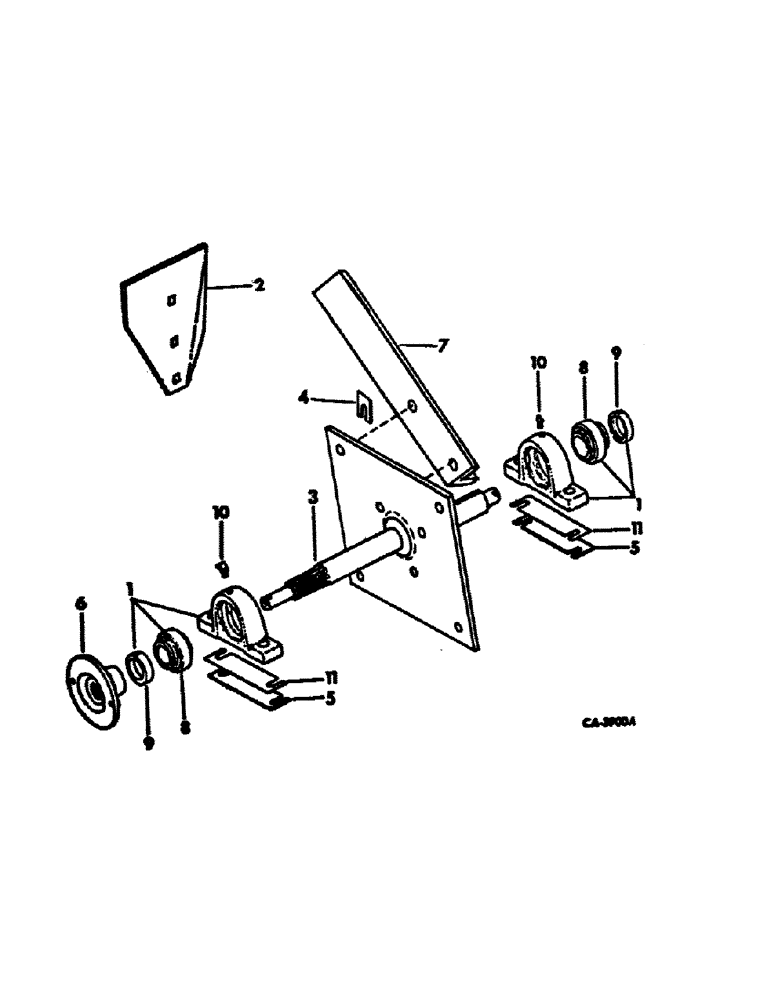

Запчасти Case IH 48 (B-06) - ROTOR AND DRIVE, 48 BLOWERS

1

60476C91

BEARING ASSY W/LUB FITTING, pillow block

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW 1/2-13 x 2 znd hex-hd cap

4шт.

25710R1

WASHER

17/32 x 1-1/16 x .134 znd

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

4шт.

2

483335R2

HALF BLADE

BLADE, rotor

4шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 znd sq-nk crg

12шт.

231-1448

NUT,1/2"-13, GB

1/2-13 C-Z nylon insert

12шт.

3

60472C1

PLATE ASSY, rotor

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga znd (as required)

3шт.

14-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

SCREW, 3/4-16 x 2 hex-hd cap

8шт.

18558R1

NUT,3/4"-16, GB

3/4-16 nylon insert

8шт.

22051R1

WASHER

1-17/32 x 2-1/4 x .054 znd

6шт.

21996R1

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

4

486453R1

SHIM

blade .010 (as required)

3шт.

4

486454R1

SHIM

blade .030 (as required)

3шт.

5

483339R2

BAR

STRIP, rotor bearing .060 (as required)

6шт.

6

483341R1

HUB

shear bolt

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

483342R1

WASHER

1-1/32 x 2 x 1/4

1шт.

7

60475C1

ANGLE, rotor

4шт.

8

478038R91

NO LONGER SERVICED

BEARING, w/o collar, rotor

2шт.

9

455112R1

COLLAR W/SET SCREW, bearing locking

2шт.

10

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lube (in block brg)

2шт.

11

483340R2

STRIP

rotor bearing .012 (as required)

4шт.
