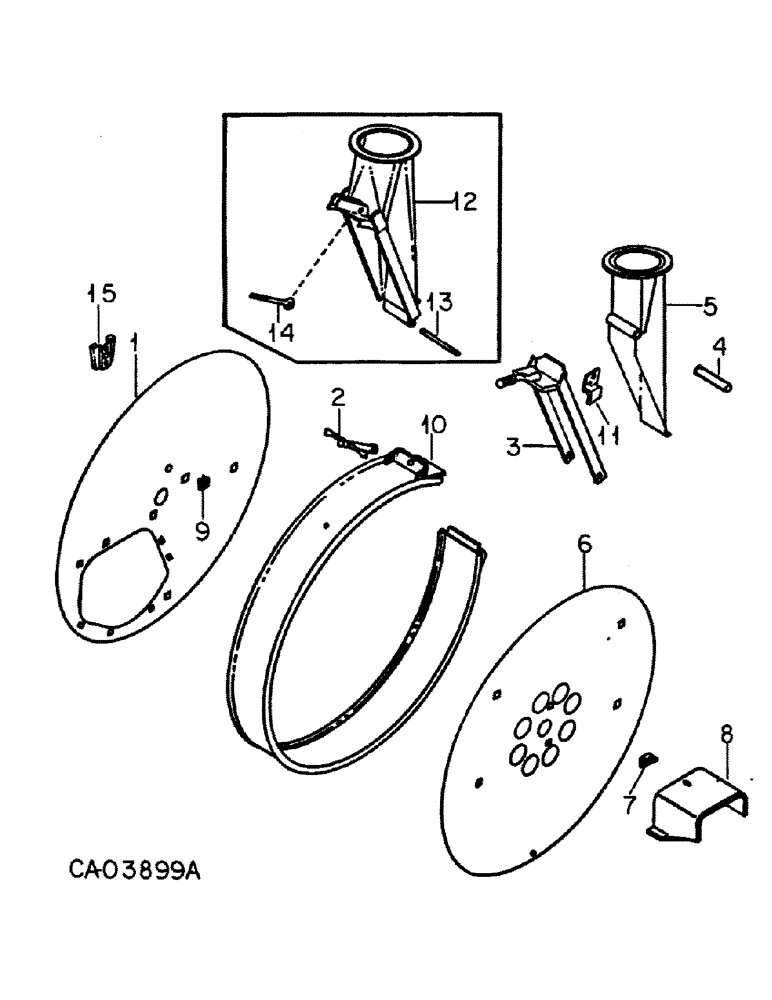

Запчасти Case IH 48 (B-03) - ROTOR HOUSING

1

483359R1

PLATE

SHEET, rotor rear, 56 blowers

1шт.

1

60480C1

SHEET, rotor rear, 48 blowers

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

3шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

379017R1

WASHER, sq hole

4шт.

351107R1

WASHER

17/32 x 2 x 1/4

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

4шт.

2

483377R92

NUT

ASSY, scroll adjusting

1шт.

3

60665C1

BASE

ASSY, transition, 56 blowers w/serial no. 12305 and above

1шт.

3

60487C1

BASE ASSY, transition, 48 blowers

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 3/32 znd

2шт.

4

60486C1

PIN

hinge, 56 blowers w/serial no. 12305 and above and 48 blowers

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

5

60481C1

SPOUT, DISCHARGE

TRANSITION ASSY, 56 blowers w/serial no. 12305 and above and 48 blowers

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z hex. flange lock

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex. flange lock

4шт.

6

62259C92

SHEET

W/PRODUCT GRAPHIC, rotor front, replaces sheet, 483356R1, 56 blowers

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

3шт.

379017R1

WASHER, sq hole

3шт.

351107R1

WASHER

17/32 x 2 x 1/4

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

5шт.

6

62263C91

SHEET W/PRODUCT GRAPHIC, rotor front, replaces sheet, 60479C1, 48 blowers

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk, crg

2шт.

379017R1

WASHER, sq hole

5шт.

351107R1

WASHER

17/32 x 2 x 1/4

8шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z hex. flange lock

5шт.

202707C2

PRODUCT GRAPHIC

caution

1шт.

7

117019C1

SPACER

ANGLE, shield clip

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 C-Z flange lock

1шт.

8

117029C92

SHIELD

w/product graphics

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

3шт.

64553C1

DECAL

PRODUCT GRAPHIC, warning PTO

1шт.

1253631C1

PRODUCT GRAPHIC

warning, product graphic, important (NSS)

1шт.

9

56343C1

NUT

5/16-18 speed retainer grip tinnerman

1шт.

10

60668C1

BAND

ASSY, rotor housing, 56 blowers w/serial no. 12305 and above

1шт.

10

483371R11

PLATE ASSY.

BAND ASSY, 56 blowers w/serial no. 12304 and below

1шт.

10

60491C1

BAND ASSY, 48 blowers

1шт.

11

60484C1

CLIP

retaining front, used with ref no. 5 only

1шт.

11

60485C1

CLIP

retaining rear, used with ref no. 5 only

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

4шт.

12

483361R92

CYLINDER END CAP

SECTION ASSY, transition, 56 blowers w/serial no. 12304 and below

1шт.

21665R1

PIN, 5/8 x 1.625 hd type 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

13

483375R1

PIN

hinge, 56 blowers w/serial no. 12304 and below

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

14

483376R1

BOLT,5/8" - 11 x 7.80"

eye, 56 blowers w/serial no. 12304 and below

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 3/32 C-Z

2шт.

15

398976R1

BRACKET

SOCKET, SMV, 56 blowers w/serial no. 17475 & above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C2 flange lock

2шт.
