Запчасти Case IH 48 (B-18) - PRODUCT GRAPHICS, FLEXIBLE AND SOLID ELBOWS
№
Артикул
Название
Примечание
Количество
60523C94
KIT
PACKAGE, product graphics, consists of stripe, International (NSS), stripe, drive shield (NSS), important (NSS)
1шт.
61908C1
DECAL
CAUTION
1шт.
202707C2
PRODUCT GRAPHIC
CAUTION
1шт.
64553C2
PRODUCT GRAPHIC
CAUTION PTO
1шт.
145709C1
PRODUCT GRAPHIC
DANGER
1шт.
1256658C2
PRODUCT GRAPHIC
DANGER
1шт.
1253631C1
PRODUCT GRAPHIC
WARNING
1шт.
175311C1
REFLECTOR
red
2шт.
77583C91
PACKAGE
IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)
1шт.
77582C91
PACKAGE
IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)
1шт.
77581C91
PRODUCT GRAPHIC
PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36, (2) IH trademark 2.93 x 3.15 (NSS)
21шт.
547495R92
DECAL KIT
PACKAGE, International, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)
1шт.
547497R92
DECAL
PACKAGE, model designation, consists of (2) model designation 8.78 x 2.45, (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)
1шт.

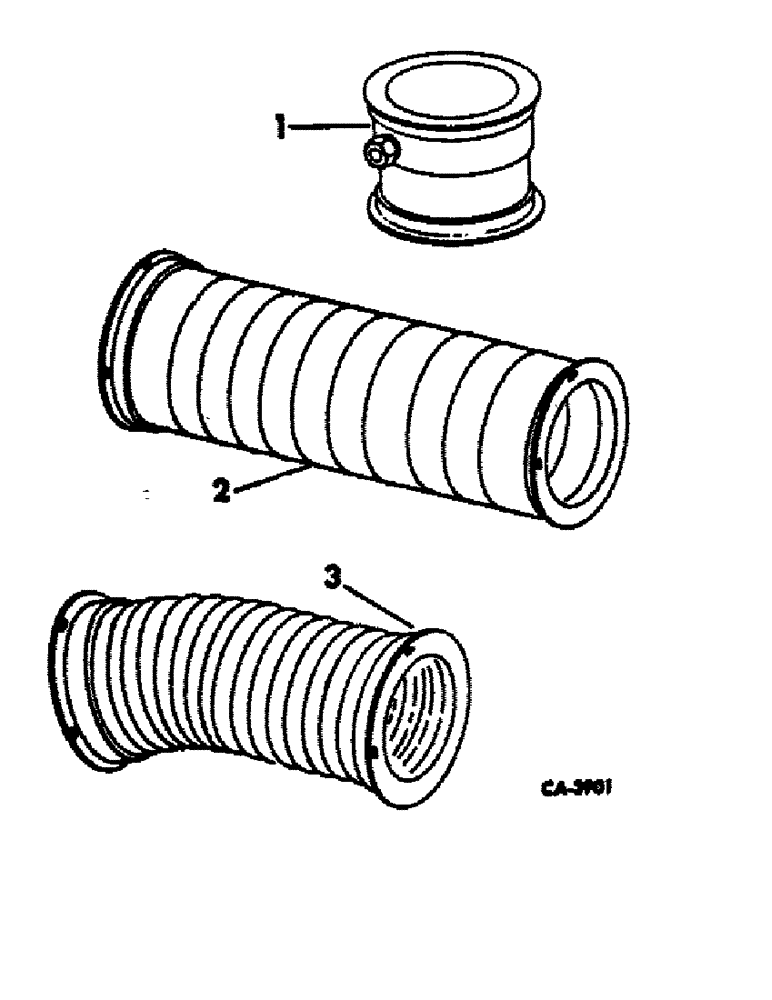

1
ELBOW ASSY, 10 degree flexible, serviced only as machine attachment
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x .051 C-Z
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
120376
NUT,5/16"-18, G5
4шт.
2
ELBOW ASSY, 45 degree flexible, serviced only as machine attachment
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x .051 C-Z
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
120376
NUT,5/16"-18, G5
4шт.
3
ELBOW ASSY, 22 degree solid, serviced only as machine attachment
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x .051 C-Z
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
120376
NUT,5/16"-18, G5
4шт.
Выбрано товаров: 28
