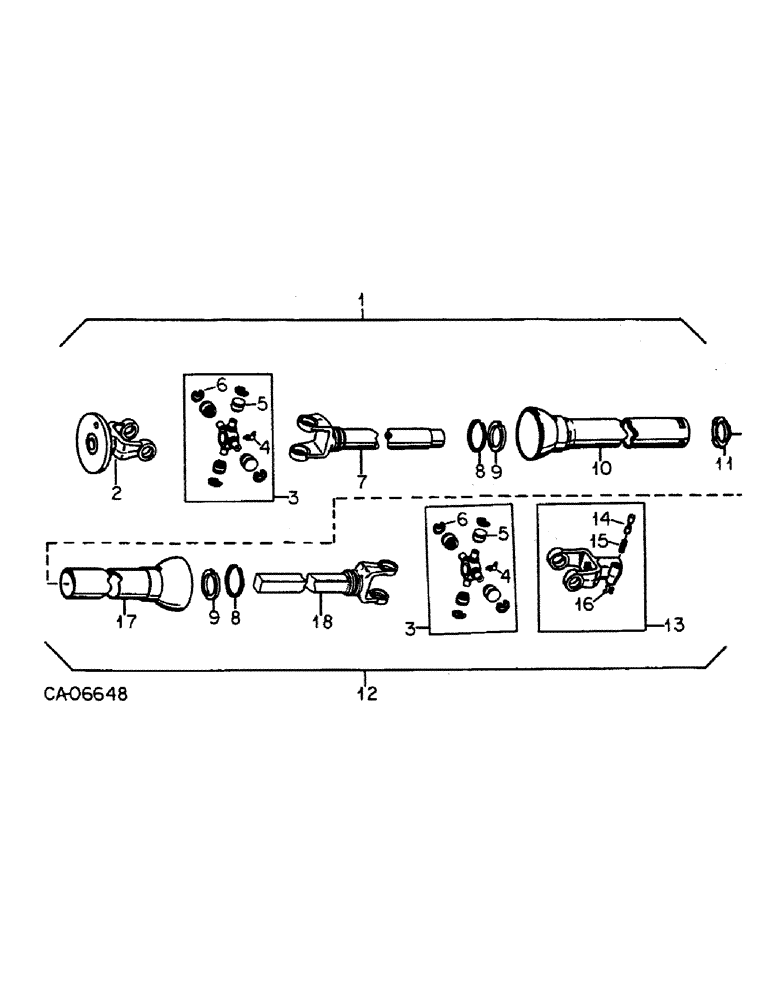

Запчасти Case IH 48 (B-17) - POWER TAKE-OFF DRIVE, HEAVY DUTY, WEASLER

1

76821C91

JOINT

ASSY, implement end

1шт.

2

483610R91

YOKE

W/BUSHING FLANGE

1шт.

3

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT, center cross, consists of ref 4, 5 & 6

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.

5

CUP ASSY, needle bearing, not serviced separately, order kit 470077R91

8шт.

6

470081R1

RING

snap

8шт.

7

76826C1

YOKE

W/TUBE

1шт.

8

597559R1

RETAINER

RING, retaining

1шт.

9

76823C1

RING

bearing nylon

1шт.

10

76825C1

SHIELD

1шт.

11

597568R1

SUPPORT

PILOT, shield

1шт.

12

76820C92

JOINT

W/PRODUCT GRAPHIC, tractor end

1шт.

13

470090R11

YOKE

ASSY, quick detachable, consists of ref 14, 15 & 16

1шт.

14

455346R21

PIN

ASSY, locking

1шт.

15

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

16

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X

1шт.

17

76822C2

SHIELD

W/PRODUCT GRAPHIC

1шт.

145709C1

PRODUCT GRAPHIC

warning

1шт.

18

76824C1

YOKE

W/SHAFT

1шт.
