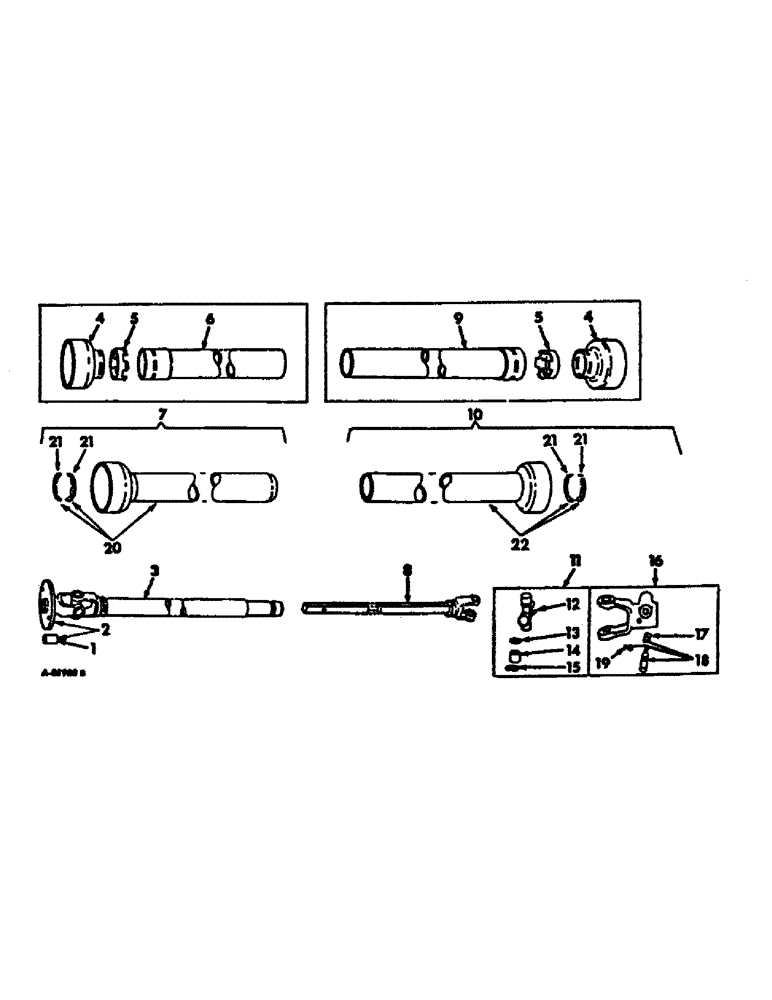

Запчасти Case IH 48 (B-16) - POWER TAKE-OFF DRIVE, HEAVY DUTY, ROCKWELL

1

469610R1

BUSHING

flanged yoke

1шт.

2

483610R91

YOKE

W/BUSHING, flanged

1шт.

3

483608R1

YOKE

W/TUBE

1шт.

4

SHIELD, bell, for service replacement, order shield assy, 60287C91 or shield assy, 60288C92

2шт.

5

BEARING, nylon shield, for service replacement, order shield assy, 60287C91 or shield assy, 60288C92

2шт.

6

SHIELD, tube, for service replacement, order shield assy, 60287C91

1шт.

7

483420R91

JOINT

ASSY, single universal shielded rear half, implement end

1шт.

8

483606R91

YOKE

W/SHAFT

1шт.

9

SHIELD, tube, for service replacement, order shield assy, 60288C92

1шт.

10

483419R92

JOINT

ASSY, single universal shielded front half, tractor end

1шт.

11

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

KIT, center cross

2шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.

13

470080R1

OIL SEAL

WASHER, cup

8шт.

14

CUP ASSY, needle bearing, not serviced separately, order kit, 470077R91

8шт.

15

470081R1

RING

snap

8шт.

16

470090R11

YOKE

ASSY, quick detachable

1шт.

17

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

18

455346R21

PIN

ASSY, locking

1шт.

19

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

locking pin X

1шт.

20

60287C91

SHIELD

ASSY W/BEARINGS, inner

1шт.

21

493848R1

BEARING HALF

nylon shield

4шт.

22

60288C92

SHIELD

W/PRODUCT GRAPHIC, outer

1шт.

145709C1

PRODUCT GRAPHIC

warning

1шт.
