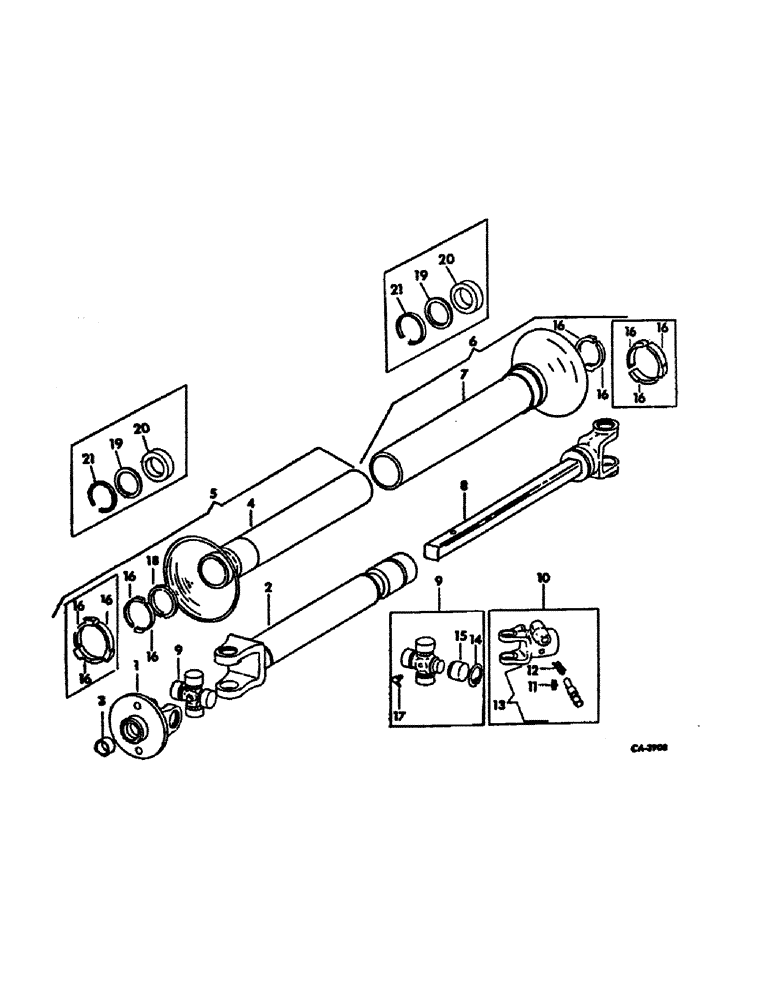

Запчасти Case IH 48 (B-14) - POWER TAKE-OFF DRIVE, STANDARD

1

60802C91

YOKE

W/BUSHING, flanged, 56 blowers with serial no. 12305 and above and 48 blowers

1шт.

1

469605R11

YOKE

W/BUSHING, flanged, 56 blowers w/serial no. 12304 and below

1шт.

2

483348R92

YOKE

W/TUBE

1шт.

3

469610R1

BUSHING

1шт.

4

483347R2

SHIELD

W/NYLON BEARINGS, inner

1шт.

5

483344R92

JOINT

ASSY, single universal shielded rear half, implement end

1шт.

6

483343R92

JOINT

ASSY, single universal shielded front half, tractor end

1шт.

7

483345R2

SHIELD

W/NYLON BEARINGS, outer

1шт.

8

60803C1

YOKE

W/SHAFT, 56 blowers with serial no. 12305 and above and 48 blowers

1шт.

8

483346R91

YOKE

W/SHAFT, 56 blowers w/serial no. 12304 and below

1шт.

9

347960R91

U-JOINT SPIDER

KIT, center cross or 660116R91

2шт.

9

174980C91

JOINT

KIT, center cross, 56 blowers with serial no. 12305 and above and 48 blowers or

2шт.

9

660116R91

NUT

KIT, center cross, 56 blowers w/serial no. 12304 and below

2шт.

10

660484R21

FORK

YOKE ASSY, quick detachable

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

locking pin x

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

13

455346R21

PIN

ASSY, locking

1шт.

14

495962R1

RING

snap

8шт.

15

CUP ASSY, needle bearing, not serviced separately, order ref no. 9

8шт.

16

549626R1

BEARING

nylon, 56 blowers with serial no. 12305 and above and 48 blowers

4шт.

16

542956R1

NYLON BEARING,0.312"

nylon, 56 blowers with serial no. 12305 and above and 48 blowers

6шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg angle lub

2шт.

18

58697C1

SHIELD

BEARING, nylon support, used w/plastic shields

1шт.

18

613439R1

BRACKET

BEARING, nylon, used w/steel shields

1шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust, 56 blowers w/serial no. 12304 and below

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon, 56 blowers w/serial no. 12304 and below

2шт.

21

613436R1

CLAMP

RING, snap, 56 blowers w/serial no. 12304 and below

2шт.
