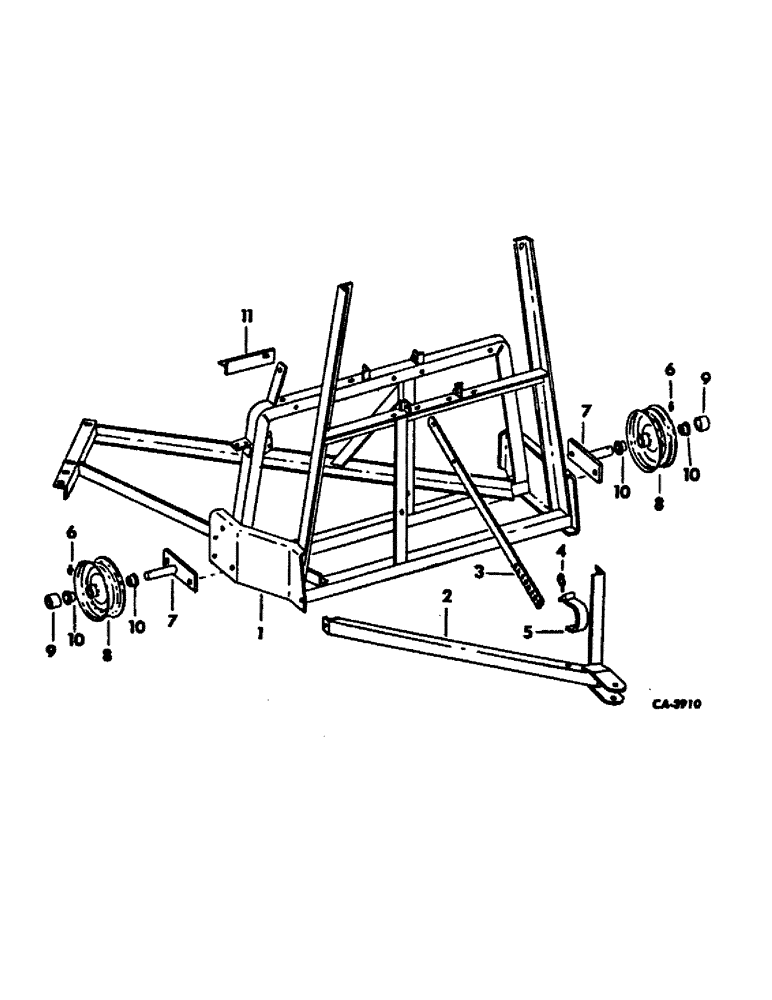

Запчасти Case IH 48 (B-13) - MAIN FRAME, HITCH AND TRANSPORT WHEELS, 48 BLOWERS

1

60453C1

FRAME ASSY, main

1шт.

635309R2

BOLT,Spcl Hex, 3/8" - 16 x 1 3/4"

SCREW, 3/8-16 x 1-3/4 full thrd hex-hd cap

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

60466C1

TONGUE ASSY

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp hex. lock

2шт.

3

60470C1

BAR

leveling

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp hex. lock

1шт.

4

479696R91

AXLE PIN

PIN ASSY, klik

1шт.

5

483411R11

SPRING

ASSY, hitch

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

1шт.

400839R1

WASHER,21/32" x 1 5/16" x .188", HDN

21/32 x 1-5/16 x 3/16 ht

1шт.

9412231

NUT

5/8-11 PHC hex. lock type 8

1шт.

6

20691R1

FITTING,3/16" x .47" lg, Drive

drive str lub

2шт.

7

483413R91

AXLE

ASSY

2шт.

482013R1

WASHER

1.14 x 1.56 x .12

4шт.

472323R1

WASHER

1.156 x 1.508 x .060 (as required)

4шт.

462800R1

WASHER

1.000 x 1.625 x .250 felt

2шт.

Q3482

WASHER

1.156 x 1.75 x .105

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

477906R1

BOLT

1/2 x 1-1/4 znd sq-nk crg

2шт.

487374

NUT, 1/2-13 C-Z hex. flange lock

2шт.

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

8

481891R91

WHEEL

W/BUSHING, 4.00 x 8

2шт.

9

481189R1

CAP

wheel hub

2шт.

10

481892R1

BUSHING

BEARING, wheel

4шт.

11

101416C1

ANGLE, filler

1шт.

21721R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 3/4", Gr 2

BOLT, 1/2 x 3/4 znd sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 C-Z flange lock

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z flange lock

1шт.
