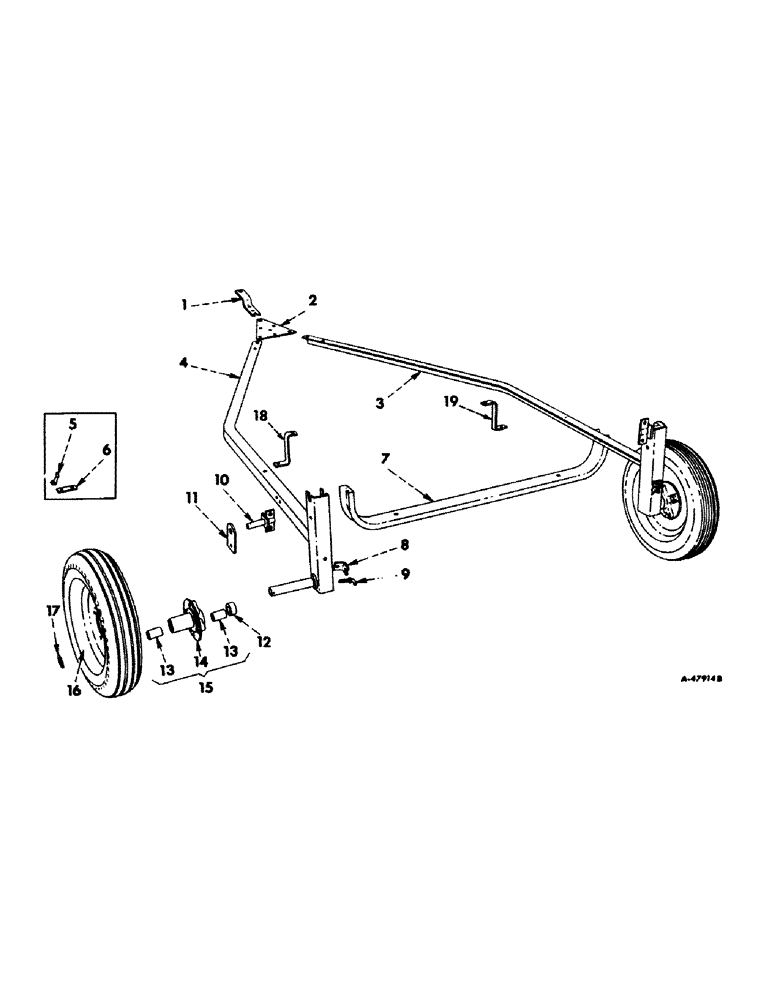

Запчасти Case IH 47 (A-21) - TRANSPORT ATTACHMENT, 47 BLOWER

1

453470R1

STRAP, hitch frame hammer

1шт.

2

453616R1

PLATE, lower hitch

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

6шт.

102637

NUT,1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

3

470202R92

FRAME ASSY, right transport

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

470201R92

FRAME ASSY, left transport

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

5

MA487

NUT

crank, 1963, on 7/16-14 x 1 short-sq-nk crg bolt

1шт.

6

458865R1

SPACER, rectangular, 1963, furnish 477307R1 and 477308R1 plus hardware

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

458864R1

BRACE, frame

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

458866R1

CLIP, transport locking, furnish 477305R1

2шт.

8

477305R91

CLIP, transport locking

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

458867R1

BOLT, hook

2шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16 hex.

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q6652

WASHER, 15/32 x 1 x 16 ga flat

4шт.

10

458861R11

PIVOT ASSEMBLY

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

458863R1

PLATE, pivot locking

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

M32687D

SPACER, wheel hub

2шт.

13

38710K

BUSHING, wheel hub bearing

4шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

15

581480R11

HUB W/BUSHINGS ASSY, wheel

2шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

18

459363R91

DISC & RIM ASSEMBLY, 12.00-3, (2) 4.00 x 12, 2 ply rim tread

1шт.

17

Q121

WASHER

1-9/32 x 2 x 16 ga flat

8шт.

18

477307R1

BRACKET, LH

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

477308R1

BRACKET, RH

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
