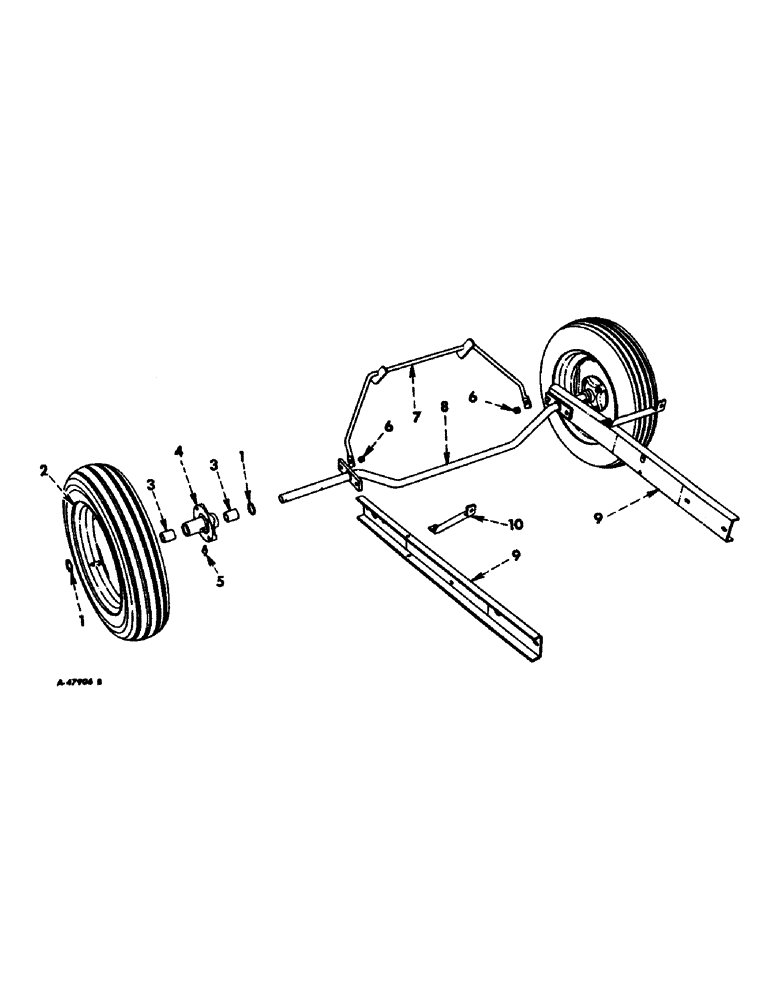

Запчасти Case IH 47 (A-14) - TRANSPORT AXLE AND FRAME

1

Q121

WASHER

1-9/32 x 2 x 16 ga flat

8шт.

2

455169R92

WHEEL

DISC & RIM ASSY, 15 x 4-1/2 wheel

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2-20 x 15/16 conical head wheel

8шт.

3

38710K

BUSHING, wheel hub

4шт.

4

581480R11

HUB W/BUSHINGS ASSY, wheel

2шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 str lub

2шт.

6

M93115

SPACER, locking bail pivot

2шт.

7

457516R11

BAIL ASSEMBLY, conveyor locking

1шт.

17523R1

BOLT, 1/2 x 2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga flat

2шт.

8

469596R11

AXLE ASSY, transport

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

457487R1

CHANNEL, main frame

2шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

4шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

Q5035

WASHER

17/32 x 1 x 16 ga flat

4шт.

10

457477R1

BRACE, transport frame

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
