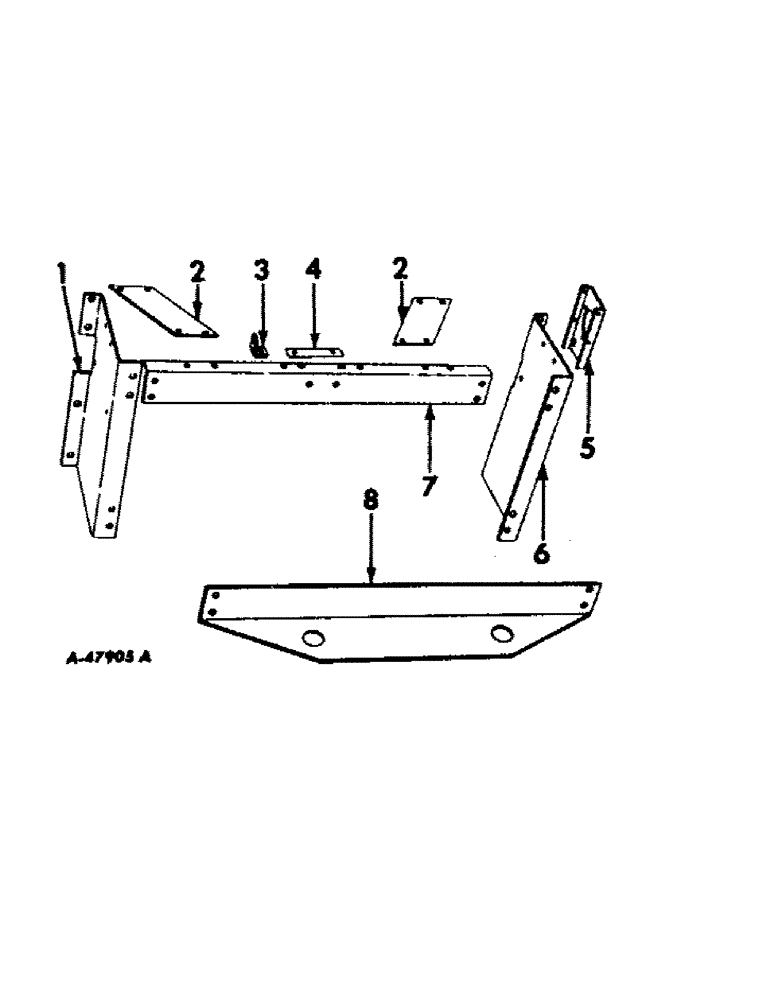

Запчасти Case IH 47 (A-13) - MAIN FRAME AND GEAR CASE SUPPORT

1

458234R1

PLATE, left side main frame

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

4шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

457501R1

BRACE, main frame

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

457500R1

CLIP, gear case adjusting

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

457486R1

SHIM, gear case

8шт.

5

469601R1

SUPPORT, PTO shaft bearing, 1963 & 1964

1шт.

5

478520R1

SUPPORT, PTO shaft bearing, 1965 & since

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga flat

2шт.

6

458235R1

PLATE, right side main frame

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

4шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

458233R1

ANGLE, main frame upper rear

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

458232R1

ANGLE, main frame lower rear

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
