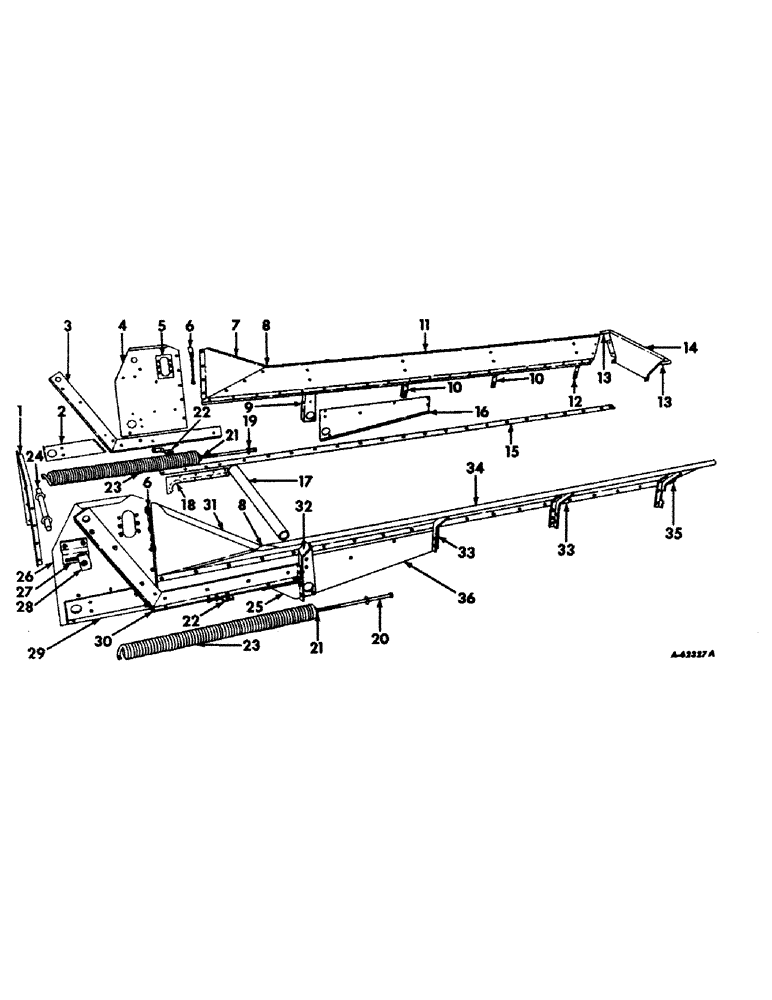

Запчасти Case IH 45 (A-08) - CONVEYOR BOTTOM, 45 BLOWER

1

457563R1

ANGLE, reinforcing throat

1шт.

2

457540R1

PLATE, left bearing & brace

1шт.

3

469616R1

ANGLE, left frame

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-md mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

462870R1

SHEET, L.H. throat

1шт.

14995R1

BOLT

3/8 x 3/4 crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

457547R1

PLATE, bearing

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

15002R1

BOLT, 5/16 x 1-1/4 crg Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

Q397

WASHER

11/32 x 3/4 x 16 ga flat

4шт.

6

459115R91

CHAIN ASSEMBLY, locking

2шт.

7

457576R1

SHEET, left throat extension

1шт.

102635

NUT,3/8"-16, G5

4шт.

114701

SCREW, 3/8 x 3/4 slt-rd hd mach

3шт.

114703

SCREW, 3/8 x 1 slt-rd hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1597

WASHER

13/32 x 3/4 x 11 ga flat

1шт.

8

457578R1

STIFFENER, side extension sheet

2шт.

9

460927R2

ANGLE, left spring pipe support

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

459102R1

ANGLE, left conveyor reinforcement

2шт.

11

457570R1

SIDE, left conveyor

1шт.

102635

NUT,3/8"-16, G5

2шт.

106897

RIVET, 1/4 x 3/8 truss-hd

3шт.

106898

RIVET

1/4 x 1/2 truss-hd

8шт.

114699

SCREW, 3/8 x 5/8 slt-rd hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

469589R1

ANGLE, left front conveyor support

1шт.

13

452240R1

CONNECTION, conveyor side & end

2шт.

14

457553R1

SHEET, front conveyor

1шт.

15

457546R1

STRIP

SEAL, conveyor side

2шт.

109084

NUT,1/4"-20, G5

44шт.

102635

NUT,3/8"-16, G5

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd hd mach

36шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 slt-rd-hd

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-rd-hd mach

2шт.

114699

SCREW, 3/8 x 5/8 slt-rd-hd mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

44шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q392

WASHER

9/32 x 3/4 x 18 ga flat

44шт.

16

460929R1

BRACE, left conveyor side

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

457539R1

PIPE, spring pivot

1шт.

103426

ELBOW,1/4" x 3"

Split (Cotter), 1/4" x 3"

2шт.

18

463220R91

SEAL, conveyor grain right

1шт.

12290R1

RIVET, 9/64 x 1/4 tinned ov-hd tublar

7шт.

18

463219R91

SEAL, conveyor grain left

1шт.

12290R1

RIVET, 9/64 x 1/4 tinned ov-hd tublar

7шт.

19

575810R1

WASHER

21/32 x 1-1/2 x 11 ga flat

2шт.

20

459114R1

BOLT, 5/8 x 16-1/2 lifting spring

2шт.

21

457528R1

PLUG

balance spring

2шт.

22

457567R1

CLIP, transport lock

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

457527R2

SPRING, balance

2шт.

24

457565R1

SHAFT, conveyor pivot

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

Q3850

BOLT

3/8 x 1 hex-hd mach

4шт.

25

470485R1

GUSSET, right spring pipe support

1шт.

25

470484R1

GUSSET, left spring pipe support

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

26

462871R1

SHEET, right throat

1шт.

14995R1

BOLT

3/8-16 x 3/4 crg

1шт.

17427R1

BOLT, 7/16 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

452907R1

BRACKET, idler

1шт.

15159R1

BOLT, 7/16 x 3-1/4 crg

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

557266R1

WASHER, 15/32 x 1-3/4 x 16 ga flat

1шт.

28

575622R2

BLOCK

idler

1шт.

29

457541R1

PLATE, right bearing & brace

1шт.

30

469617R1

ANGLE, right frame

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

457577R1

SHEET, right throat extension

1шт.

102635

NUT,3/8"-16, G5

4шт.

114701

SCREW, 3/8 x 3/4 slt-rd-hd mach

3шт.

114703

SCREW, 3/8 x 1 slt-rd-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1597

WASHER

13/32 x 3/4 x 11 ga flat

1шт.

32

460928R2

ANGLE, right spring pipe support

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

459103R1

ANGLE, right reinforcement conveyor

2шт.

34

457571R1

SIDE, right conveyor

1шт.

102635

NUT,3/8"-16, G5

2шт.

106897

RIVET, 1/4 x 3/8 truss-hd

3шт.

106898

RIVET

1/4 x 1/2 truss-hd

8шт.

114699

SCREW, 3/8 x 5/8 rd-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

469590R1

ANGLE, right front conveyor support

1шт.

36

460930R1

BRACE, right conveyor side

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
