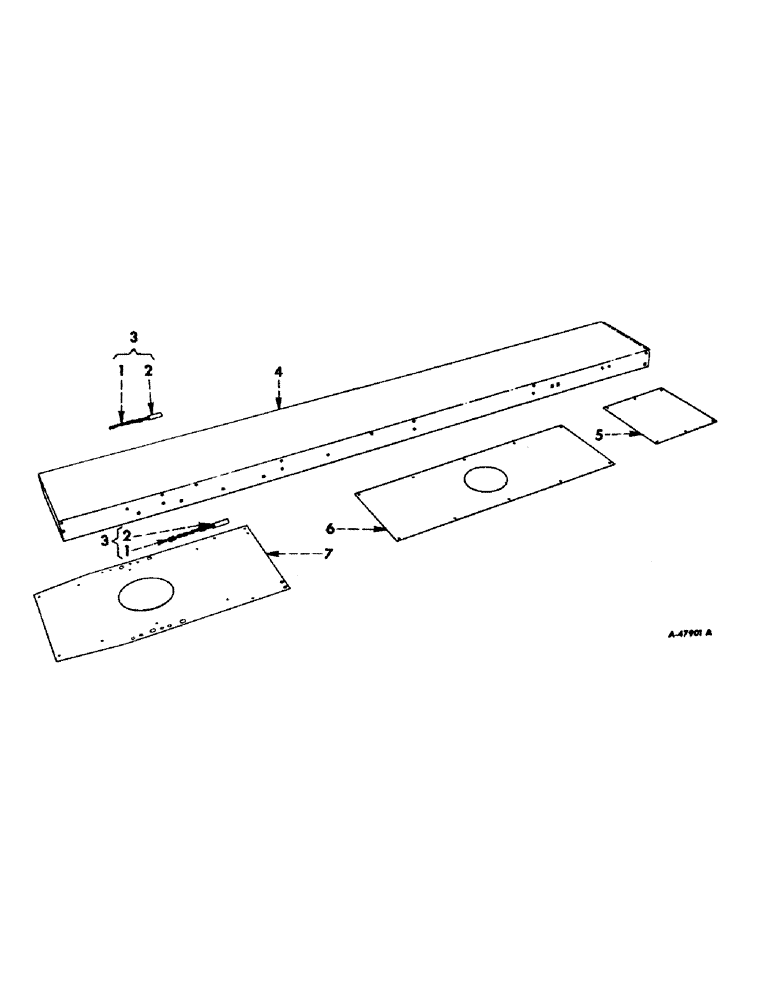

Запчасти Case IH 45 (A-07) - CONVEYOR BOTTOM, 45 BLOWER

1

457558R91

CHAIN ASSY, quick attaching locking pin

2шт.

2

517810R12

PIN,19.05mm OD x 104.39mm L

ASSY, quick attaching locking

2шт.

3

457557R91

PIN W/CHAIN ASSY, quick attaching conveyor locking

2шт.

4

469557R11

BOTTOM ASSY, conveyor

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

16шт.

14995R1

BOLT

3/8 x 3/4 crg

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 crg

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

48шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

48шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga flat

2шт.

5

469599R1

SHEET, front conveyor bottom stiffener

1шт.

14986R1

BOLT, 5/16 x 1/2 crg

4шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

457589R1

SHEET, center conveyor bottom stiffener

1шт.

14986R1

BOLT, 5/16 x 1/2 crg

10шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

7

469618R1

STIFFENER, rear conveyor bottom

1шт.

14986R1

BOLT, 5/16 x 1/2 crg

10шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

10шт.

102635

NUT,3/8"-16, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
