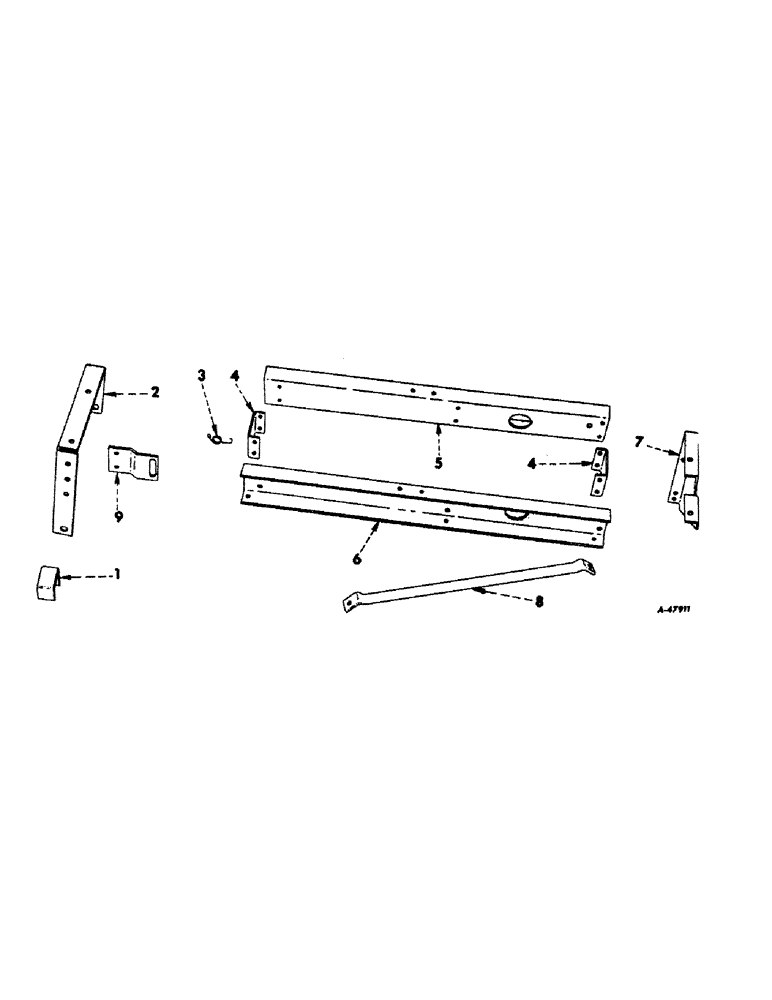

Запчасти Case IH 45 (A-18) - WAGON UNLOADING ATTACHMENT, 45 BLOWER, SUPPORT SILLS

1

458831R1

GUARD, belt

1шт.

2

458798R1

BRACE, sill

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq nk crg

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

6шт.

102637

NUT,1/2"-13, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

459181R1

SPRING, lever holdown

1шт.

4

458797R1

BRACKET, sill spacer

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

1шт.

102635

NUT,3/8"-16, G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

Q397

WASHER

11/32 x 3/4 x 16 ga plain

1шт.

5

458795R1

SILL, LH support

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

458796R1

SILL, RH support

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

7

458799R1

BRACE, sill end

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

458824R1

BRACE, support sill

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

458801R1

PLATE, idler support

1шт.

15144R1

BOLT

1/2 x 3 sq nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
