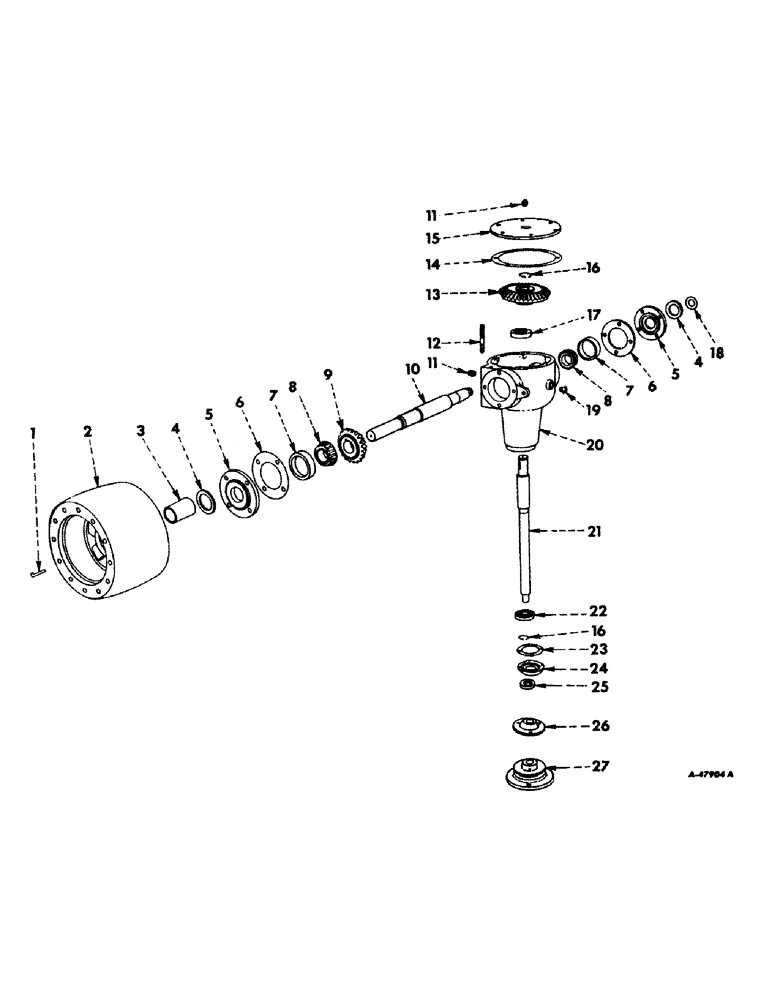

Запчасти Case IH 45 (A-12) - GEAR CASE

1

216

SHIELD

KEY, 7/16 x 7/16 x 348/.353 x 3-3/8 gib

1шт.

2

455456R1

PULLEY, 13-13/16 x 7 drive

1шт.

2

455457R1

PULLEY, 12-7/16 x 7 drive

1шт.

3

457512R1

SPACER, pipe

1шт.

4

10520F

SEAL

rotor shaft oil seal

2шт.

5

452292R1

CAP, rotor shaft oil seal

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

6

452297R1

SHIM, rotor shaft oil seal cap .005 (or as required)

4шт.

6

452298R1

SHIM, rotor shaft oil seal cap .010 (or as required)

8шт.

7

ST954

BEARING, CUP,1.7505" ID x 3.4385" OD x 1.2015"

CUP, rotor shaft roller bearing

2шт.

8

ST2005A

ROLLER BEARING,44.45mm ID x 30.94mm W

CONE, rotor shaft roller bearing

1шт.

9

469596R1

PINION, 21-T drive gear

1шт.

117992

WOODRUFF KEY,#E, 3/8" x 1 1/4", HT

KEY, 3/8 x 1-1/4 SAE E Woodruff

1шт.

10

457476R1

SHAFT, rotor

1шт.

10516D

NUT, 1-1/8 NF slt-hex. jam

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

11

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto-sq-hd pipe drain

2шт.

12

457504R1

STUD, gear case adjusting

1шт.

102637

NUT,1/2"-13, G5

2шт.

13

469592R2

GEAR, 32-T bevel drive

1шт.

117996

WOODRUFF KEY,#24, 1/4" x 1 1/2", HT

KEY, 1/4 x 1-1/2 SAE 24 Woodruff

1шт.

14

457490R1

GASKET, gear case cover

1шт.

15

457499R11

COVER ASSY, gear case

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

16

457505R1

SNAP RING,#137, Ext

Ring, Snap, , PTO shaft #137, Ext

2шт.

17

ST204A

BALL BEARING,35mm ID x 71.99mm OD x 17mm W

BEARING, PTO shaft ball

1шт.

18

Q249

WASHER, 1-5/32 x 2-3/8 x 14 ga flat

1шт.

19

2778F

PLUG

1/2 std-sq-hd pipe filler

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

20

457467R11

CASE W/PLUG ASSY, gear

1шт.

21

469594R1

SHAFT, PTO

1шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, , ESNA 1/4" x 1 3/8", Slotted

1шт.

22

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING W/SNAP RING, PTO shaft ball

1шт.

23

451918R1

SHIM, PTO shaft brg cap .005 (or as required)

2шт.

23

451919R1

SHIM, PTO shaft brg cap .010 (or as required)

6шт.

24

451917R2

CAP, PTO shaft brg

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

46976D

SEAL

PTO shaft oil

1шт.

26

457590R91

BEARING

flanged, 1963 & 1964, order flange 473091R1, flange 473092R1 and bearing 473093R91

1шт.

26

478521R91

BEARING W/FLANGES & FITTINGS, PTO shaft, 1964 & since

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 UNF lub

1шт.

27

469595R1

SHEAVE, conveyor drive

1шт.

17483R1

BOLT, 5/16 x 1-5/8 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

102892

SET SCREW

3/8 x 1/2 sq-hd cup pt set

1шт.

615227R1

WASHER

1-1/32 x 1-3/4 x 11 ga flat

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga flat (or as required)

4шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 2-1/4 sq parallel

1шт.
