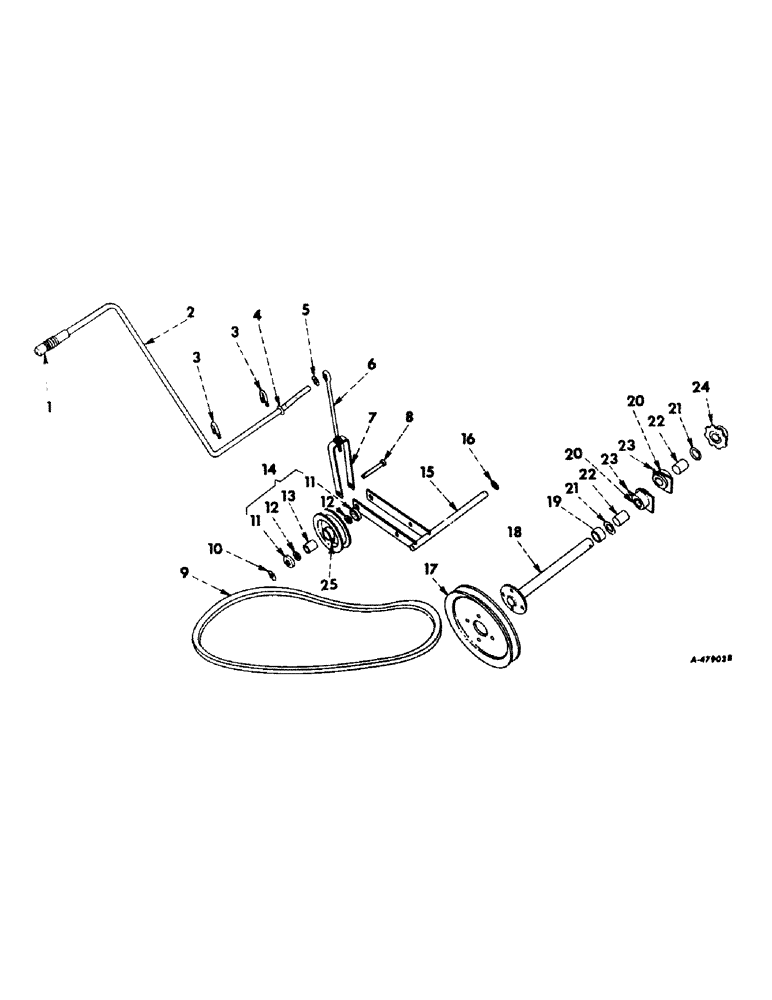

Запчасти Case IH 45 (A-11) - CONVEYOR DRIVE AND CLUTCH, 45 BLOWER

1

459386R1

GRIP, clutch bail handle

1шт.

2

457513R1

BAIL, clutch

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

3шт.

3

457524R1

BOLT,U, 7/16" - 14 x 2 5/32", CST

U-BOLT, clutch bail

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

4

12258R1

WASHER

21/32 x 1-1/4 x 11 ga flat

1шт.

5

551177R1

WASHER

21/32 x 1-1/4 x 16 ga flat

1шт.

6

457514R1

LINK, clutch control

1шт.

102635

NUT,3/8"-16, G5

2шт.

103221

WASHER

1шт.

7

457507R1

YOKE, idler

1шт.

8

Q3550

PIN

1/2 x 3-1/8 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

469615R1

V-BELT, HB, Section conveyor drive

1шт.

10

Q5035

WASHER

17/32 x 1 x 16 ga flat

1шт.

11

464899R1

CUP WASHER

cupped

2шт.

12

464900R1

THRUST WASHER

idler pulley thrust

2шт.

13

464898R1

BUSHING

BEARING, idler pulley

1шт.

14

469611R91

PULLEY

W/BRG BUSHING ASSY, idler

1шт.

15

469598R11

ARM ASSEMBLY, idler

1шт.

17650R1

BOLT, 1/2 x 3-1/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

16038R1

WASHER

11/32 x 1 x 11 ga

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

16

Q3501

WASHER

25/32 x 1-1/4 x 16 ga flat

1шт.

17

575441R91

PULLEY ASSY, conveyor drive shaft

1шт.

18

469570R11

SHAFT ASSY, conveyor drive

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

450949R1

SPACER, conveyor drive shaft pulley

1шт.

20

457536R11

BOX W/BUSHING ASSEMBLY, bearing

2шт.

21

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga (or as required)

6шт.

22

459095R1

BUSHING, bearing box

2шт.

23

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PT 67 degree lub

2шт.

24

457470R1

SPROCKET 8-T conveyor drive

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , ESNA 5/16" x 1 3/4", Slotted

1шт.

25

87414

LUBE NIPPLE,1/4" - 28

FITTING 1/4-28 self tapping str lub

1шт.
