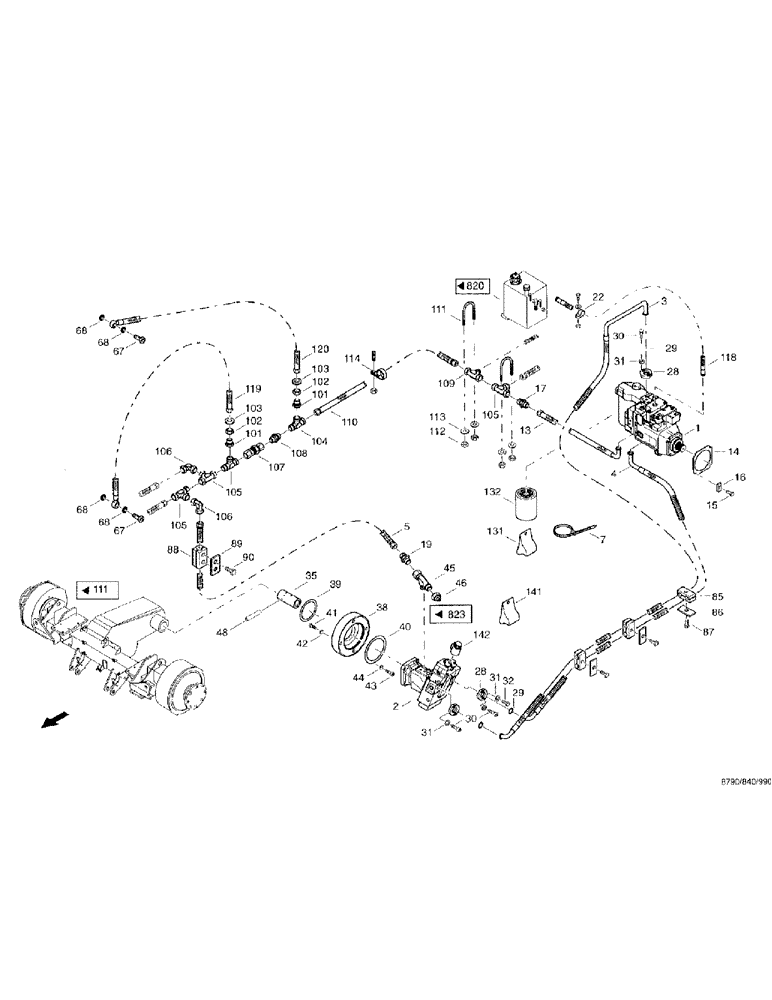

Запчасти Case IH 8790 (199) - TRAVEL GEAR HYDRAULIC EQUIPMENT (35) - HYDRAULIC SYSTEMS

1

03001043

PUMP

90R100

1шт.

2

02058783

MOTOR

engine, 51D110

1шт.

3

06549073

HOSE

line, 4SH25SFL6-105SFL6-

1шт.

4

06549081

HOSE

line, 4SH25SFL6-105SFL6-90

1шт.

5

06544374

HYDRAULIC HOSE

line, 1SN20DKOLDKOL20:25-1590

1шт.

7

07070992

COLLAR

band, 288 x 4.8 TSL-290-S

2шт.

13

06544856

HYDRAULIC HOSE

line, 1SN25DKOLDKOL-90- 25:32-43

1шт.

14

02059003

GASKET

flange

1шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

16

36212576

WASHER

24 x 12 x 5

4шт.

17

03436646

ADAPTER

CONNECTOR male, GE35-L/1 5/8-12UN/ OMD

1шт.

19

03436525

ADAPTER

CONNECTOR male, GE22-L/1 1/16-12UN/ OMD

2шт.

22

06659142

CLAMP

hose clip, AL23-35 DIN3017 W1

2шт.

28

03435733

FLANGE ASSY

half, HOCHDRUCK 6000PSI

8шт.

29

01132512

O-RING,32.92mm ID x 3.53mm Width

32.92 x 3.53 90SHORE

4шт.

30

06287293

SCREW

cheese-head, 7/16ZOLL-14UNC-2A x 45 DIN912

14шт.

31

06455863

WASHER, LOCK

spring, A12 DIN128 FST

16шт.

32

06336961

CAPSCREW

hexagon head, 7/16ZOLL-14UNC2A x 45 ISO4017

2шт.

35

36212592

COUPLING JOINT

1шт.

38

36212568

FLANGE

intermediate

1шт.

39

638-54125

O-RING,3.55mm Thk x 125mm ID, Cl 5, 75 Duro

125.00 x 3.55 DIN3771 N-NBR70

1шт.

40

01139527

O-RING

160.00 x 4.00 DIN3771 N-NBR70

1шт.

41

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

42

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

43

864-16045

HEX SOC SCREW,M16 x 45mm, Cl 8.8

Cheese-head, DIN 912

4шт.

44

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

45

03436340

SCREW

CONNECTION, ET22-L/OMD

1шт.

46

36209074

TEMPERATURE SENDER

pick-up k

1шт.

48

838-5655

LOCK PIN,M6 x 55, Slotted

6 x 55 DIN1481 FST

2шт.

67

06106877

BANJO BOLT,M4

hollow, 28 (M30 x 1.5) DIN7643

2шт.

68

04102248

GASKET

SEAL, A30 x 36 DIN7603 CU

4шт.

85

06648027

SHIN

clamping halves, Z-KP-5-G-38-38 DIN3015 PP

2шт.

86

06647862

COVER

PLATE, Z-DP-5 DIN3015 W1

2шт.

87

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

2шт.

88

06645563

SHIN

clamping halves, L-KP-4-G-28 DIN3015 PP

1шт.

89

06646000

COVER

PLATE, L-DP-4 DIN3015 W1

1шт.

90

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

101

03655672

FITTING

SOCKET, L28 DIN3910 ST

2шт.

102

03655648

NUT

hex, M36 x 2 DIN80705 14H

2шт.

103

06655516

WASHER

thrust, S37 x 47 DIN988 FST

4шт.

104

03432876

SCREW

ET28-L/OMD

1шт.

105

03435268

FITTING

right-angle screwing, EL28-L/OMD

4шт.

106

03434685

FITTING

threaded elbow joint, EW28-L/OMD

3шт.

107

03127835

CHECK VALVE

RHDI R1-2BAR

1шт.

108

03437181

ADAPTER

CONNECTOR male, EGE28-LR-ED

2шт.

109

03436670

RESTRICTOR

fitting x TR28/22/28

1шт.

110

06544880

HYDRAULIC HOSE

line, 1SN25DKOLDKOL45-1725

1шт.

111

36260173

CINTRE

BOW BRACKET

2шт.

112

825-1406

NUT,M6, Cl 8

4шт.

113

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

114

98039906

FIXING BRACKET

CLIP attaching, RSGU1.38/20-W1

1шт.

118

06549098

HOSE

line, 2TE20DKOL90-000-1460

1шт.

119

06545350

HYDRAULIC HOSE

line, 2SN25DKOLRN-1480

1шт.

120

06545367

HYDRAULIC HOSE

line, 2SN25DKOLRN-1770

1шт.

131

03253785

SEAL PACKAGE

KIT, 90P100

1шт.

132

03224756

FILTER CARTRIDGE

pressure

1шт.

141

03253793

SEAL PACKAGE

KIT, 51 x 110

1шт.

142

03253752

MAGNET

solenoid k, 12V

1шт.
