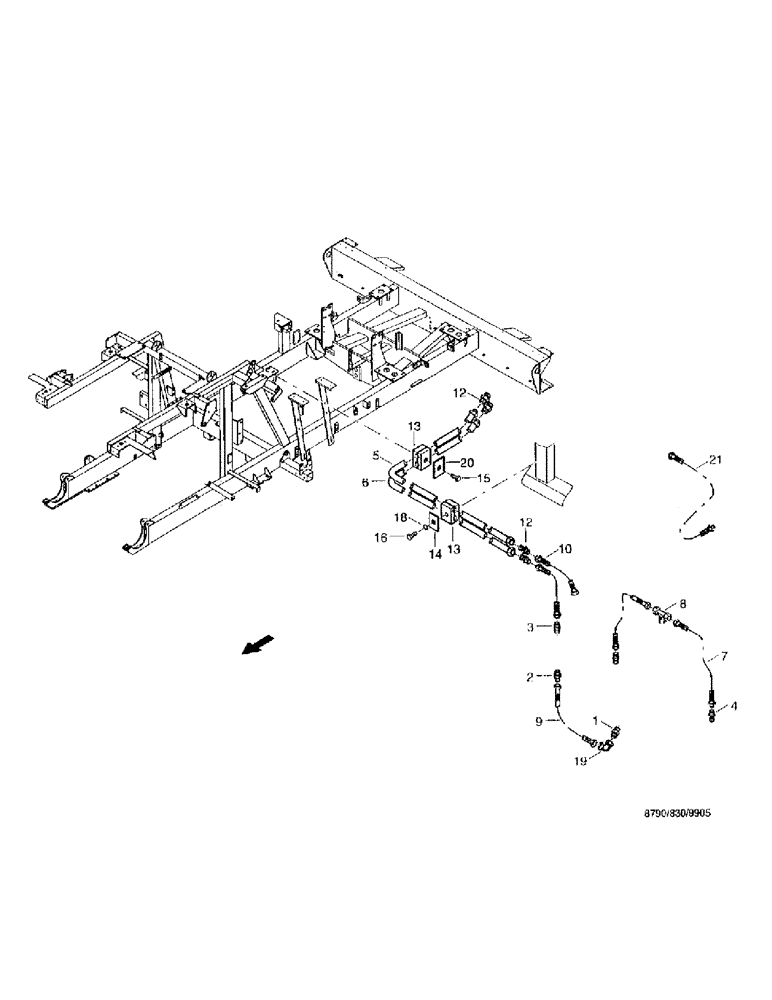

Запчасти Case IH 8790 (198) - WORKING HYDRAULICS, GEARBOX COOLING (35) - HYDRAULIC SYSTEMS

1

03433932

ADAPTER

CONNECTOR male, GE18-LM-ED/OMD

1шт.

2

03437220

ADAPTER

CONNECTOR male, x GE18-L/R3/8

1шт.

3

03432714

ADAPTER

CONNECTOR male, GE12-LR-ED/OMD

1шт.

4

03436582

ADAPTER

CONNECTOR male, GE8-L/M18 x 1.5/OMD

2шт.

5

02888166

TUBE ASSY.

PIPE cpl., 12 x 1.5

1шт.

6

02888174

TUBE ASSY.

PIPE cpl., 12 x 1.5

1шт.

7

02888182

TUBE ASSY.

PIPE cpl., 8 x 1.5

2шт.

8

03436574

RESTRICTOR

fitting x TR8/12/8-L

1шт.

9

06544212

HYDRAULIC HOSE

line, 1SN16DKOLDKOL-350

1шт.

10

06544470

HYDRAULIC HOSE

line, 1SN10DKOLDKOL-700

2шт.

12

03605831

FITTING

SOCKET, L12 DIN3902 ST

2шт.

13

06647508

SHIN

clamping halves, Z-KP-1-R-12-12 DIN3015 PP

2шт.

14

06647524

COVER

PLATE, Z-DP-1 DIN3015 W1

1шт.

15

06301638

CAPSCREW

hexagon head, M6 x 35/8.8-A3C ISO4014

2шт.

16

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

1шт.

18

06510228

WASHER

6.4 DIN9021

1шт.

19

03434267

FITTING

threaded elbow joint, EW18-L/OMD

1шт.

20

06647766

PLATE ASSY.

Z-AP-1 DIN3015 W1 OHNE VER

1шт.

21

06501838

HYDRAULIC HOSE

line, 1SN10CELDKOL90-450

2шт.
