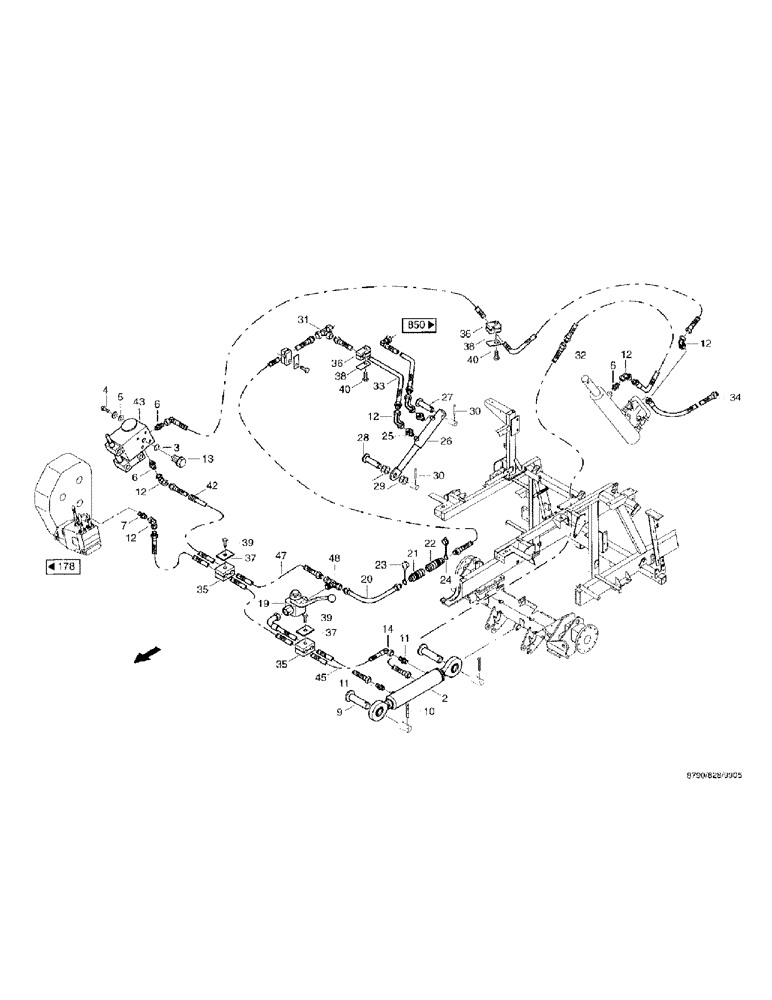

Запчасти Case IH 8790 (196) - WORKING HYDRAULICS, PIVOTED SYSTEM, FEEDING SYSTEM (35) - HYDRAULIC SYSTEMS

2

03127216

CYLINDER ASSY.

48/22 x 200

1шт.

3

01130656

O-RING

14.00 x 1.78 NBR 70SHORE

1шт.

4

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

6

03432730

ADAPTER

CONNECTOR male, GE8-LR-ED/OMD

2шт.

7

03436582

ADAPTER

CONNECTOR male, GE8-L/M18 x 1.5/OMD

1шт.

9

07634711

LARGE PIN

PIN, LARGE B20H11 x 55 x 45 DIN1444 ST

2шт.

10

06403098

PIN, SPLIT (COTTER)

PIN, COTTER splint, 5 x 45 DIN94 ST

2шт.

11

03434958

ADAPTER

CONNECTOR male, GE10-LM-ED/OMD

2шт.

12

03432521

FITTING

threaded elbow joint, EW8-L/OMD

6шт.

13

03435477

SCREW

locking, VSTIR1/4-ED

1шт.

14

06545527

LINE

hose, 1SNK6DKOL90-6:8DKOL- 1550

1шт.

19

03601844

COCK

DN6

1шт.

20

02887928

TUBE ASSY.

PIPE cpl.

1шт.

21

03436783

TRANSMISSION SLEEVE

1шт.

22

03436791

VANEUM GAUGE

PLUG

1шт.

23

98046778

DUST CAP

PLUG, HS04-0-RT001

1шт.

24

03436806

PLUG

1шт.

25

03433112

ADAPTER

CONNECTOR male, GE8-LM-ED/OMD

2шт.

26

03127642

CYLINDER ASSY.

32/20 x 195

1шт.

27

07640525

LARGE PIN

PIN, LARGE B16H11 x 70 x 64 DIN1444 ST

1шт.

28

07640420

LARGE PIN

PIN, LARGE B16H11 x 45 x 39 DIN1444 ST

1шт.

29

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

30

06401520

PIN, SPLIT (COTTER)

PIN, COTTER splint, 4 x 25 DIN94 ST

2шт.

31

03434154

FITTING

SOCKET, L8 DIN3908 ST

1шт.

32

06544928

HYDRAULIC HOSE

line, 1SNK6DKOLDKOL-2150

1шт.

33

06545334

HYDRAULIC HOSE

line, 1SNK6DKOLDKOL-380

1шт.

34

06545543

LINE

hose,1SNK6DKOLDKOL-800 MIT SCHU

1шт.

35

06645772

CLAMP

halves, Z-KP-2-G-12.7-12.7 DIN3015 PP

2шт.

36

06646363

SHIN

clamping halves, L-KP-0-R-12 DIN3015 PP

3шт.

37

06647565

COVER PLATE

PLATE, Z-DP-2 DIN3015 W1

2шт.

38

06645684

COVER

PLATE, L-DP-0 DIN3015 W1

3шт.

39

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

40

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

3шт.

42

01451614

SPIRAL

flat, 13

1шт.

43

02038876

PUMP

hand

1шт.

45

06545592

LINE

hose,1SNK6DKOL6:8DKOL90- 580

1шт.

47

06549200

HOSE

line, 1SNK6DKOLDKOL90-H100

1шт.

48

03435895

SCREW

CONNECTION, ET8-L/OMD

1шт.
