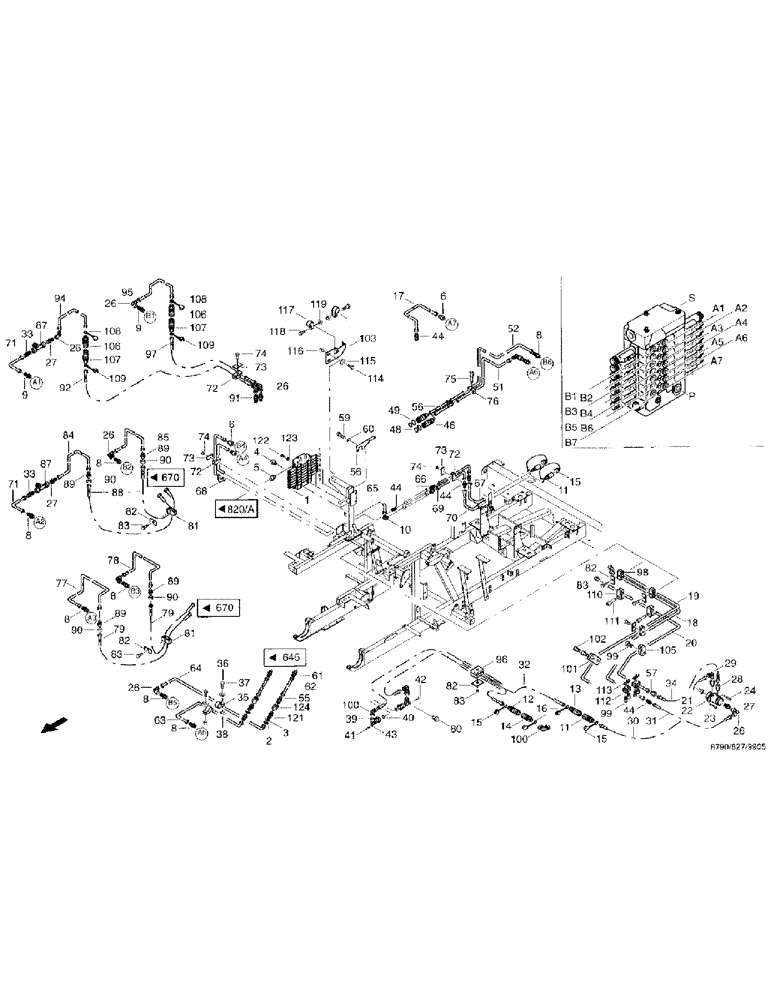

Запчасти Case IH 8790 (192) - WORKING HYDRAULICS, SETTING MECHANISM (35) - HYDRAULIC SYSTEMS

1

03126922

VALVE

directional control, SB12LS-7

1шт.

2

36078021

WASHER

thrust

2шт.

3

03123198

PROTECTIVE COVER

panel, 1530147007 1.5

1шт.

4

03433024

ADAPTER

male connector, GE15-LM-ED/OMD

1шт.

5

03433932

ADAPTER

male connector, GE18-LM-ED/OMD

1шт.

6

03433200

ADAPTER

male connector, GE12-L/M18 x 1.5-ED/ OMD

3шт.

8

03436582

ADAPTER

male connector, GE8-L/M18 x 1.5/OMD

8шт.

9

03436863

TUBE

male connector, GE10-L/M18 x 1.5/ED/ OMD/A3C

2шт.

10

03433008

FITTING

SOCKET, L12 DIN3905 ST

1шт.

11

03437165

TRANSMISSION SLEEVE

HP10-1-N1218

3шт.

12

03437003

TRANSMISSION SLEEVE

HP10-1-L1218

1шт.

13

03437011

VANEUM GAUGE

PLUG, HP10-2-L1218

1шт.

14

03437124

ELEC. TERMINAL PIN

PLUG, HP10-2-L1522

1шт.

15

98029098

PLUG

HP10-9-RT001

6шт.

16

03437028

DUST CAP

PLUG, HP10-0-RT001

2шт.

17

02887751

TUBE ASSY.

PIPE cpl.

1шт.

18

02887768

TUBE ASSY.

PIPE cpl.

1шт.

19

02887776

TUBE ASSY.

PIPE cpl.

1шт.

20

02887784

TUBE ASSY.

PIPE cpl.

1шт.

21

03124904

VALVE BODY

1шт.

22

03124953

CHECK VALVE

1шт.

23

01129927

O-RING

21.95 x 1.78 NBR 90SHORE A

2шт.

24

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

cheese-head, M8 x 40 DIN912 8.8

2шт.

26

03432521

FITTING

threaded elbow joint, EW8-L/OMD

8шт.

27

03432730

ADAPTER

male connector, GE8-LR-ED/OMD

3шт.

28

03432747

ADAPTER

male connector, GE12-L/R1/2-ED/OMD

2шт.

29

03433274

FITTING

threaded elbow joint, EW12-L/OMD

1шт.

30

06544157

HYDRAULIC HOSE

line, 1SN10DKOLDKOL-760

1шт.

31

06543156

HYDRAULIC HOSE

line, 1SN10DKOLDKOL90-600

1шт.

32

06545471

LINE

hose, MIT SPIRALSCHUTZ

2шт.

33

03434845

ADAPTER

male connector, GE10-LR-ED/OMD/A3C P0000

2шт.

34

06544944

HYDRAULIC HOSE

line, 1SNK6DKOLDKOL-790

1шт.

35

02888254

FIXING BRACKET

CLIP pipe, RSGU1.30/20-W1 DIN3016

2шт.

36

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

38

06116155

NUT,M8, Cl 8

2шт.

39

03434507

FITTING

angle port x BFW15-L/LK35

2шт.

40

01129613

O-RING,20mm ID x 2.5mm Width

20.00 x 2.50 NBR 90SHORE A

2шт.

41

864-6022

HEX SOC SCREW,M6 x 22mm, Cl 8.8

cheese-head, M6 x 22 DIN912 8.8

4шт.

42

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

cheese-head, M6 x 35 DIN912 8.8

4шт.

43

06577036

SPECIAL WASHER

M6

8шт.

44

03605831

FITTING

socket, L12 DIN3902 ST

7шт.

46

03437044

TRANSMISSION SLEEVE

HP10-1-L0814

2шт.

48

800-1138

SNAP RING,M38, Ext

snap, 38 x 1.75 DIN471 FST

4шт.

49

06626890

SHIM

40 x 50 x 2 DIN988

4шт.

51

02887792

TUBE ASSY.

PIPE cpl.

1шт.

52

02887807

TUBE ASSY.

PIPE cpl.

1шт.

55

03605366

FITTING

socket, L8 DIN3902 ST

2шт.

56

06544534

HYDRAULIC HOSE

line, 1SNK6DKOL-45CEL-610

2шт.

57

03433137

FITTING

reducing adapter, GERADE x GR12/8-L

1шт.

58

36289232

SUPPORT

BRACKET

1шт.

59

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

60

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

61

03437261

FITTING

male connector, GE8-L/R1/2-ED/OMD/ A3C 6

2шт.

62

06545832

HOSE

line, 1SNK6DKOL90DKOL-650

2шт.

63

02887815

TUBE ASSY.

PIPE cpl.

1шт.

64

02887823

TUBE ASSY.

PIPE cpl.

1шт.

65

02887831

TUBE ASSY.

PIPE cpl.

1шт.

66

02887848

TUBE ASSY.

PIPE cpl.

1шт.

67

02887856

TUBE ASSY.

PIPE cpl.

1шт.

68

02887864

TUBE ASSY.

PIPE cpl.

1шт.

69

02887872

TUBE ASSY.

PIPE cpl.

1шт.

70

02887880

TUBE ASSY.

PIPE cpl.

1шт.

71

02888238

TUBE ASSY.,50, 55 mm Length

PIPE cpl.

2шт.

72

06647508

SHIN

clamping halves, Z-KP-1-R-12-12 DIN3015 PP

3шт.

73

06647524

COVER

PLATE, Z-DP-1 DIN3015 W1

3шт.

74

06301638

CAPSCREW

BOLT hexagon head, M6 x 35/8.8-A3C ISO4014

3шт.

75

06648228

SCREW

L-AS-1-W1 DIN3015

1шт.

76

06647813

SHIN

clamping halves, Z-KP-1-R-8-8 DIN3015 PP

1шт.

77

02887936

TUBE ASSY.

PIPE cpl.

1шт.

78

02887944

TUBE ASSY.

PIPE cpl.

1шт.

79

06544550

HYDRAULIC HOSE

line, 2SNK6DKOLDKOL-2460

2шт.

80

03435477

SCREW

locking, VSTIR1/4-ED

1шт.

81

06645651

SHIN

clamping halves, Z-KP-2-G-13.5-13.5 DIN3015 PP

2шт.

82

06647565

COVER PLATE

PLATE, Z-DP-2 DIN3015 W1

6шт.

83

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

84

02887952

TUBE ASSY.

PIPE cpl.

1шт.

85

02887960

TUBE ASSY.

PIPE cpl.

1шт.

87

98045988

VALVE

throttle, TYP FT-125/2-01-14

2шт.

88

06544622

HYDRAULIC HOSE

line, 1SNK6DKOLDKOL-1930

2шт.

89

97083112

FITTING

socket, L8 A3C x SV8-L DIN3910 MIT GEG

4шт.

90

03601860

NUT

hex, M14 x 1.5 DIN80705 14H

4шт.

91

03433112

ADAPTER

male connector, GE8-LM-ED/OMD

2шт.

92

06544567

HYDRAULIC HOSE

line, 1SNK6DKOLDKOL-1170

1шт.

94

02887977

TUBE ASSY.

PIPE cpl.

1шт.

95

02887985

TUBE ASSY.

PIPE cpl.

1шт.

96

06647821

SHIN

clamping halves, Z-KP-2-G-15-15 DIN3015 PP

1шт.

97

06545326

HYDRAULIC HOSE

line, 1SNK6DKOLDKOL-1070

1шт.

98

06648308

CLAMP

clamping halves, Z-KP-2-R-15-12 DIN3015 PP

3шт.

99

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

cheese-head, M6 x 20 DIN912 8.8

11шт.

100

03433547

ELBOW

threaded elbow joint, EW15-L/OMD

3шт.

101

06647620

SHIN

clamping halves, L-KP-2-R-15 DIN3015 PP

1шт.

102

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Cheese-head, DIN 912

2шт.

103

36289015

SUPPORT

BRACKET

1шт.

105

06646363

SHIN

clamping halves, L-KP-0-R-12 DIN3015 PP

1шт.

106

03436783

TRANSMISSION SLEEVE

2шт.

107

03436791

VANEUM GAUGE

PLUG

2шт.

108

98046778

DUST CAP

PLUG, HS04-0-RT001

2шт.

109

03436806

PLUG

2шт.

110

06645731

SHIN

clamping halves, Z-KP-1-R-10-12 DIN3015 PP

2шт.

111

06648228

SCREW

L-AS-1-W1 DIN3015

2шт.

112

06647581

SHIN

clamping halves, L-KP-1-R-12 DIN3015 PP

2шт.

113

06647532

NUT

mounting rail, L-TM DIN3015 W1

4шт.

114

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

115

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8.4 DIN9021 140HV

4шт.

116

06116155

NUT,M8, Cl 8

2шт.

117

02888246

FIXING BRACKET

CLIP pipe, RSGU1.8/15-W1 DIN3016

2шт.

118

06334445

CAPSCREW

BOLT hexagon head, M6 x 20/8.8-A3C ISO4017

2шт.

119

060527480

NUT

hex, M6 DIN985 8

2шт.

121

36078013

MANIFOLD VALVE

Intake body

1шт.

122

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

123

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

124

03436582

ADAPTER

male connector, GE8-L/M18 x 1.5/OMD

2шт.
