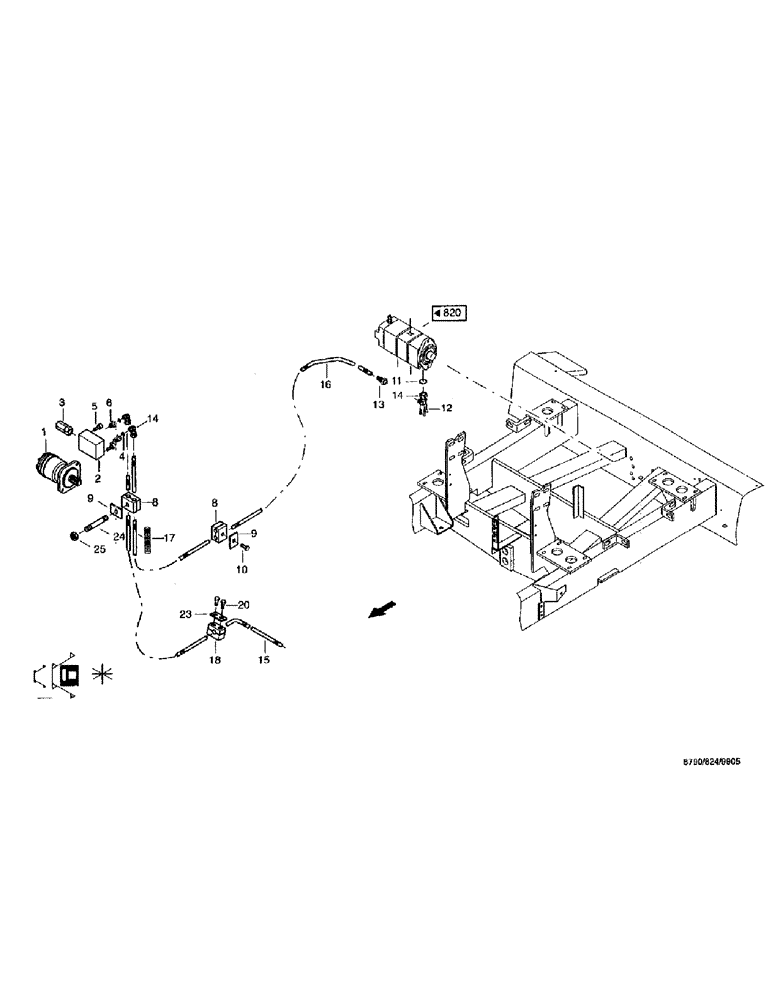

Запчасти Case IH 8790 (186) - WORKING HYDRAULICS, SCREENING CYLINDER DRIVE, HYDRAULICALLY (35) - HYDRAULIC SYSTEMS

1

02058822

HYDRAULIC MOTOR

OMP50/40

1шт.

2

03124904

VALVE BODY

1шт.

3

03127546

VALVE, PRESSURE RELI

EF

1шт.

4

01129927

O-RING

21.95 x 1.78 NBR 90SHORE A

2шт.

5

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

cheese-head, M8 x 40 DIN912 8.8

2шт.

6

03432747

ADAPTER

male connector, GE12-L/R1/2-ED/OMD

2шт.

8

06647557

SHIN

clamping halves, Z-KP-2-R-18-18 DIN3015 PP

2шт.

9

06647565

COVER PLATE

PLATE, Z-DP-2 DIN3015 W1

2шт.

10

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

11

01129605

O-RING,26.25mm ID x 2.5mm Width

26.00 x 2.50 NBR 90

1шт.

12

864-6022

HEX SOC SCREW,M6 x 22mm, Cl 8.8

cheese-head, M6 x 22 DIN912 8.8

4шт.

13

98045985

FITTING

screwing, G.FLA. BFG 12-PL/LK 35

1шт.

14

03433274

FITTING

threaded elbow joint, EW12-L/OMD

3шт.

15

06545711

HOSE

PHD110 x 3450AOLAOL

1шт.

16

06545728

HOSE

PHD110 x 2050AOLAOL

1шт.

17

01451614

SPIRAL

flat, 13

2шт.

18

06648156

SHIN

clamping halves, L-KP-2-R-18 DIN3015 PP

1шт.

20

06301638

CAPSCREW

hexagon head, M6 x 35/8.8-A3C ISO4014

2шт.

23

06645241

WELDED END

PLATE, L-AP-K-2 DIN3015 W1

1шт.

24

06046872

STUD

SCREW pin, M8 x 25 DIN835 8.8

1шт.

25

825-1408

NUT,M8, Cl 8

1шт.
