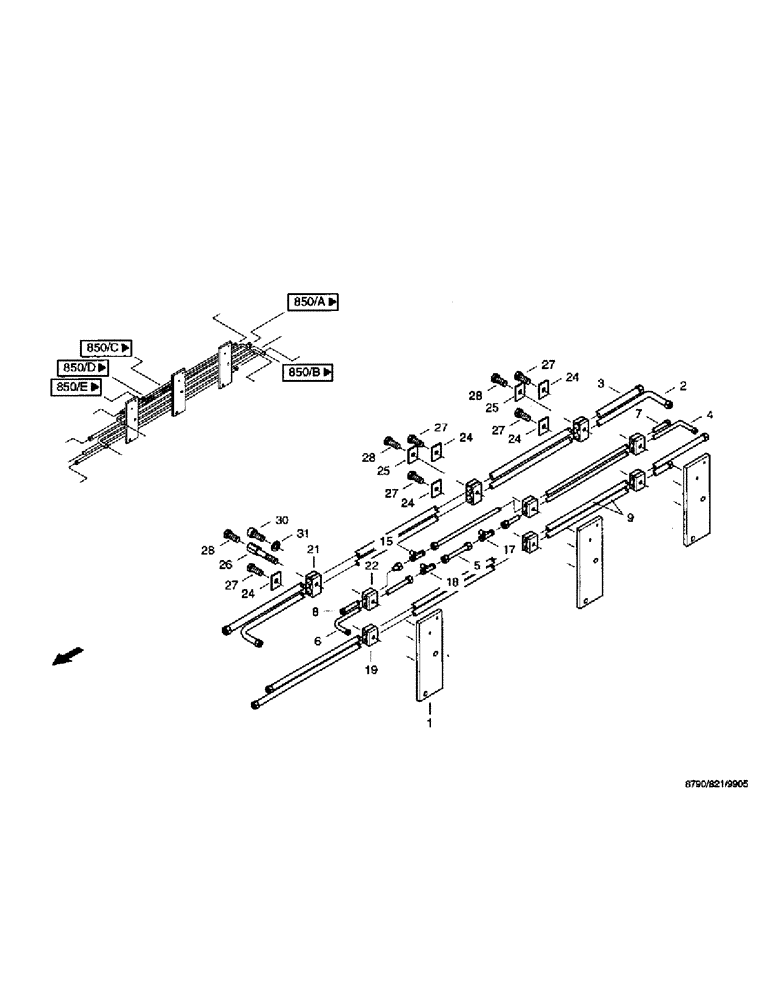

Запчасти Case IH 8790 (182) - WORKING HYDRAULICS, CABLE SET (35) - HYDRAULIC SYSTEMS

1

36272097

CONNECTING STRIP

metal, R

3шт.

2

02887165

TUBE

PIPE cpl.

1шт.

3

02887173

TUBE

PIPE cpl.

1шт.

4

02887181

TUBE

PIPE cpl.

1шт.

5

02887198

TUBE ASSY.

PIPE cpl.

1шт.

6

02887278

TUBE ASSY.

PIPE cpl.

1шт.

7

02887286

TUBE ASSY.

PIPE cpl.

1шт.

8

02887194

PIPE cpl.

1шт.

9

02887300

TUBE ASSY.

PIPE cpl.

2шт.

15

03432618

FITTING

socket, L12 DIN3908 ST

1шт.

17

03402083

SCREW

connection, ET10-L/OMD

1шт.

18

03610234

FITTING

socket, L10 DIN3908 ST

1шт.

19

06647508

SHIN

clamping halves, Z-KP-1-R-12-12 DIN3015 PP

3шт.

21

06647637

SHIN

clamping halves, Z-KP-2-R-18-15 DIN3015 PP

3шт.

22

06645731

SHIN

clamping halves, Z-KP-1-R-10-12 DIN3015 PP

3шт.

24

06647524

COVER

PLATE, Z-DP-1 DIN3015 W1

5шт.

25

06647565

COVER PLATE

PLATE, Z-DP-2 DIN3015 W1

1шт.

26

06648211

SCREW

Z-AS-2-W1 DIN3015

2шт.

27

06301638

CAPSCREW

BOLT hexagon head, M6 x 35/8.8-A3C ISO4014

5шт.

28

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

30

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

cheese-head, M6 x 30 DIN912 8.8

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
