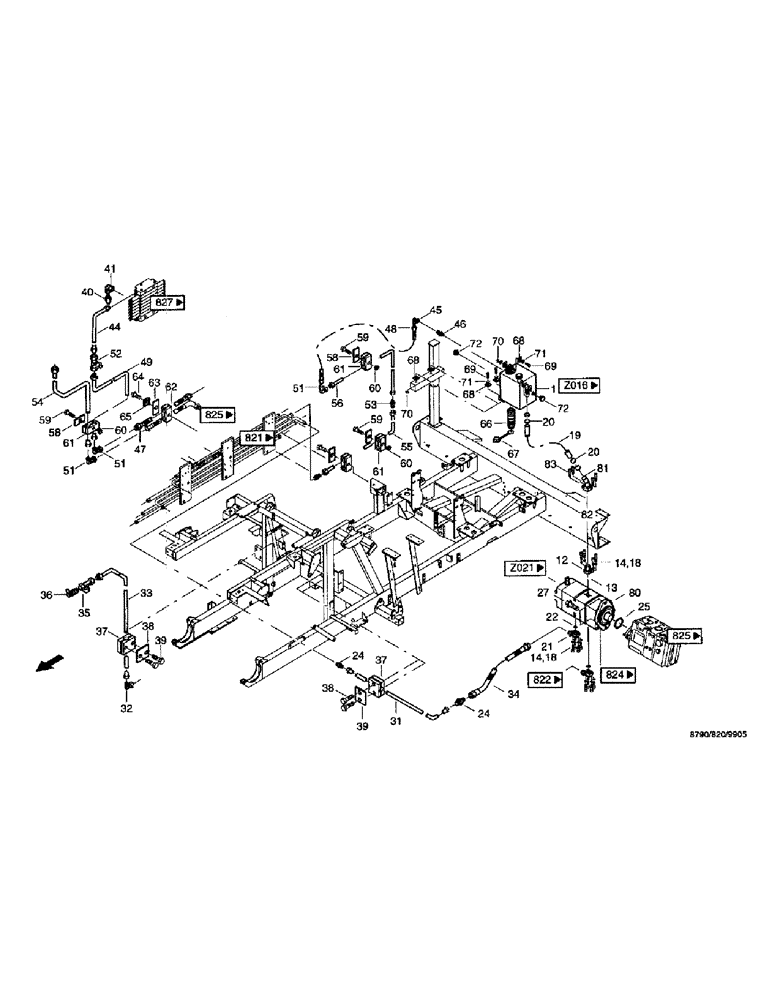

Запчасти Case IH 8790 (179) - WORKING HYDRAULICS, OIL TANK, PUMP (35) - HYDRAULIC SYSTEMS

1

02862495

OIL RESERVOIR

tank

1шт.

12

03434025

FLANGE

fitting x BFG22-L/LK40

1шт.

13

01129605

O-RING,26.25mm ID x 2.5mm Width

26.00 x 2.50 NBR 90

1шт.

14

864-6022

HEX SOC SCREW,M6 x 22mm, Cl 8.8

cheese-head, M6 x 22 DIN912 8.8

12шт.

18

06455742

WASHER, LOCK

spring, A6 DIN128 FST

12шт.

19

03124584

HOSE

suction, SG140 R4 40

1шт.

20

06659038

CLAMP

CLIP hose, AL40-60 DIN3017 W1-1

4шт.

21

03434000

FLANGE

fitting x BFG15-L/LK35/A3C

2шт.

22

01129613

O-RING,20mm ID x 2.5mm Width

20.00 x 2.50 NBR 90SHORE A

2шт.

24

03606254

FITTING

socket, L15 DIN3902 ST

1шт.

25

01129783

O-RING

82.27 x 1.78 N-FPM80D-HMS11

1шт.

26

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

cheese-head

6шт.

27

06336953

CAPSCREW

BOLT hexagon head, 3/8ZOLL-16UNC-2A x 25 ISO401

2шт.

31

02887317

TUBE ASSY.

PIPE cpl.

1шт.

32

03608850

FITTING

socket, L15 DIN3905 ST

1шт.

33

02887325

TUBE ASSY.

PIPE cpl.

1шт.

34

06549305

HOSE

line, 1SN12CELDKOL-90-950

1шт.

35

03434033

TEE

screw connection, ET15-L/OMD

1шт.

36

03433563

FITTING

measurement connection, VKA3/15-L

1шт.

37

06647620

SHIN

clamping halves, L-KP-2-R-15 DIN3015 PP

2шт.

38

06647540

COVER

plate, L-DP-2 DIN3015 W1

2шт.

39

06301638

CAPSCREW

BOLT hexagon head, M6 x 35/8.8-A3C ISO4014

4шт.

40

03123140

UNION

connection, GERADE GVO15-L/15-L

1шт.

41

03433547

ELBOW

threaded elbow joint, EW15-L/OMD

2шт.

44

02887333

TUBE ASSY.

PIPE cpl.

1шт.

45

03434267

FITTING

threaded elbow joint, EW18-L/OMD

3шт.

46

03432706

ADAPTER

male connector, GE18-LR-ED/OMD

1шт.

47

06543486

HYDRAULIC HOSE

line, 1SN20DKOL20:16DKOL 20:25-

1шт.

48

06545414

LINE

hose, 1SN16DKOLDKOL-360

1шт.

49

02887341

TUBE ASSY.

PIPE cpl.

1шт.

51

03608867

FITTING

socket, L18 DIN3905 ST

4шт.

52

03435026

RESTRICTOR

fitting x TR18/15/18-L

1шт.

53

03432587

FITTING

socket, L18 DIN3902 ST

2шт.

54

02887358

TUBE ASSY.

PIPE cpl.

1шт.

55

02887366

TUBE ASSY.

PIPE cpl.

1шт.

56

02887374

TUBE ASSY.

PIPE cpl.

1шт.

58

06647565

COVER PLATE

plate, Z-DP-2 DIN3015 W1

3шт.

59

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

60

06647573

NUT

nounting rail, Z-TM DIN3015 W1

2шт.

61

06647557

SHIN

clamping halves, Z-KP-2-R-18-18 DIN3015 PP

4шт.

62

06648164

SHIN

clamping halves, Z-KP-4-G-28-28 DIN3015 PP

1шт.

63

06647774

PLATE

cover, Z-DP-4 DIN3015 W1

1шт.

64

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

65

06648293

STIFFENER

locking against pivoting, Z-VS-2-W1 DIN3015 F.GRÖSSE

1шт.

66

03437140

VANEUM GAUGE

plug, HP10-2-AGF08

1шт.

67

03437108

DUST CAP

plug, HP10-0-GE001

1шт.

68

01445038

PAD, RUBBER

50 x 50 x 10 55SHORE

6шт.

69

614-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8, Full Thd

ISO 4017

3шт.

70

86500689

NUT,M10 x 1.5, Cl 10

3шт.

71

06510285

WASHER

10.5 DIN9021 100HV

4шт.

72

03433266

VANEUM GAUGE

locking screw, VSTIR1/2-ED

2шт.

80

03128588

PUMP, HYDRAULIC

gear pump, 4 + 8 + 14GS/R

1шт.

81

02888221

FITTING

instrument, LK55

1шт.

82

01132512

O-RING,32.92mm ID x 3.53mm Width

32.92 x 3.53 90SHORE

1шт.

83

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

Cheese-head

4шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
