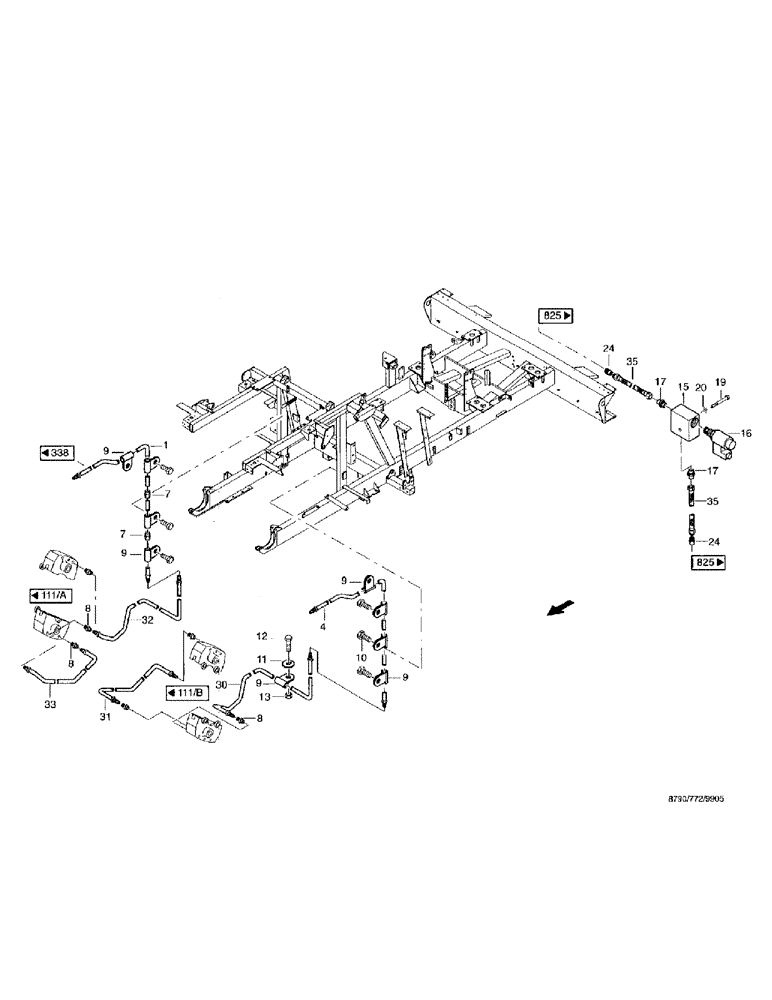

Запчасти Case IH 8790 (177) - BRAKE SYSTEM, HYDRAULICALLY (33) - BRAKES & CONTROLS

1

02817972

BRAKE LINE

L3

1шт.

4

02818008

BRAKE LINE

R3

1шт.

7

01330897

ADAPTER

intermediate piece

2шт.

8

01330944

ADAPTER

intermediate piece

6шт.

9

02885364

CLAMP

CLIP pipe, RSGU1.5/15-W1

9шт.

10

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

7шт.

11

36267557

PLATE

1шт.

12

06334445

CAPSCREW

BOLT hexagon head, M6 x 20/8.8-A3C ISO4017

1шт.

13

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Hex

1шт.

15

03093756

LARGE PLATE

PLATE, LARGE

1шт.

16

03130566

SOLENOID

VALVE screwed

1шт.

17

03433112

ADAPTER

CONNECTOR male

2шт.

19

614-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

20

06116155

NUT,M8, Cl 8

1шт.

24

03436533

ADAPTER

CONNECTOR male, GE12-L/9/16-18UNF/ OMD

2шт.

30

02818137

LINE

brake, L4

1шт.

31

02818057

BRAKE LINE

L5

1шт.

32

02818145

BRAKE LINE

R4

1шт.

33

02818073

BRAKE LINE

R5

1шт.

35

06549266

HOSE

line

2шт.
