Запчасти Case IH 8790 (008) - RUNNING GEAR, AXLE BODY (25) - FRONT AXLE SYSTEM

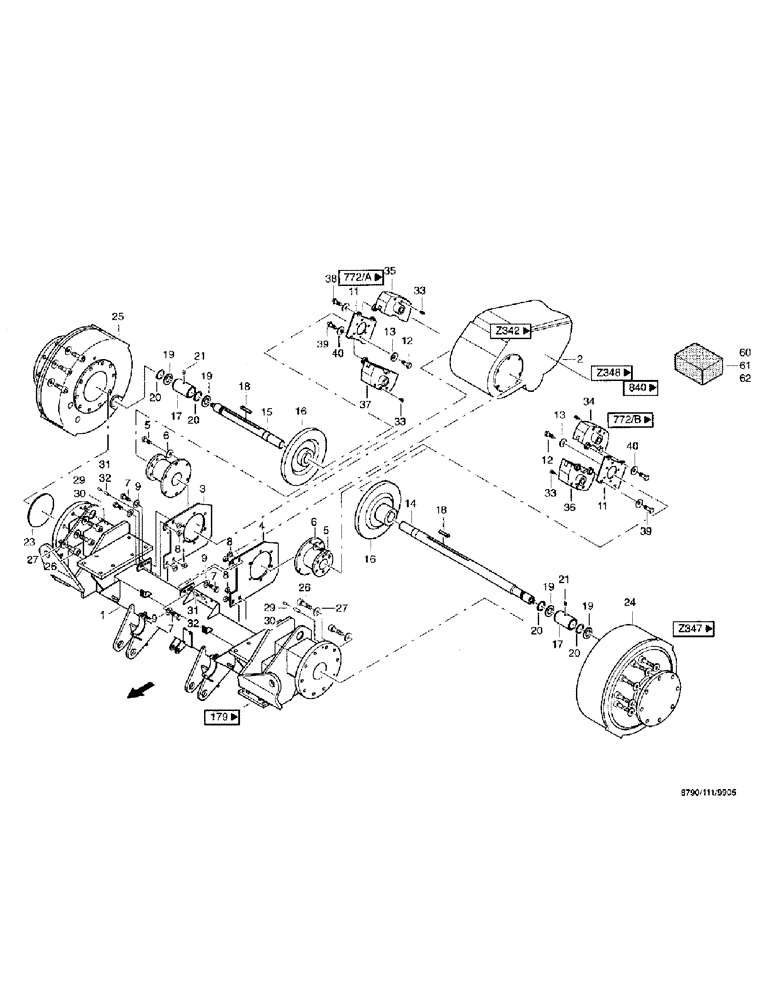

Схема запчастей Case IH 8790 - (008) - RUNNING GEAR, AXLE BODY (25) - FRONT AXLE SYSTEM
7
18
4
27
24
6
30
26
35
27
26
25
33
40
33
3
13
6
39
32
7
37
15
31
1
39
29
16
13
30
34
6
16
23
20
9
61
5
5
19
40
20
33
11
18
19
62
20
19
19
60
31
17
36
29
17
14
21
7
21
2
12
9
32
12
8
11
38
20

Артикул

Название

Примечание

Количество

1

36250452

BODY

axle

1шт.

2

03222063

TRANSMISSION

gearbox

1шт.

3

36202228

SUPPORT

PLATE gearbox, l

1шт.

4

36202236

PLATE ASSY.

gearbox, r

1шт.

5

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

6

06577011

PLATE, LOCKING

WASHER, M12

12шт.

7

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

8

100038

NUT,M12 x 1.75, Cl 8

8шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

16шт.

11

36201983

BRAKE CALIPER

CALIPER, BRAKE seat

2шт.

12

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

12шт.

13

06577011

PLATE, LOCKING

WASHER, M12

12шт.

14

36236446

SHAFT

counter, l

1шт.

15

36236454

SHAFT

counter, r

1шт.

16

03222096

BRAKE DISC

DISC, BRAKE

2шт.

17

98043084

BUSHING

2шт.

18

97031732

KEY

gib-head, 14 x 9 x 75 DIN6887 ST

2шт.

19

98039644

WASHER

8шт.

20

800-5145

SNAP RING,M45, Ext

x 2.5 FST

4шт.

21

03629381

NIPPLE, LUBE

NIPPLE grease, BM6 DIN71412

2шт.

23

36202244

CENTERING RING

2шт.

24

03222088

REDUCER

final drive l

1шт.

25

03222071

REDUCER

final drive r

1шт.

26

962-20050

HEX SOC SCREW,M20 x 50mm, Cl 10.9

Cheese-head

20шт.

27

97022016

RING, SNAP

RING SNAP locking, VSK20 DIN

20шт.

29

838-51240

LOCK PIN,M12 x 40, Slotted

2шт.

30

06162064

PIN

roll, 7 x 40 DIN7346 FST

2шт.

31

06162072

SPLIT PIN/SAFETY PIN

roll, 12 x 20 DIN7346 FST

4шт.

32

06162080

SPLIT PIN/SAFETY PIN

roll, 7 x 20 DIN7346 FST

4шт.

33

03645984

BREATHER

VALVE, k

4шт.

34

03126801

BRAKE CALIPER

CALIPER, BRAKE SADDLE k, l and o

1шт.

35

03126818

BRAKE CALIPER

CALIPER, BRAKE SADDLE k, r and o

1шт.

36

03126826

BRAKE CALIPER

CALIPER, BRAKE SADDLE k, l and u

1шт.

37

03126834

BRAKE CALIPER

CALIPER, BRAKE SADDLE k, r and u

1шт.

38

98042469

SCREW

BOLT precision, M16 x 42 D = 16.5K6 10.9 DIN61

4шт.

39

06377816

CAPSCREW

BOLT hexagon head, M16 x 1.5 x 45 ISO8676 10.9

4шт.

40

97022014

RING, SNAP

RING SNAP locking, VSK16 DIN

4шт.

60

03252823

SET OF SHOES

KIT repair

1шт.

61

03127972

GASKET KIT

set

4шт.

62

03127980

SCREW

KIT accessory

2шт.

Выбрано товаров: 40
