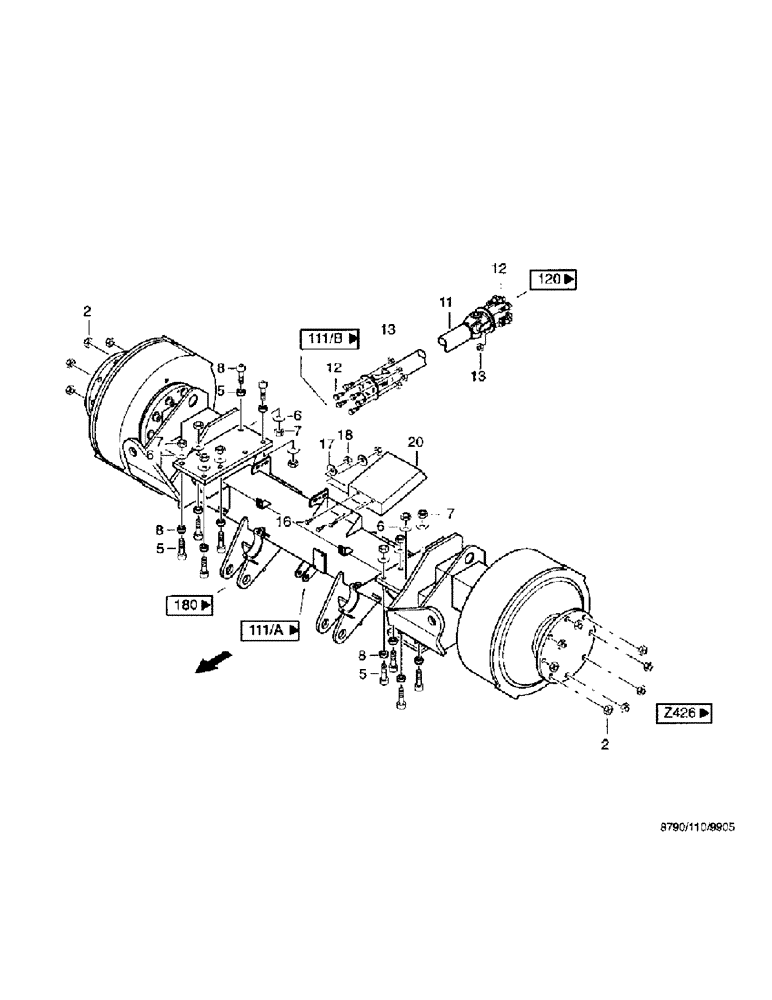

Запчасти Case IH 8790 (007) - RUNNING GEAR, DRIVING SHAFT (25) - FRONT AXLE SYSTEM

2

97022100

NUT

wheel, H22 DIN74361 10

16шт.

5

06281866

SCREW

cheese-head, M20 x 1.5 x 60 DIN912 10.9

12шт.

6

97022016

RING, SNAP

RING SNAP Locking, VSK20 DIN

12шт.

7

825-11420

NUT,M20 x 1.5, Cl 8

Hex

12шт.

8

36237391

BUSHING

SPACER

12шт.

11

03015418

SHAFT

double cardan, 4626-53-00/02 x 1900-3.1

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

13

86500689

NUT,M10 x 1.5, Cl 10

16шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

17

06577028

SPECIAL WASHER

M8

3шт.

18

825-1408

NUT,M8, Cl 8

3шт.

20

36283106

PROTECTIVE COVER

1шт.
