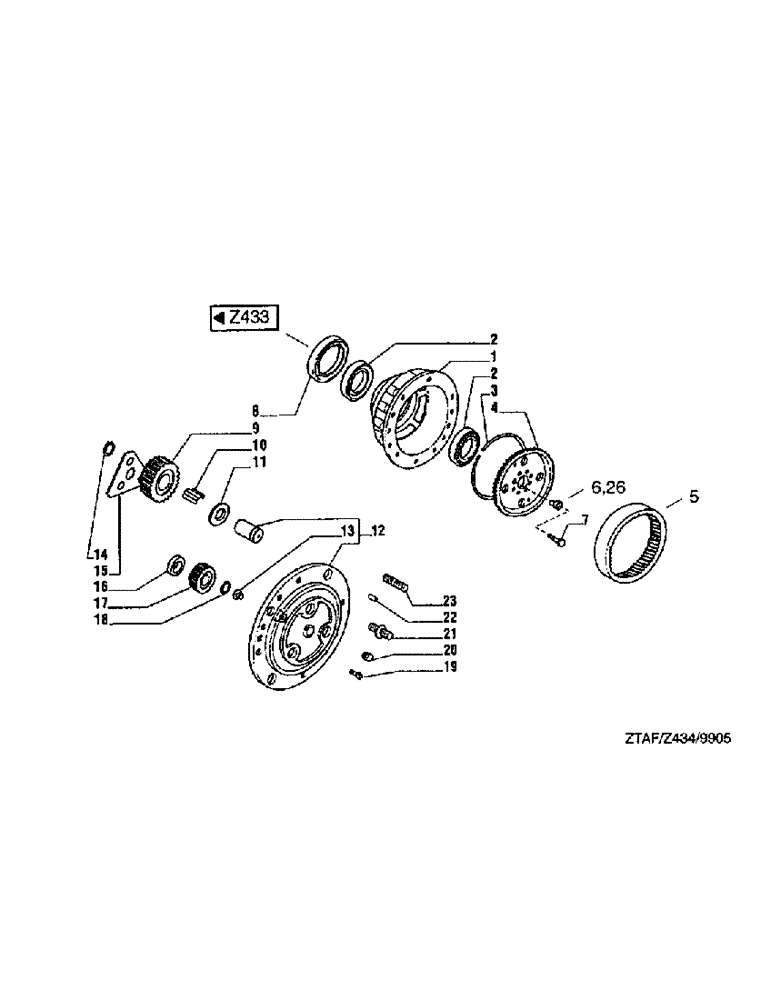

Запчасти Case IH 8790 (285) - STEERING AXLE, FINAL DRIVE (23) - FOUR WHEEL DRIVE SYSTEM

1

03224491

HUB

wheel

2шт.

2

03224506

BEARING

4шт.

3

03224514

RING

2шт.

4

03224522

HUB

2шт.

5

03224530

CROWN WHEEL

GEAR ring

2шт.

6

03224547

BUSHING

SLEEVE

2шт.

7

03224563

SCREW

8шт.

8

03224571

SEAL

shaft

2шт.

9

03224588

GEAR, PLANETARY

GEAR, PLANET

6шт.

10

03224596

NEEDLE

ROLLER

18шт.

11

03224602

DISC

pressure washer

6шт.

12

03224610

COVER

CAP

2шт.

13

03224627

VANEUM GAUGE

SCREW locking

2шт.

14

03224635

CIRCLIP

RING snap

6шт.

15

03224643

PLATE

WASHER thrust

2шт.

16

03224651

SPACER

WASHER

2шт.

17

03224668

PINION

2шт.

18

03224676

CIRCLIP

RING snap

2шт.

19

03224684

SCREW

4шт.

20

03224692

PLUG

oil

2шт.

21

03224707

STUD

BOLT wheel

4шт.

22

03224715

LARGE PIN

PIN, LARGE

4шт.

23

03224723

RHEOSTAT

BOLT wheel

12шт.

26

03224555

BUSHING

SLEEVE

6шт.
