(280) - STEERING AXLE, SPINDLE, TRACK ROD

Запчасти Case IH 8790 (280) - STEERING AXLE, SPINDLE, TRACK ROD (23) - FOUR WHEEL DRIVE SYSTEM

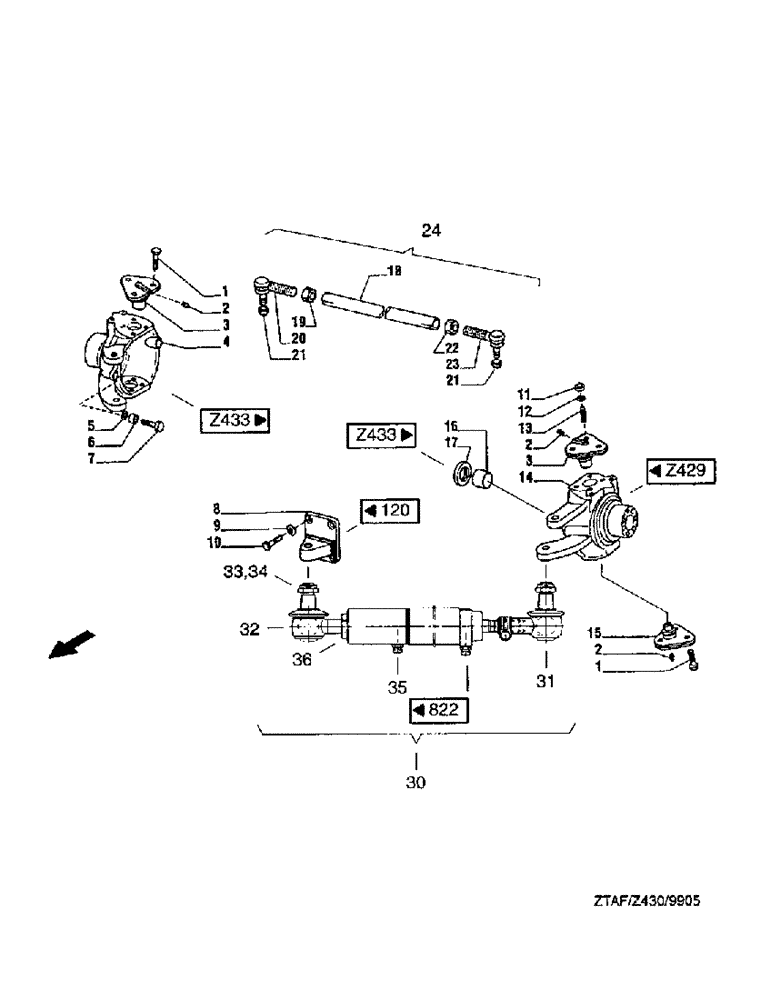

Схема запчастей Case IH 8790 - (280) - STEERING AXLE, SPINDLE, TRACK ROD (23) - FOUR WHEEL DRIVE SYSTEM
2
2
18
21
21
3
15
7
1
16
20
35
10
32
5
22
4
12
2
3
24
30
11
36
14
9
1
23
8
34
33
6
19
17
31
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

03223892

SCREW

PIN

6шт.

2

03637285

NIPPLE, LUBE

NIPPLE grease, AM6 DIN71412

4шт.

3

03223907

LARGE PIN

PIN, LARGE

2шт.

4

03223915

HOUSING

BODY axle, r

1шт.

5

03223923

WASHER

14.5 x 25 x 1

1шт.

6

03223931

BUSHING

SLEEVE

4шт.

7

614-14060

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8, Full Thd

ISO4017

4шт.

8

03223948

SUPPORT

1шт.

9

03224731

CIRCLIP

RING snap

4шт.

10

03223956

STUD

SCREW pin

4шт.

11

06213197

NUT

hex, M14 x 1.5 ISO4032

3шт.

12

03223964

WASHER

3шт.

13

03223972

SCREW

3шт.

14

03223980

HOUSING

BODY axle, l

1шт.

15

03223997

LARGE PIN

PIN, LARGE

2шт.

16

03224008

BUSHING

SLEEVE

2шт.

17

03224016

GASKET

SEAL

2шт.

18

03224024

TIE-ROD

TIE ROD track

1шт.

19

03224032

NUT

hex

1шт.

20

03224040

COUPLING

ball joint

1шт.

21

03224057

NUT

2шт.

22

03224065

NUT

hex

1шт.

23

03224073

COUPLING

ball joint

1шт.

24

03224081

TIE-ROD

TIE ROD track, k

1шт.

30

03224098

CYLINDER

k, 63/25x250

1шт.

31

03224104

COUPLING

ball joint

1шт.

32

03224112

COUPLING

ball joint

1шт.

33

06225264

SLOTTED NUT,M24 x 1.5

Castllated

2шт.

34

06403098

PIN, SPLIT (COTTER)

PIN, COTTER splint, 5 x 45 DIN94 ST

2шт.

35

03605960

SUPPORT

SOCKET, L12B-M14x1.5 DIN3901

2шт.

36

06219797

NUT

hex, M30 x 1.5 DIN936 8

1шт.
