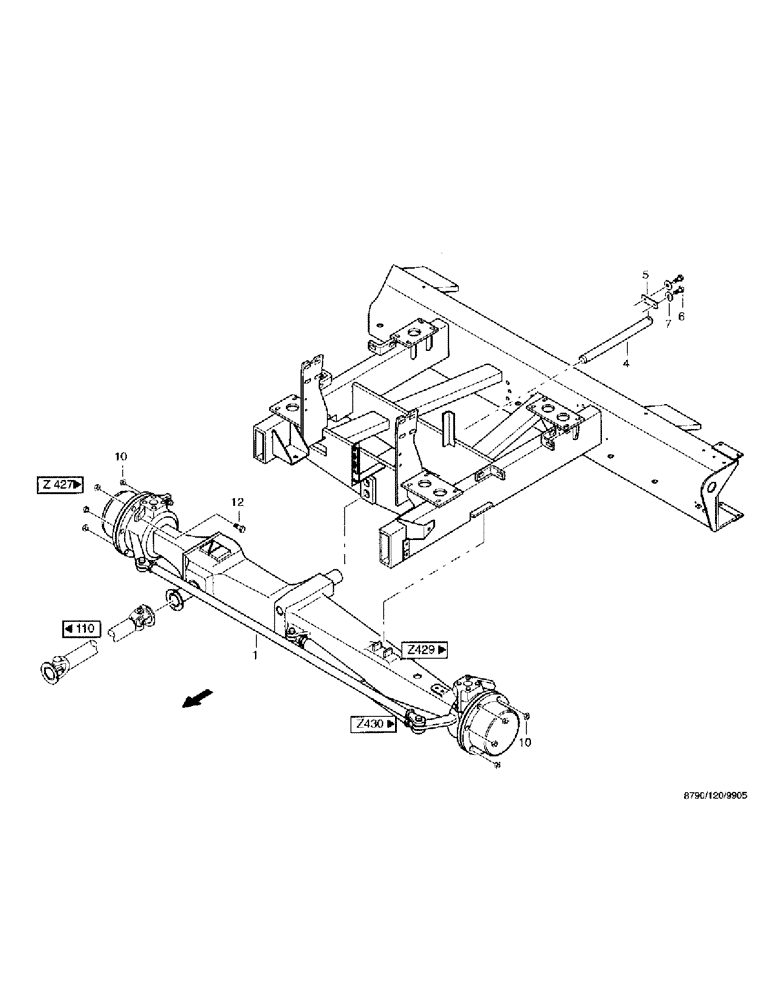

Запчасти Case IH 8790 (010) - RUNNING GEAR, HYDROSTATIC DRIVEN REAR AXLE (23) - FOUR WHEEL DRIVE SYSTEM

1

03216981

AXLE HOUSING

hydrostatic driven rear, 40KM/H

1шт.

4

36250364

LARGE PIN

PIN, LARGE

1шт.

5

36250356

RING, SNAP

RING SNAP locking against pivoting

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

06577003

SPECIAL WASHER

M10

2шт.

10

97022101

NUT

wheel, H18-10 DIN74361

16шт.

12

814-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 8.8

ISO4014

1шт.
