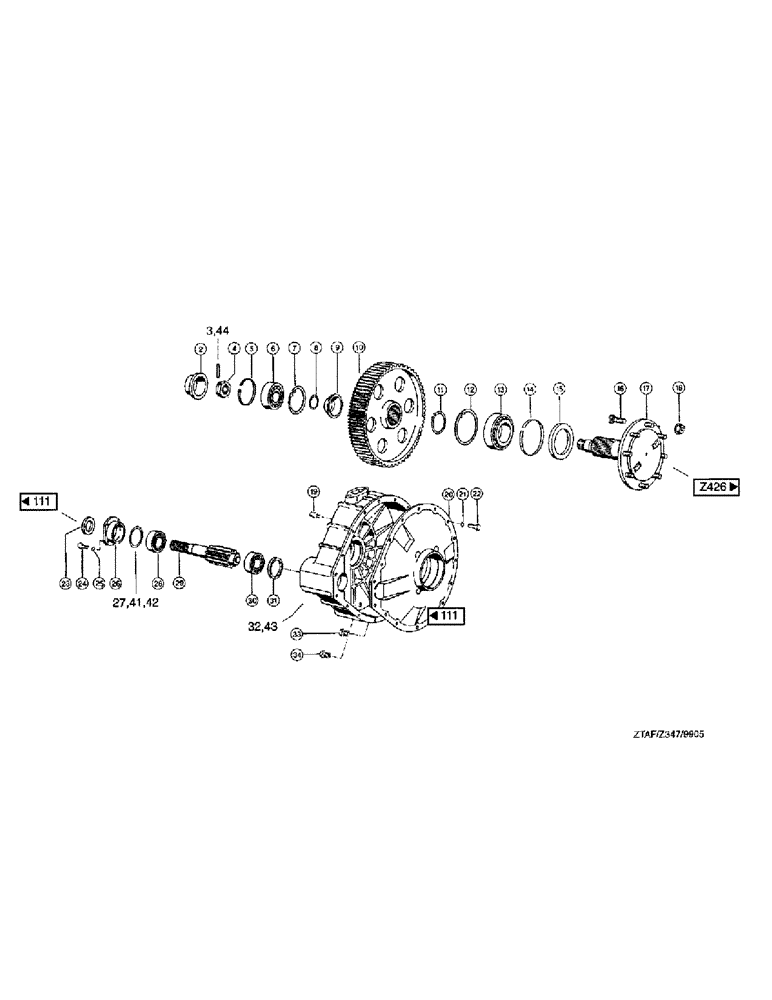

Запчасти Case IH 8790 (271) - DRIVING SHAFT, FINAL DRIVE (14) - MAIN GEARBOX & DRIVE

2

03222875

PROTECTIVE COVER

CAP

4шт.

3

838-5860

LOCK PIN,M8 x 60, Slotted

Roll, DIN1481 FST

4шт.

4

03222883

SLOTTED NUT

castllated, M42 x 1.5

4шт.

5

03222891

SPACER, RING

intermediate

4шт.

6

97061259

BEARING, ROLLER

taper, 30310 DIN720

4шт.

7

800-21110

SNAP RING,M110, Int

110 x 4 DIN472 FST

4шт.

8

06625094

SHIM

50 x 62 x 1 DIN988

2шт.

9

03222906

OIL SEAL

CONE

4шт.

10

03222914

PINION

GEAR spur, Z = 98

4шт.

11

800-5180

SNAP RING,M80 x 3mm Thk, External

80 x 4 DIN471 FST

4шт.

12

800-21150

SNAP RING,M150, Int

150 x 4 DIN472 FST

4шт.

13

97060769

BEARING, ROLLER

taper, 33020 DIN720 LE

4шт.

14

03222922

SPACER, RING

intermediate

4шт.

15

03222930

SEAL

shaft, B1 110 x 150 x 15

4шт.

16

03222947

STUD

BOLT wheel

32шт.

17

03222955

WHEEL SHAFT

4шт.

18

97022100

NUT

wheel, H22 DIN74361 10

32шт.

19

03222963

BREATHER

M10 x 1

4шт.

20

03222971

COVER

CAP

4шт.

21

06455863

WASHER, LOCK

spring, A12 DIN128 FST

68шт.

22

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

68шт.

23

01118120

PACKING RING

SEAL shaft, AS50 x 65 x 8 DIN3760 NBR

4шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

20шт.

25

06454901

WASHER, LOCK

spring, A10 DIN128 FST

20шт.

26

03222988

COVER

CAP

4шт.

27

03222996

SHIM

2шт.

28

97060761

BEARING, ROLLER

taper, 33010 DIN720

4шт.

29

03223023

PINION SHAFT

Z = 13

4шт.

30

03670936

BEARING, ROLLER

taper roller, 32208 DIN720 LE

4шт.

31

03223031

SPACER

RING

4шт.

32

03223048

SHAFT HOUSING

BODY axle, r

2шт.

33

03223064

VANEUM GAUGE

SCREW locking, M24 x 1.5

4шт.

34

03222416

PLUG

SCREW locking, M24 x 1.5

4шт.

41

03223007

SHIM

2шт.

42

03223015

SHIM

2шт.

43

03223056

SHAFT HOUSING

BODY axle, l

2шт.

44

06161754

PIN

roll, 5 x 60A DIN8752

4шт.
