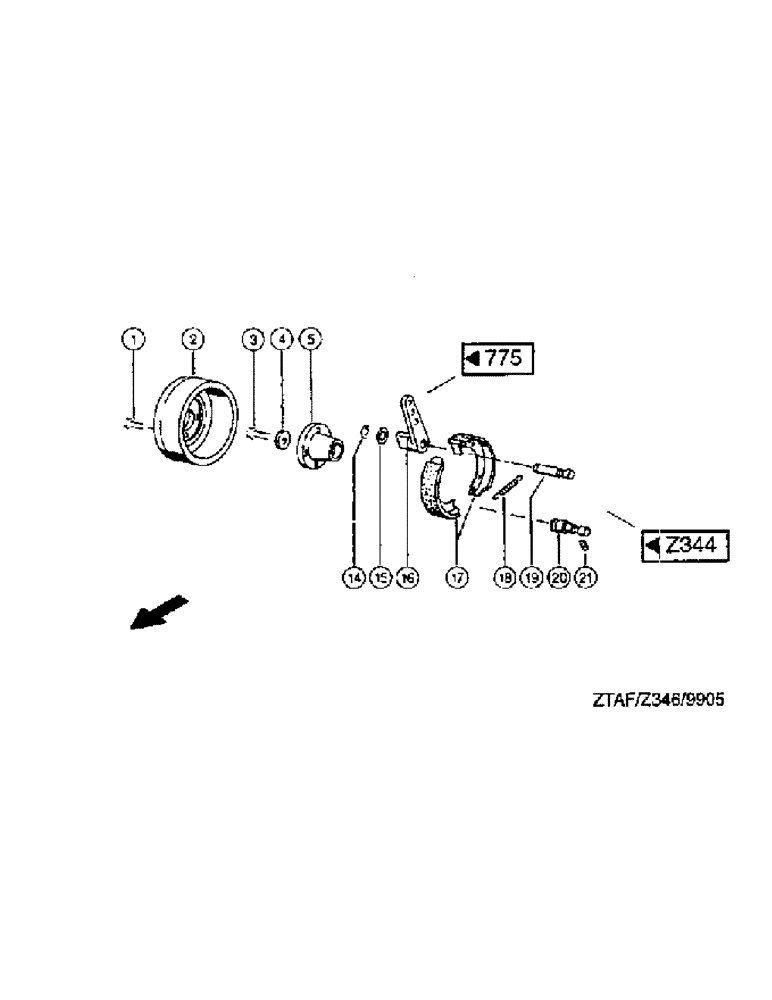

Запчасти Case IH 8790 (270) - DRIVING SHAFT, GEARBOX, PARKING BRAKE (14) - MAIN GEARBOX & DRIVE

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

2

03223072

BRAKE DRUM

DRUM, BRAKE

1шт.

3

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

4

03223080

DISC

WASHER end

1шт.

5

03223097

BRAKE DRUM

DRUM, BRAKE HUB

1шт.

14

800-1114

SNAP RING,M14, Ext

RING snap, 14 x 1 DIN471 FST

1шт.

15

03223103

WASHER

14 x 30 x 2

1шт.

16

03223111

BRAKE CAM

160 x 40 MECH.

1шт.

17

03223128

BRAKE SHOE

SHOE, BRAKE k 160 x 40 ASBESTFR.

2шт.

18

03223136

TENSION SPRING

42126

2шт.

19

03223144

LARGE PIN

PIN, LARGE 14 x 81

1шт.

20

03223152

LARGE PIN

PIN, LARGE BOLT, 20 x 72

1шт.

21

877-50816

SET SCREW,Hex Skt, M8 x 16mm, Dog Pt

threaded, M8 x 16 DIN915 45H

2шт.
