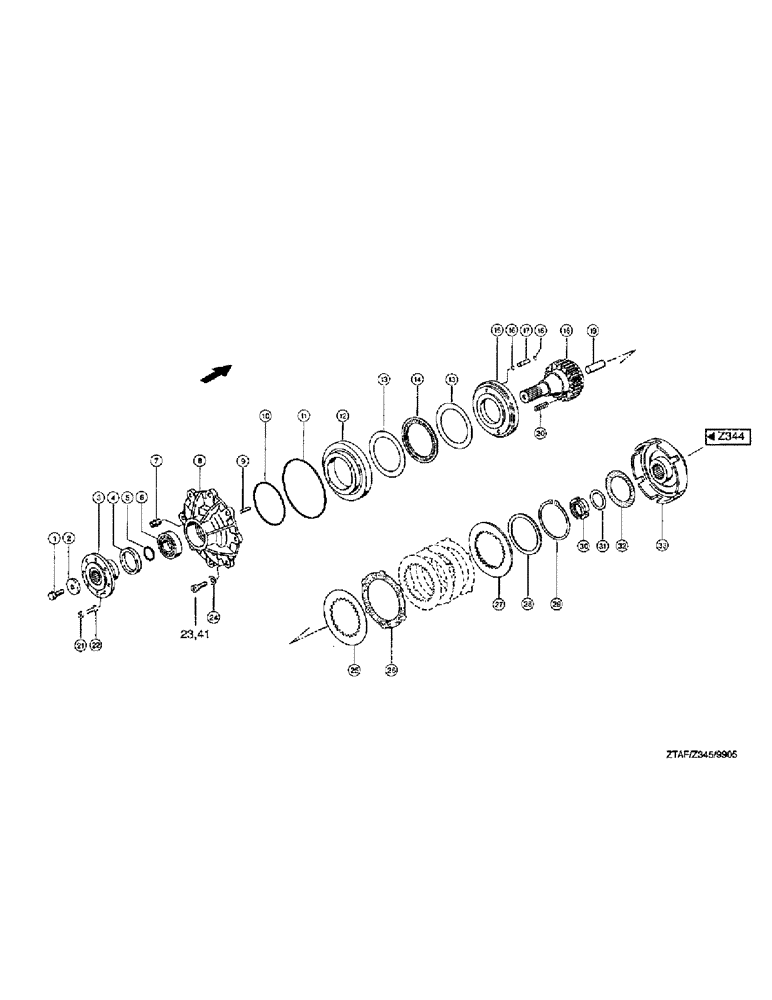

Запчасти Case IH 8790 (268) - DRIVING SHAFT, GEARBOX RIGHT ANGLE GEAR DRIVE (2) (14) - MAIN GEARBOX & DRIVE

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

2

03223080

DISC

WASHER end

1шт.

3

03223595

HOUSING

HUB output drive

1шт.

4

01125152

GASKET

shaft, A55 x 72 x 8 DIN3760 NBR

1шт.

5

01139592

O-RING

35.00 x 2.50 DIN3771 N-NBR70

1шт.

6

03652067

BALL BEARING

grooved ball, 6207 DIN625 LE

1шт.

7

03605952

SUPPORT

SOCKET, L8B-M DIN3901

1шт.

8

03223601

COVER

CAP

1шт.

9

06161746

PIN

roll, 6 x 26A DIN8752

2шт.

10

01139615

O-RING

120.00 x 4.00 DIN3771 N-NBR70

1шт.

11

01139584

O-RING

165.00 x 4.00 DIN3771 N-NBR70

1шт.

12

03223618

JACK PISTON

hydraulic

1шт.

13

03224748

WASHER

axial, AS100135

2шт.

14

03678494

SLEWING RING

BEARING needle, A x K 100135 DIN5405

1шт.

15

03223626

PLATE, THRUST

pressure

1шт.

16

06716023

WASHER, LOCK

RING snap, A8 DIN7993

2шт.

17

03223634

PIN

plain

1шт.

18

03223642

DRIVE DOG

follower, i

1шт.

19

03223650

PIN

plain

1шт.

20

03223667

COMPRESSION SPRING

pressure

15шт.

21

03222818

LOCK NUT

loc, VM10

8шт.

23

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

Cheese-head, M10 x 30 DIN912 8.8

7шт.

24

06454901

WASHER, LOCK

spring, A10 DIN128 FST

8шт.

25

03223675

WASHER

FIN, i

3шт.

26

03223683

DRIVEN PLATE

FIN, a

3шт.

27

03223691

DISC

WASHER pressure

1шт.

28

97022260

WASHER

thrust, S100 x 120 x 3.5 DIN988 FST

1шт.

29

800-11100

SNAP RING,M100, Ext

100 x 3 DIN471 FST

1шт.

30

03223706

SLOTTED NUT

grooved

1шт.

31

03223714

WASHER

thrust

1шт.

32

03222834

WASHER, THRUST

1шт.

33

03223722

DRIVE DOG

follower, a

1шт.

41

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

cheese-head, M10 x 35 DIN912 8.8

1шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.
