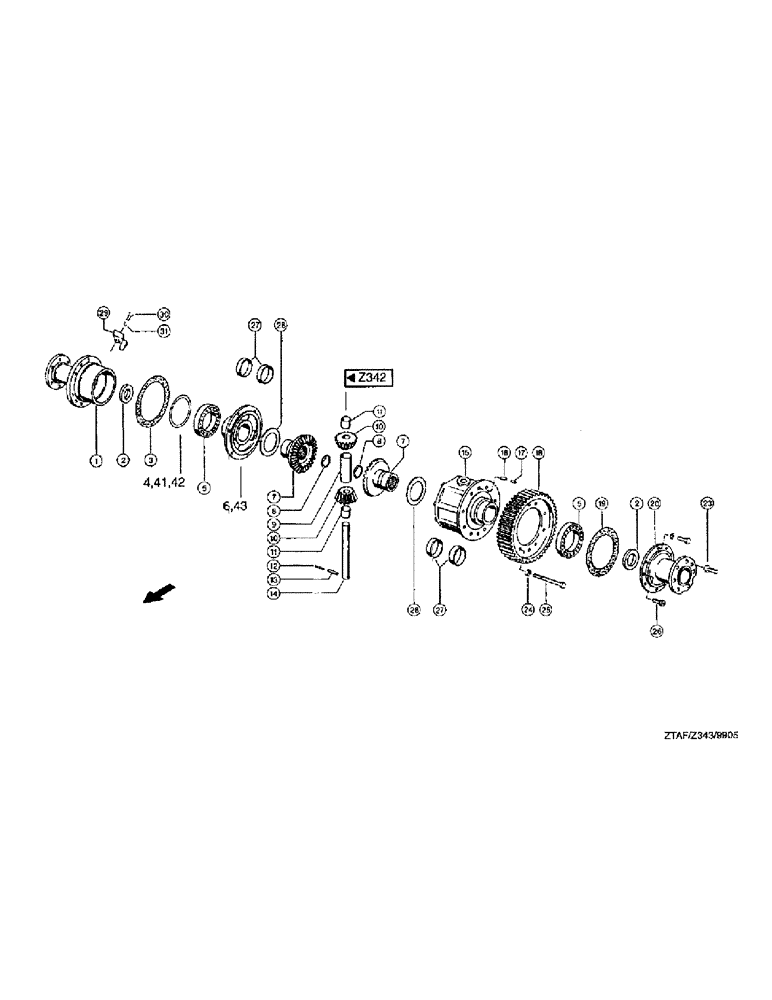

Запчасти Case IH 8790 (264) - DRIVING SHAFT, GEARBOX DIFFERENTIAL (14) - MAIN GEARBOX & DRIVE

1

03222658

SHIELD

FLANGE brake, r.h. r

1шт.

2

03222666

SEAL

shaft, BASL 48 x 72 x 12

2шт.

3

03222674

GASKET

SEAL

1шт.

4

03222682

SHIM

1шт.

5

97060119

BALL BEARING

grooved ball, 6018 DIN625

2шт.

6

03222713

FLANGE

1шт.

7

03222721

CROWN WHEEL

GEAR ring

2шт.

8

800-2142

SNAP RING,M42, Int

x 1.75 DIN 472 FST

2шт.

9

03222738

SPACER

TUBE

1шт.

10

03222746

SUN GEAR

PINION differential bevel

2шт.

11

03222754

BEARING LINER

SLEEVE

2шт.

12

838-5650

LOCK PIN,M6 x 50, Slotted

roll, 6 x 50 DIN1481 FST

1шт.

13

838-51050

LOCK PIN,M10 x 50, Slotted

roll, 10 x 50 DIN1481 FST

1шт.

14

03222762

AXLE DIFFERENTIAL

SHAFT, D = 30 L = 232

1шт.

15

03222770

HOUSING

differential, S

1шт.

16

06161738

PIN

roll, 13 x 30A DIN8752

2шт.

17

838-5830

LOCK PIN,M8 x 30, Slotted

Roll, DIN1481 FST

2шт.

18

03222787

SLEWING RING

RIM toothed, D = 297x48

1шт.

19

03222795

GASKET

SEAL

1шт.

20

03222801

SHIELD

FLANGE brake, r.h.

1шт.

23

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

24

03222818

LOCK NUT

lock, VM10

8шт.

25

06307057

CAPSCREW

BOLT hexagon head, M10 x 160 ISO4014

8шт.

26

97013680

SCREW

cheese-head, M10 x 20 DIN7984 8.8

6шт.

27

03222826

BEARING LINER

SLEEVE

4шт.

28

03222834

WASHER, THRUST

2шт.

29

03222842

DEFLECTOR

PLATE guide

1шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

31

03222850

WASHER

A6

2шт.

41

03222690

SHIM

1шт.

42

03222705

SHIM

1шт.

43

03222867

WASHER, THRUST

2шт.
