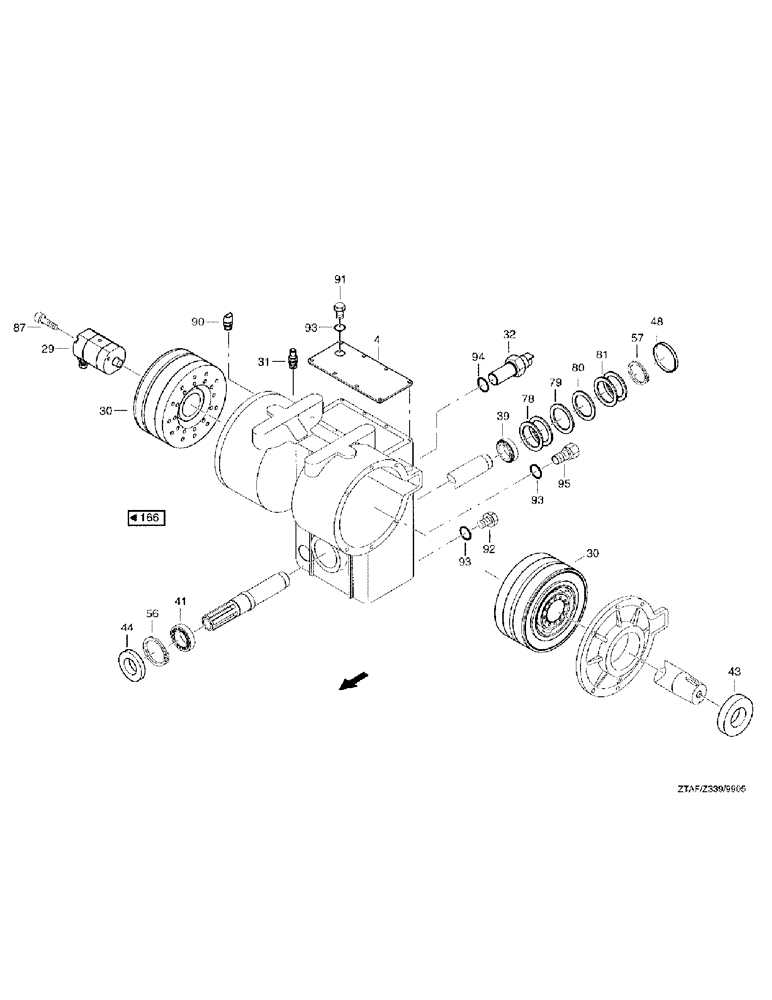

Запчасти Case IH 8790 (261) - MANUAL SHIFT & REVERSING GEAR (14) - MAIN GEARBOX & DRIVE

4

02824047

COVER

CAP

1шт.

29

03253703

PUMP

gear, P3A284V07BD58-29, A

1шт.

30

03269165

CLUTCH ASSEMBLY

electro-magnetic, KLDO 80V6

2шт.

31

02824135

FITTING

BOLTING cable, M20 x 1.5 HSK-K

2шт.

32

02824168

MIRROR, ATTACHMENT

SENSOR temperature, D M14 x 1.5

1шт.

39

03670688

BEARING, ROLLER

taper, 30208 DIN720

2шт.

41

03241138

BEARING, ROLLER

taper, 30209 DIN720

1шт.

43

01118186

PACKING RING

SEAL shaft, AS60 x 110 x 10 DIN3760 NBR

1шт.

44

01118723

PACKING RING

SEAL shaft, AS45 x 80 x 10 DIN3760 NBR

1шт.

48

02824473

FILLER CAP

closing, 80 x 8

2шт.

56

06453291

CIRCLIP

RING snap, 85 x 3/FST DIN472

1шт.

57

800-2180

SNAP RING,M80, Int

1шт.

78

06635264

COOLER, OIL

SHIM, 72 x 80 x 1 DIN988

2шт.

79

06635272

COOLER, OIL

SHIM, 72 x 80 x 0.5 DIN988

1шт.

80

06635280

COOLER, OIL

SHIM, 72 x 80 x 0.3 DIN988

1шт.

81

06635297

SHIM

72 x 80 x 0.1 DIN988

2шт.

87

864-8110

HEX SOC SCREW,M8 x 110mm, Cl 8.8

SCREW cheese-head, M8 x 110 DIN912 8.8

2шт.

90

02824223

AIR CLEANER

FILTER ventilation, M26 x 1.5

1шт.

91

06279582

SCREW

locking, M26 x 1.5 DIN910 ST

1шт.

92

06279654

SCREW

locking, M26 x 1.5 MAGNETISCH DIN910

1шт.

93

04100287

SEAL

A26 x 31 DIN7603 CU

4шт.

94

04101407

GASKET

SEAL, A14 x 18 DIN7603 CU

1шт.

95

02824360

SIGHTGLASS

GAUGE oil level, A-M26 x 1.5-BOA2-A3C DIN3169

1шт.
