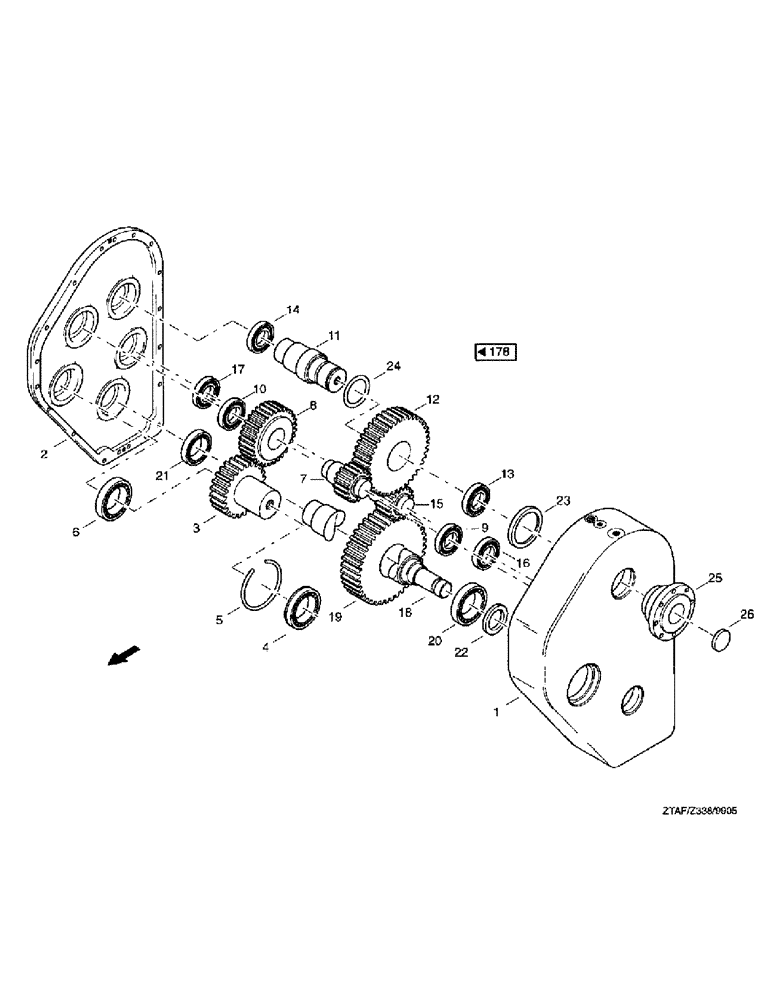

Запчасти Case IH 8790 (259) - DISTRIBUTOR GEAR (14) - MAIN GEARBOX & DRIVE

1

03254175

HOUSING

1шт.

2

02820445

HOUSING

PLATE

1шт.

3

02820461

DRIVE SHAFT

PINION

1шт.

4

03661742

BEARING

grooved ball, 6210N DIN625

1шт.

5

06716185

RING ASSY.

RING snap, 90 x 2.46 DIN5417

1шт.

6

97062619

BEARING

cylindrical roller, NJ209E DIN5412

1шт.

7

02820566

PINION SHAFT

17 x 5

1шт.

8

02820605

WHEEL GEAR

straight spur, 36 x 5

1шт.

9

97062618

BEARING

cylindrical roller, NJ210E DIN5412

1шт.

10

97062619

BEARING

cylindrical roller, NJ209E DIN5412

1шт.

11

02820613

GEAR

SHAFT involute spline

1шт.

12

02820726

WHEEL GEAR

straight spur, 45 x 5

1шт.

13

03683387

BEARING, ROLLER

cylindrical, NJ210 DIN5412

1шт.

14

97060310

BALL BEARING

grooved ball, 6210 DIN625

1шт.

15

02820734

GEAR

straight spur, 17 x 5

1шт.

16

97062619

BEARING

cylindrical roller, NJ209E DIN5412

1шт.

17

03652122

BEARING

grooved ball, 6209 DIN625

1шт.

18

02820750

DRIVE SHAFT

1шт.

19

02820767

WHEEL GEAR

straight spur, 50 x 5

1шт.

20

97060310

BALL BEARING

grooved ball, 6210 DIN625

1шт.

21

03661767

BALL BEARING

grooved ball, 6010 DIN625

1шт.

22

02820806

SEAL

shaft, Ü45 x 72 x 8

1шт.

23

02820855

SEAL

shaft, Ü60 x 80 x 8

1шт.

24

02820775

O-RING

42 x 5

1шт.

25

03254183

FLANGE

propeller shaft

1шт.

26

02820863

DISC

WASHER end, D14 x 50

1шт.
