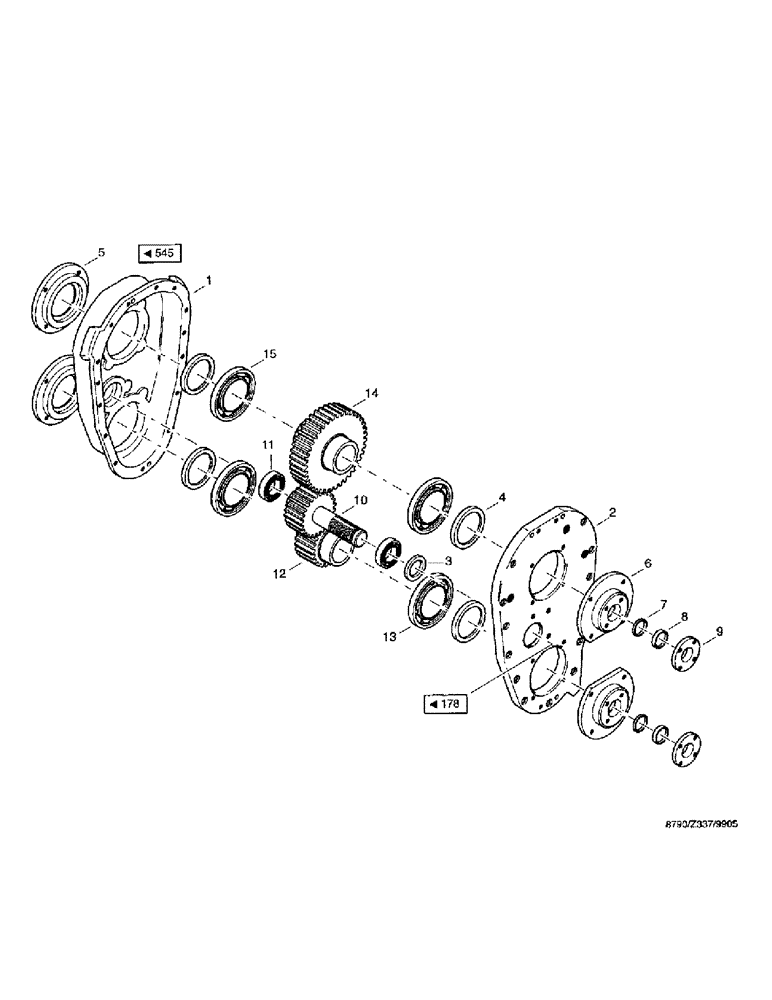

Запчасти Case IH 8790 (258) - GEARBOX, ROLL TOP (14) - MAIN GEARBOX & DRIVE

1

03254167

HOUSING

2шт.

2

02819982

HOUSING

PLATE

2шт.

3

01118145

PACKING RING

SEAL shaft, AS35 x 62 x 7 DIN3760 NBR

2шт.

4

01118081

PACKING RING

SEAL shaft, AS80 x 100 x 10 DIN3760 NBR

8шт.

5

02819990

GASKET

CAPE seal

4шт.

6

02820002

VANEUM GAUGE

COVER

4шт.

7

02820051

TENSIONER

ELEMENT

4шт.

8

02820068

BUSHING

SPACER, 35 DB

4шт.

9

02820172

FLANGE

hub

4шт.

10

02820180

PINION SHAFT

19 x 5

2шт.

11

03652067

BALL BEARING

grooved ball, 6207 DIN625 LE

4шт.

12

02820197

WHEEL GEAR

straight spur, 25 x 5

2шт.

13

03661734

BEARING ASSY

grooved ball, 16016 DIN625

4шт.

14

02820211

WHEEL GEAR

straight spur, 48 x 5

2шт.

15

03661734

BEARING ASSY

grooved ball, 16016 DIN625

4шт.
